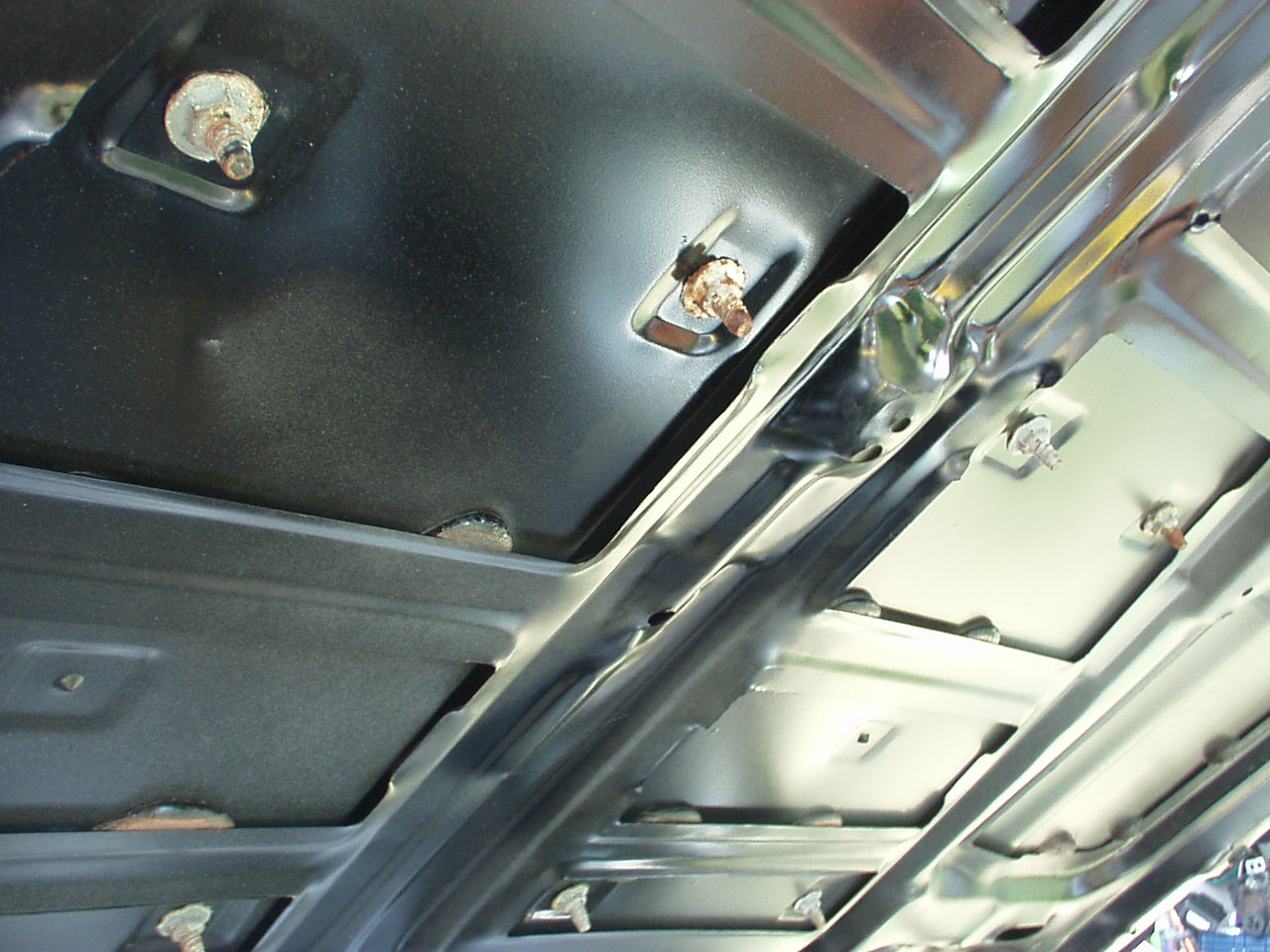

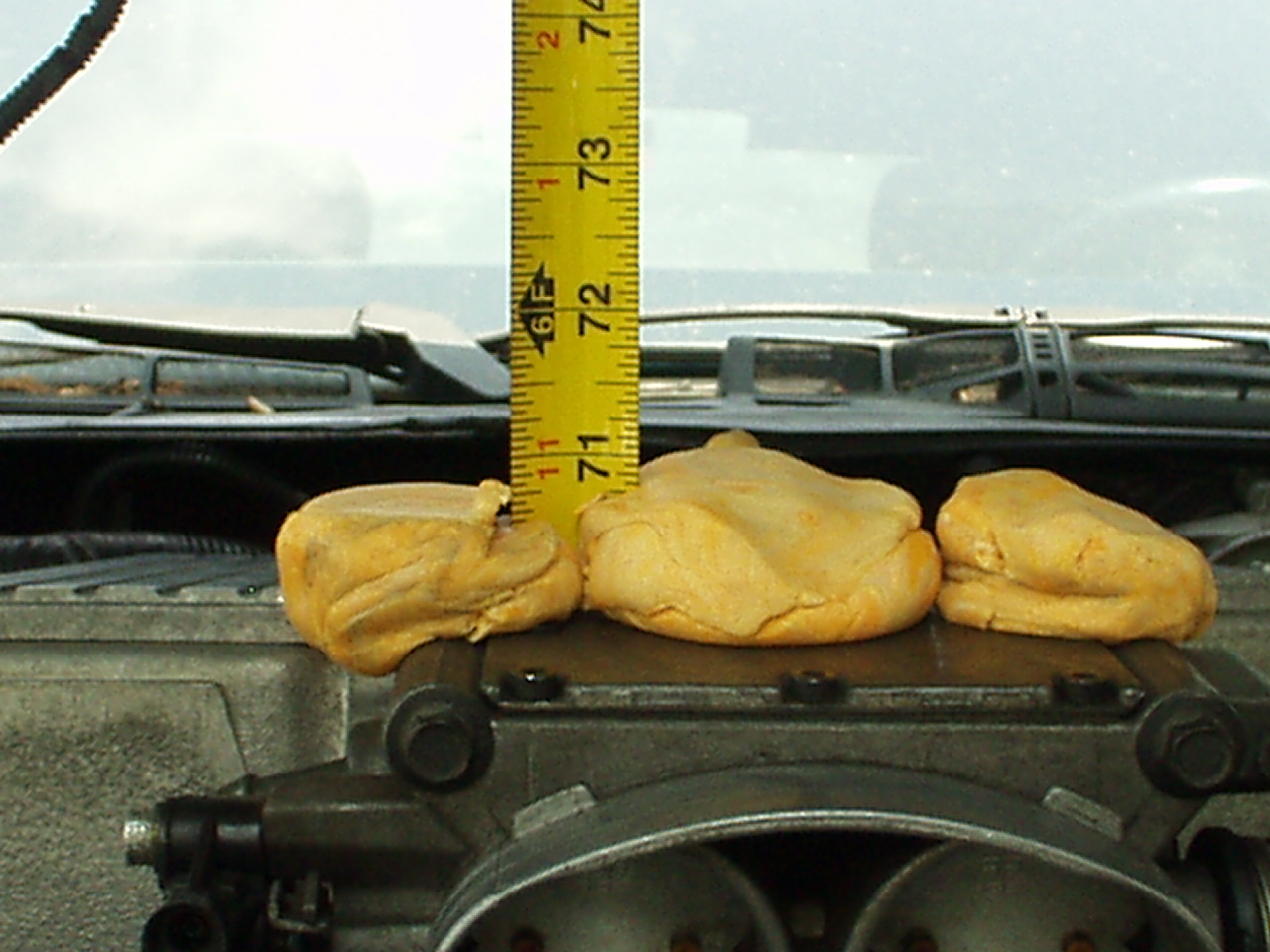

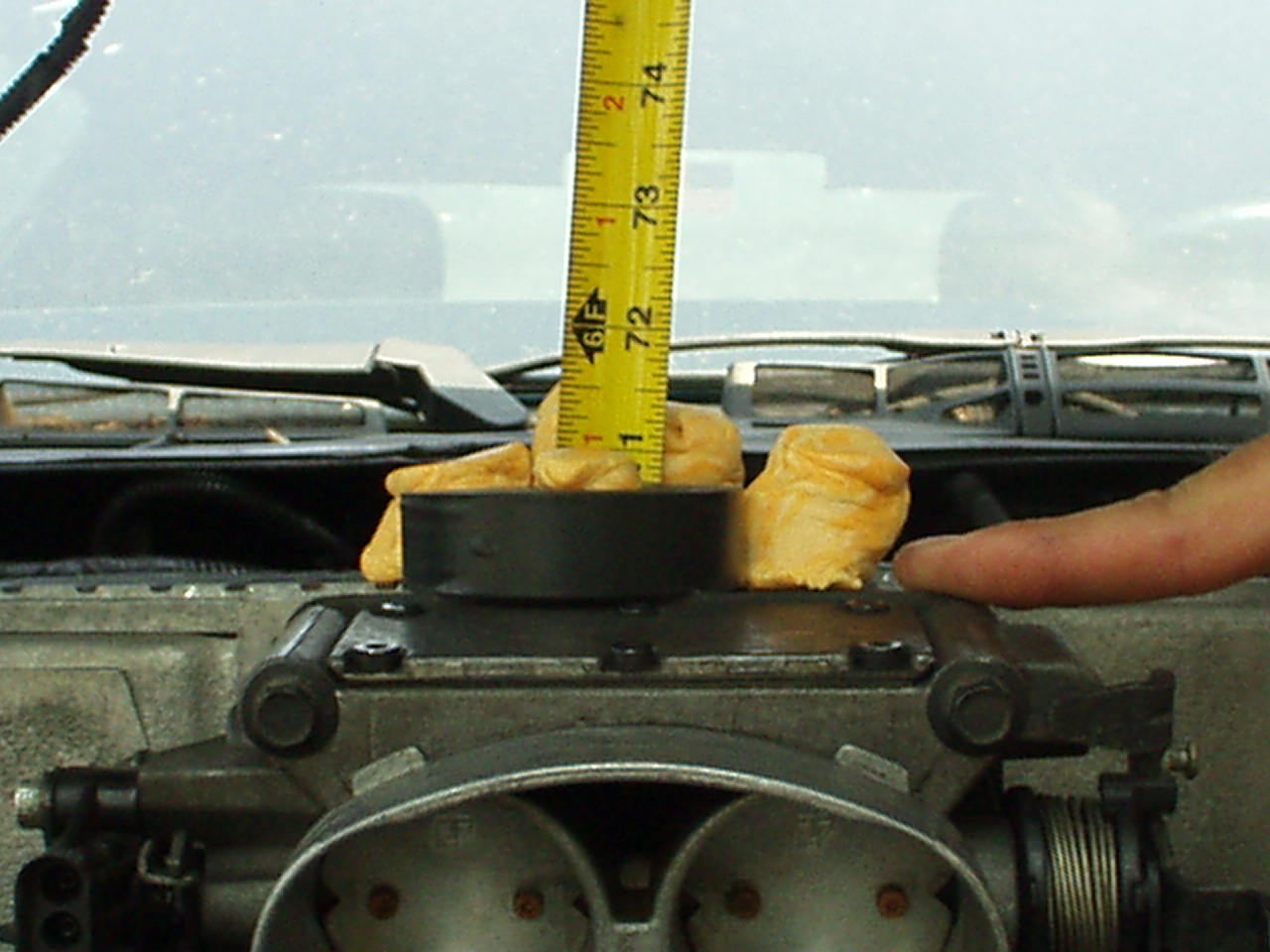

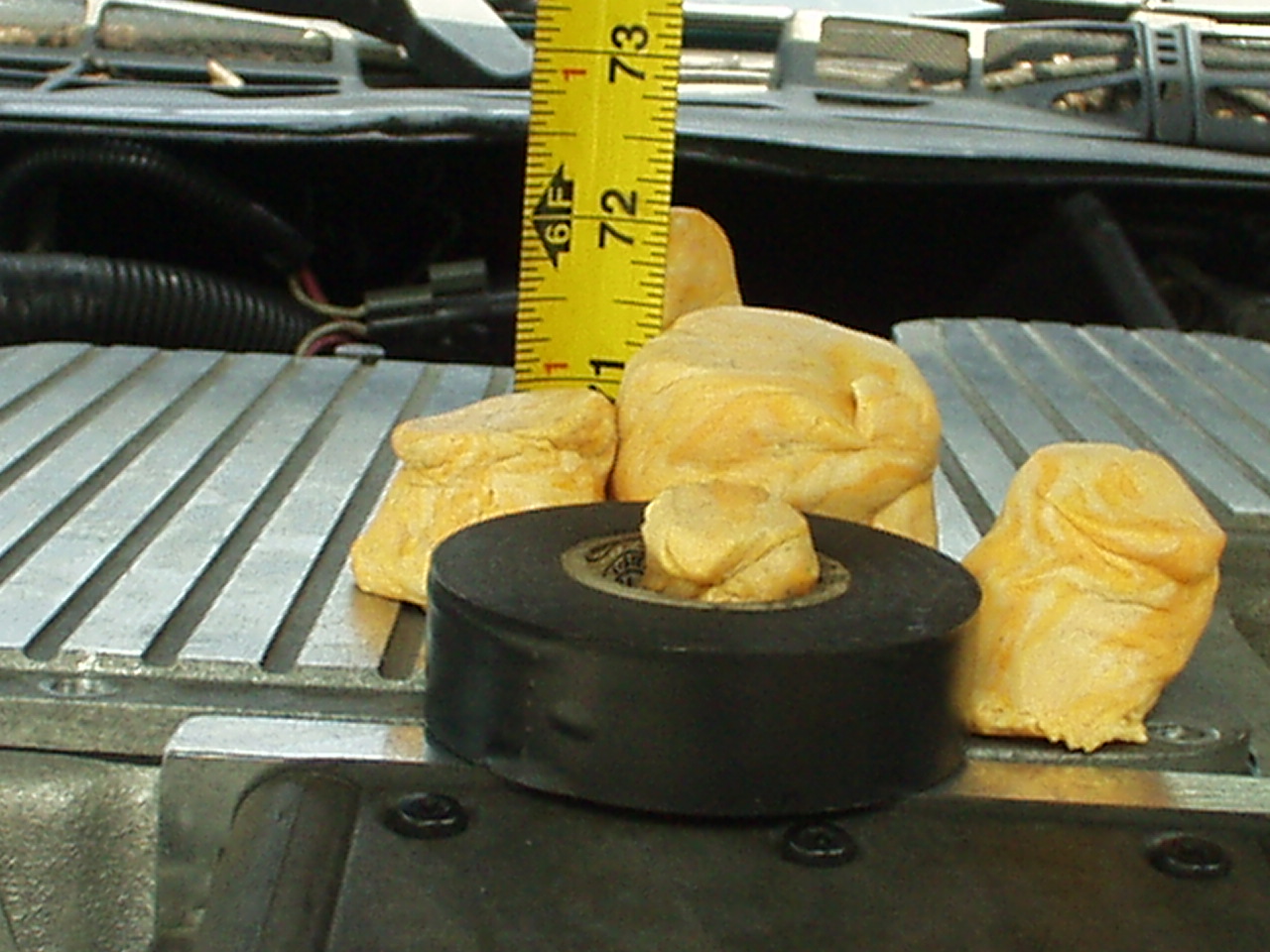

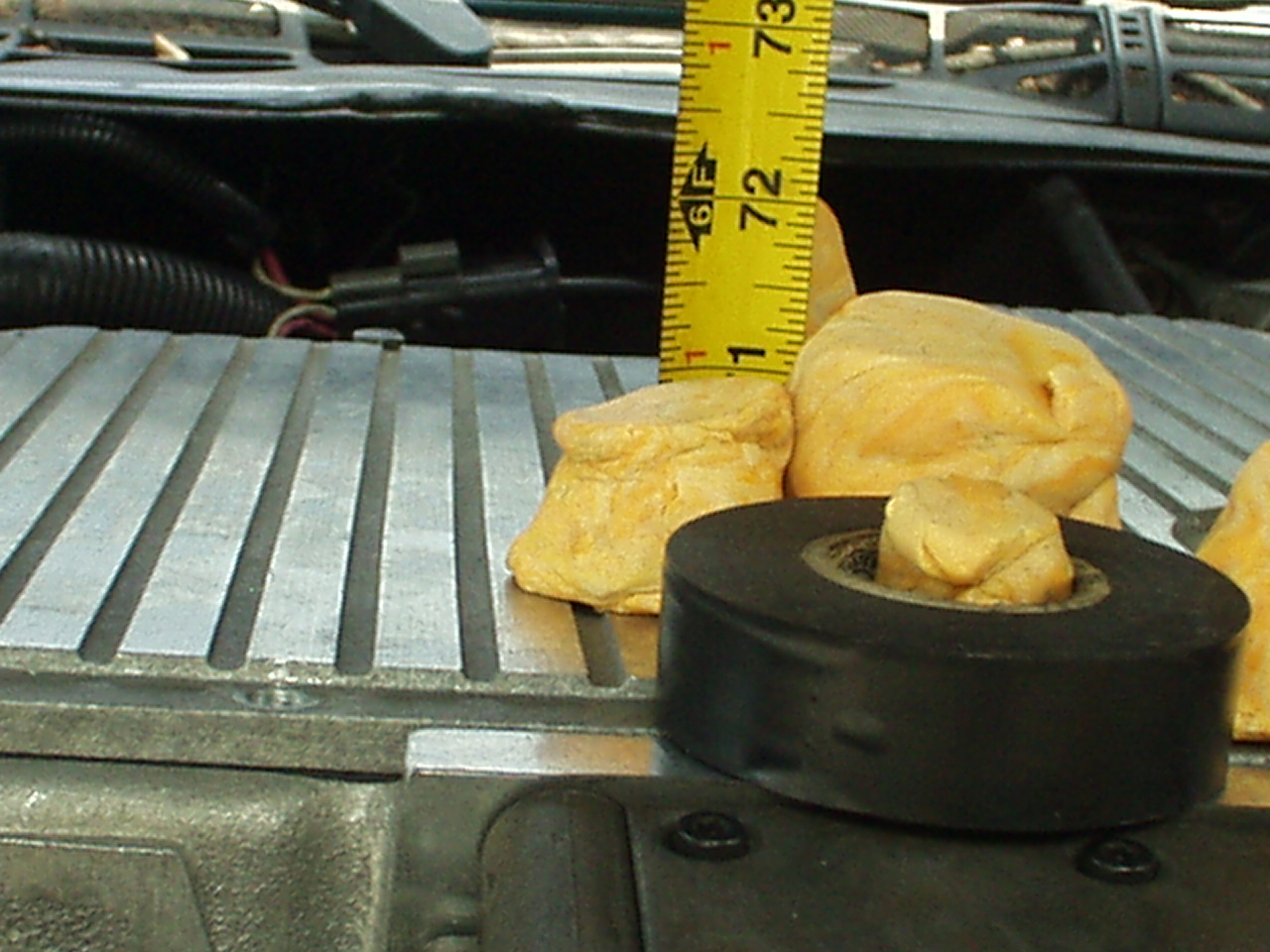

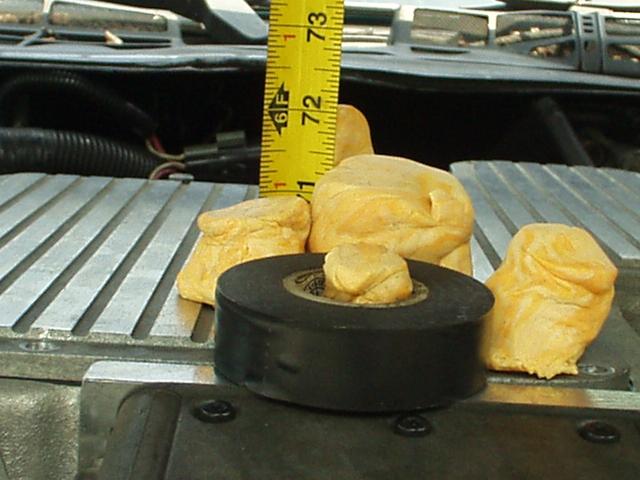

The clay* pics were done on a '92 Z28 with a SuperRam intake which measures exactly 8.5 inches from the front block/intake gap, to the top of the throttle-body. The pictures should hopefully show that a 9.5" intake is about the maximum size that will fit under a stock Z28 hood. (Still some clearancing of the hood braces is needed for any intake over about 9 inches)

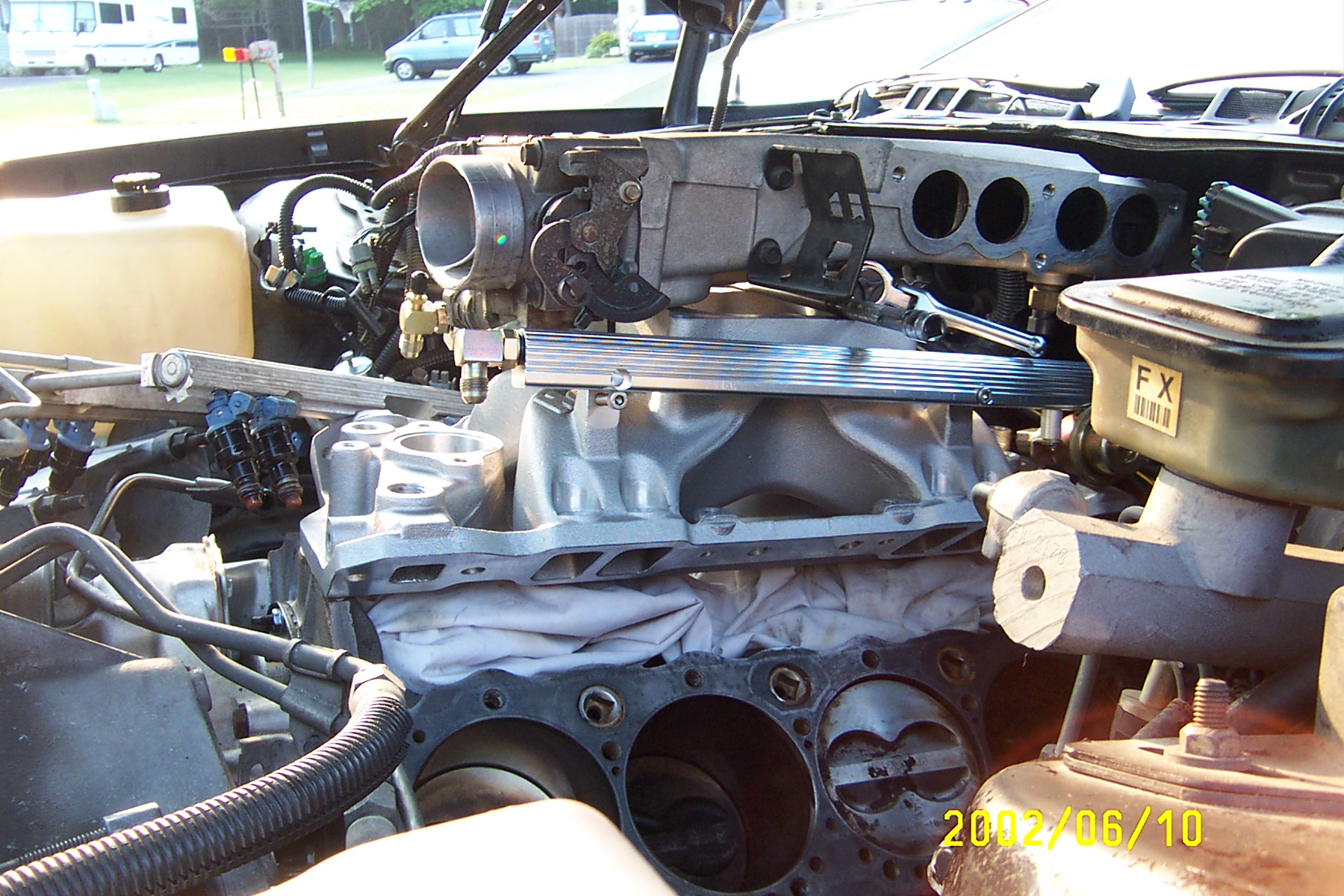

DHS_mockup

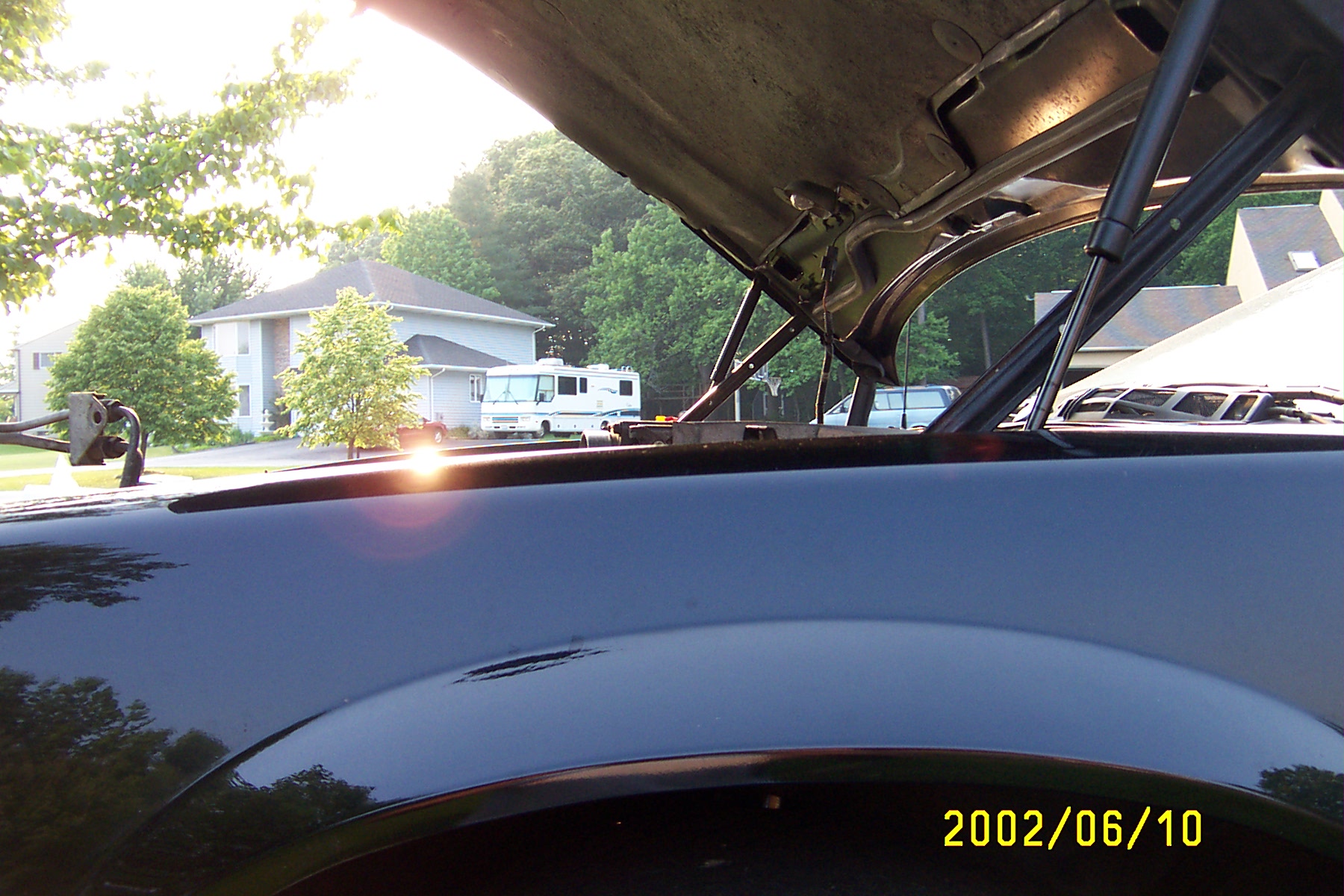

DHS_sightline1

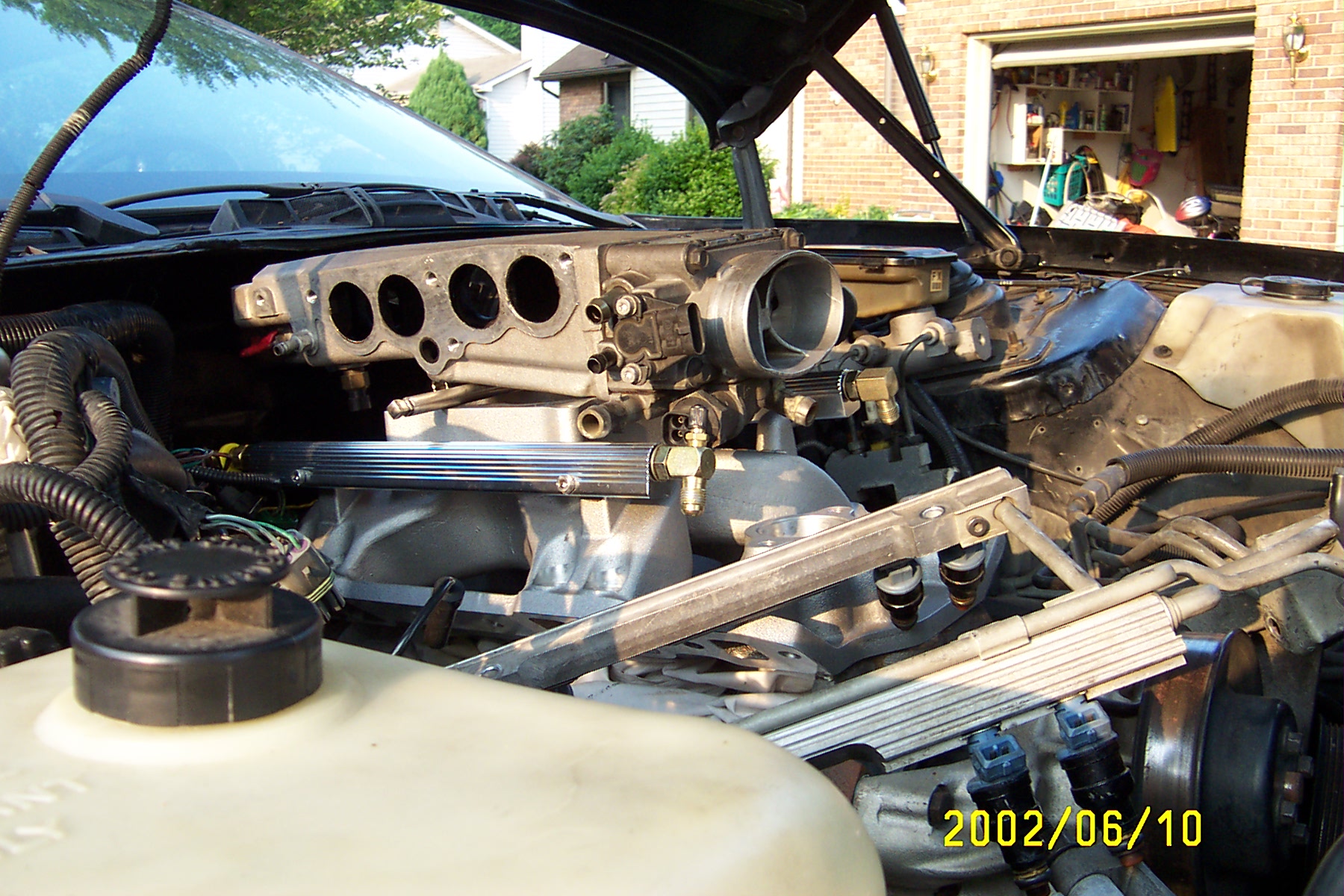

PHS_mockup

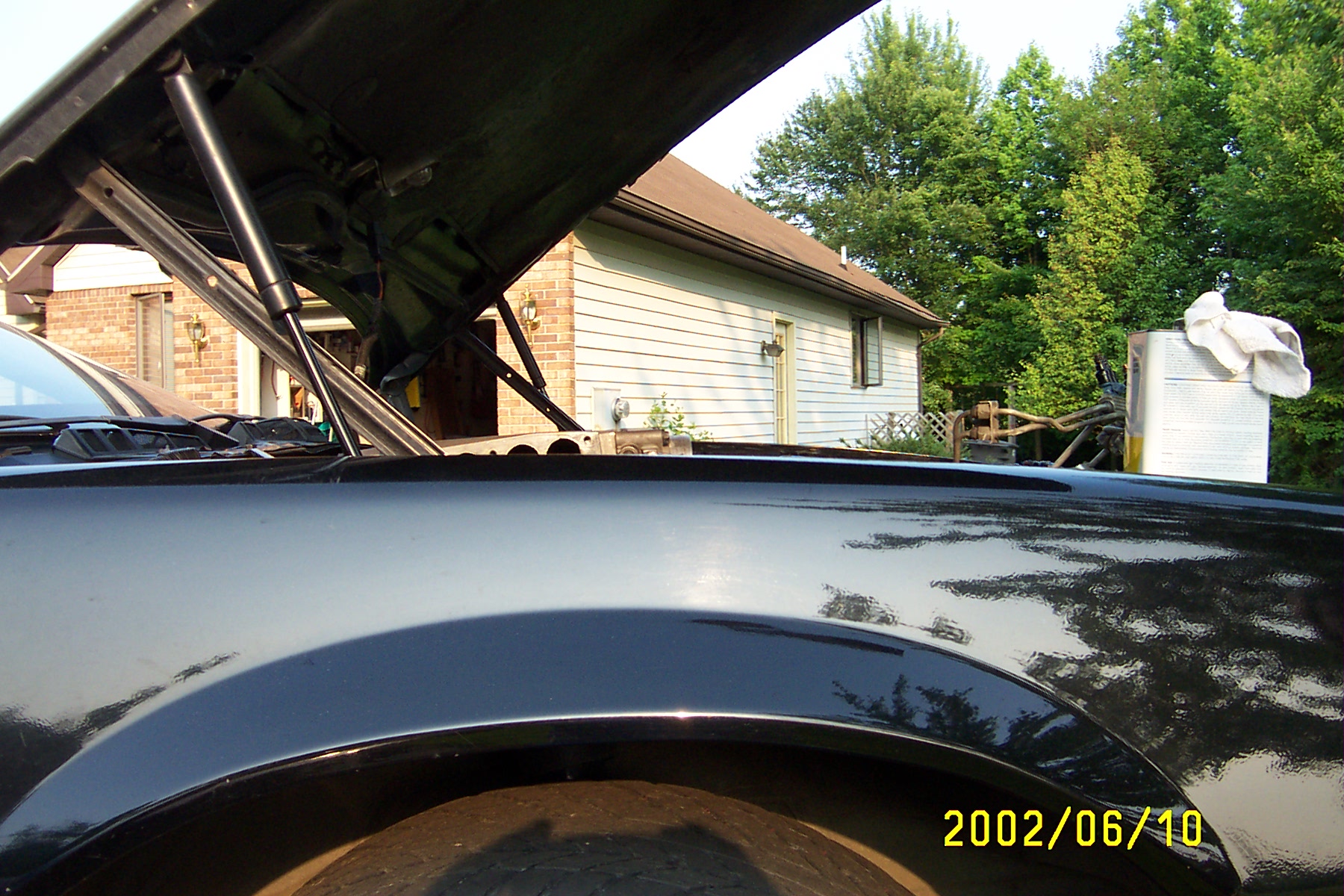

PHS_sightline1

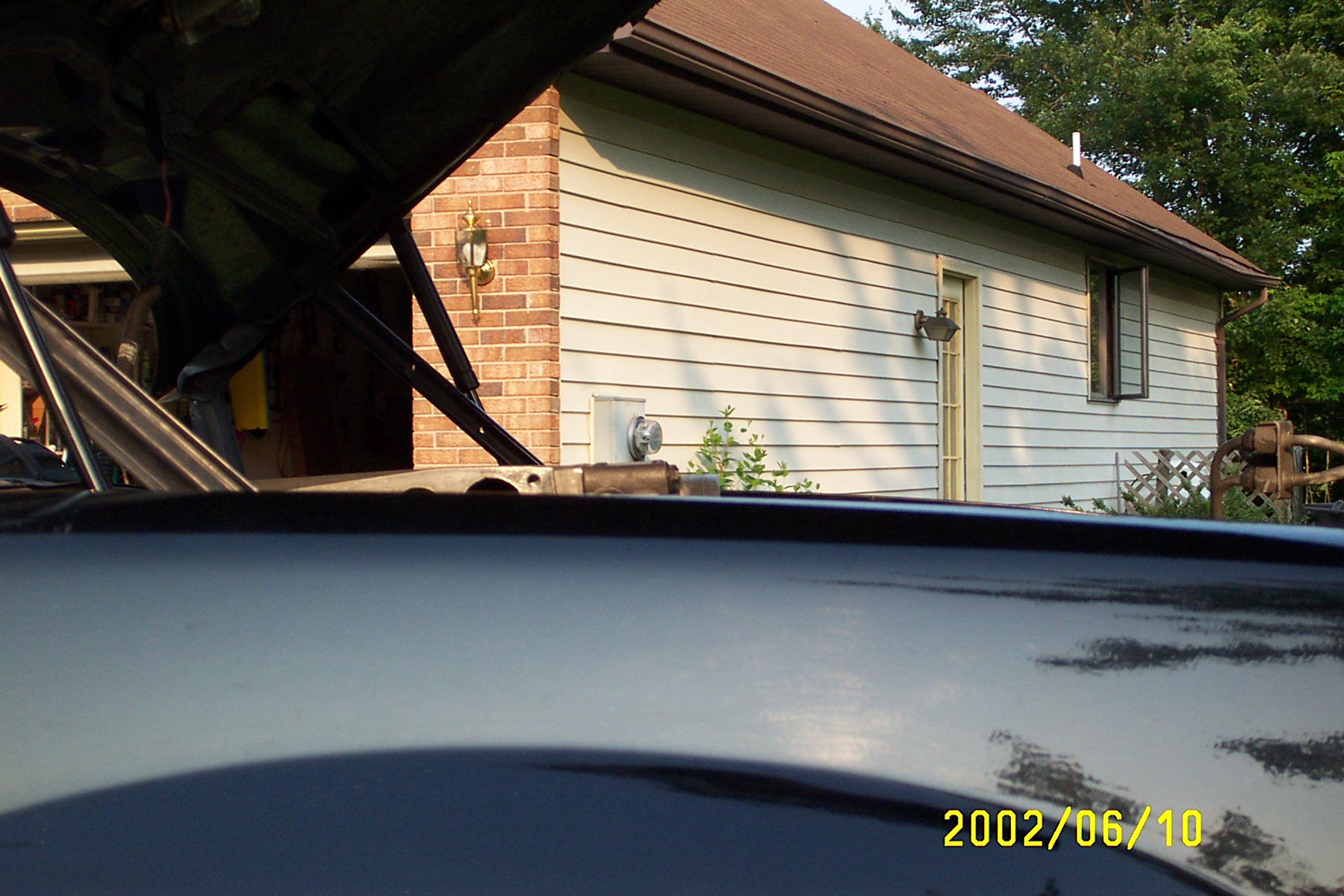

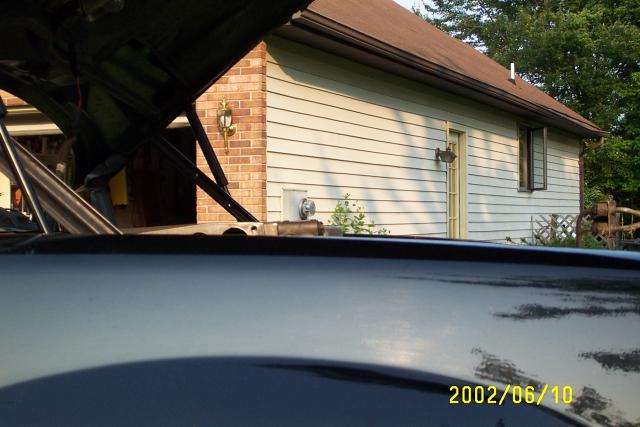

PHS_sightline2


clay1


clay2


clay3


clay4


clay5

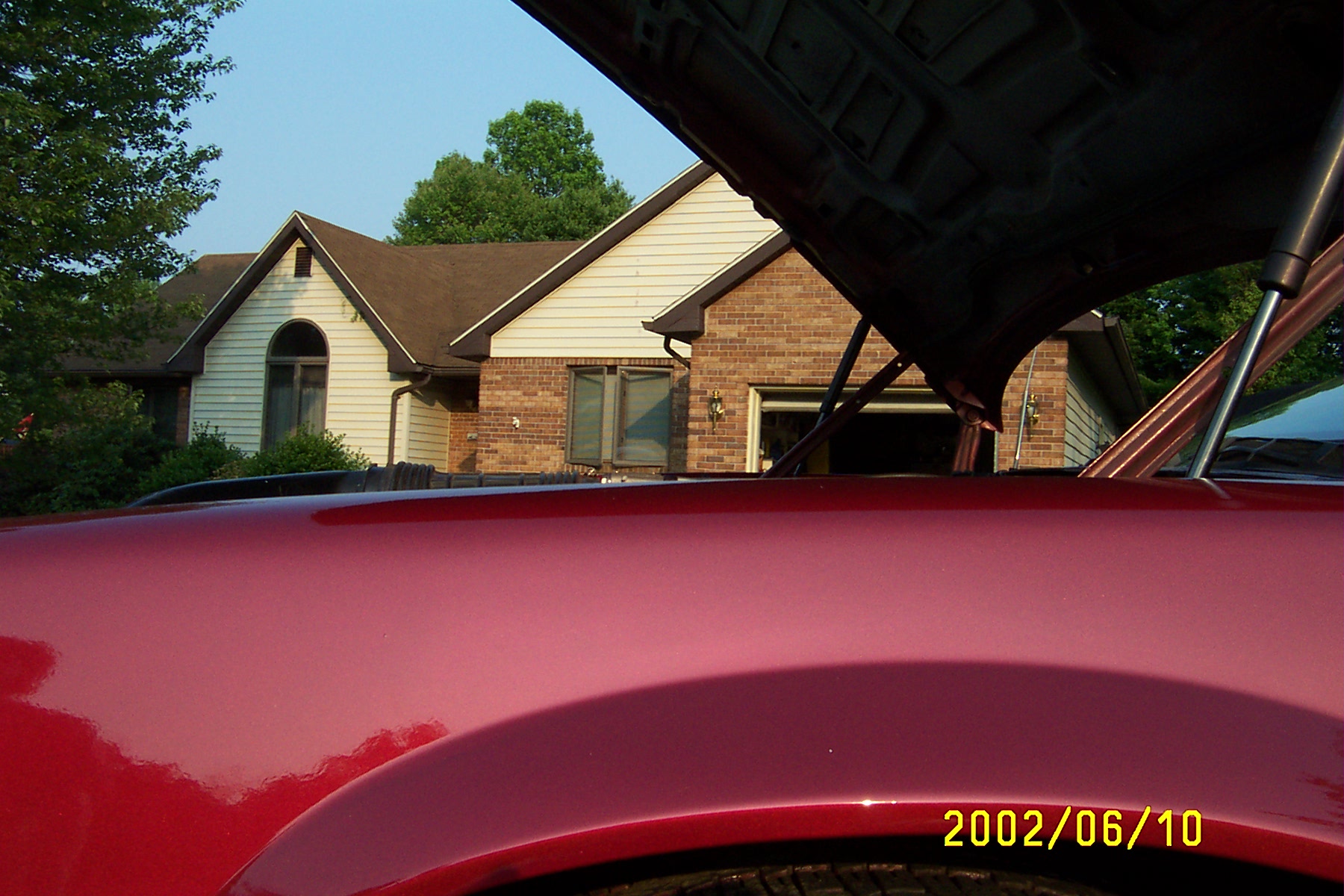

stock_sightline
