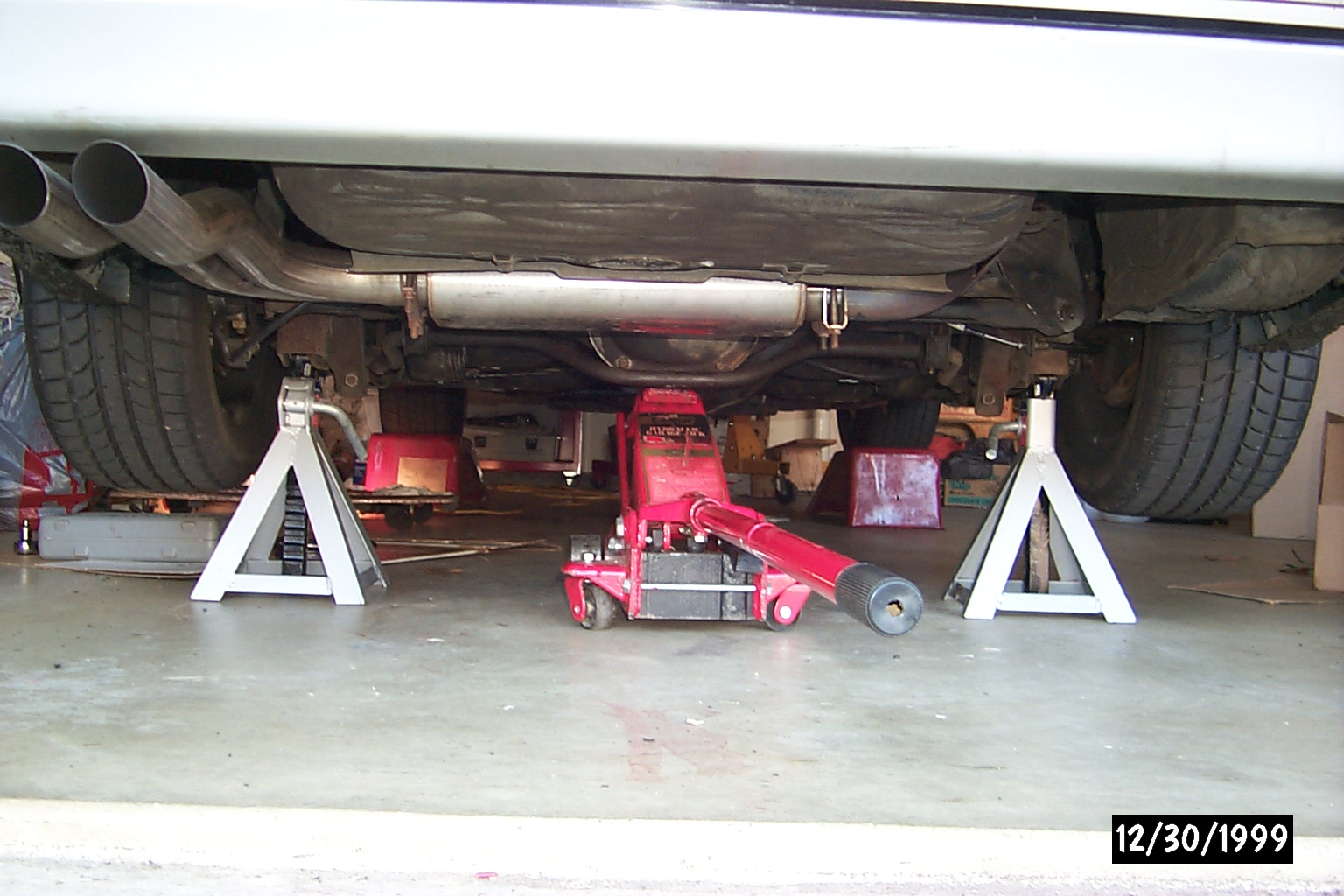

When my rear was rebuilt after the accident, I had the shop install 3.73 gears, replacing the stock 3.23 ratio. I followed the advice of the FAQ of www.thirdgen.org and the Tech Central article Speedometer Gear Swap for 700R4 Transmissions and ran into a couple of small problems. One major problem is that all of the part numbers given in the FAQ are for the Electronic Speedo cars. If you have a mechanical speedo cable (like mine) you'll have to check with the dealer to get the correct part numbers for your trans. The other "problem" I had was I was blindly following the Tech Article for changing speedo gears, and had removed my drive shaft before realizing that I only needed to change my DRIVEN gear, not the DRIVE gear. The major portion of the work is if you have to change your DRIVE gear, the DRIVEN gear change is trivial.. I spent an extra hour setting up the proper jacking of the car, removing the drive shaft, etc. and then just had to reassemble it all again... YMMV..
Click on any image below for an enlargement (~500K) image.

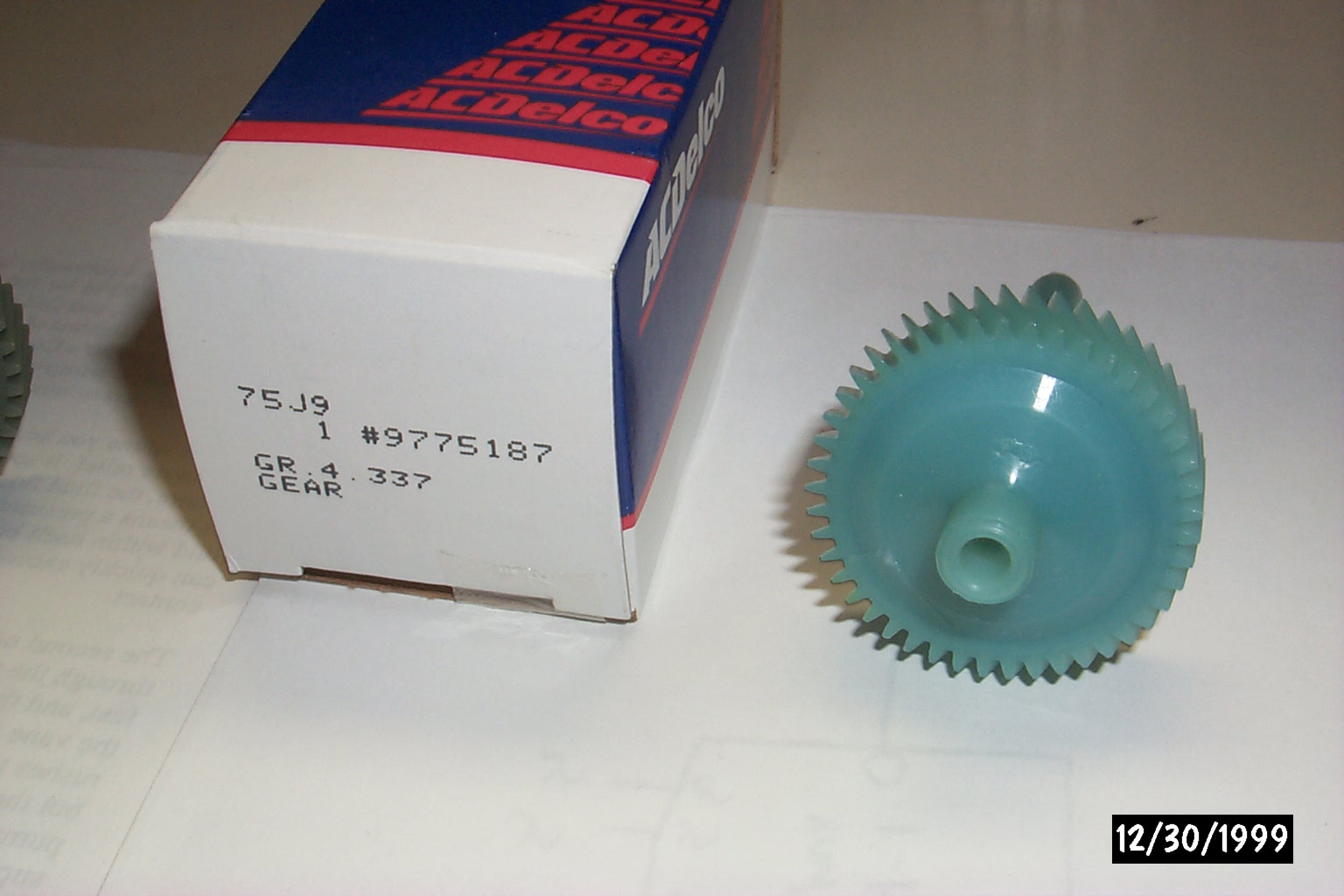

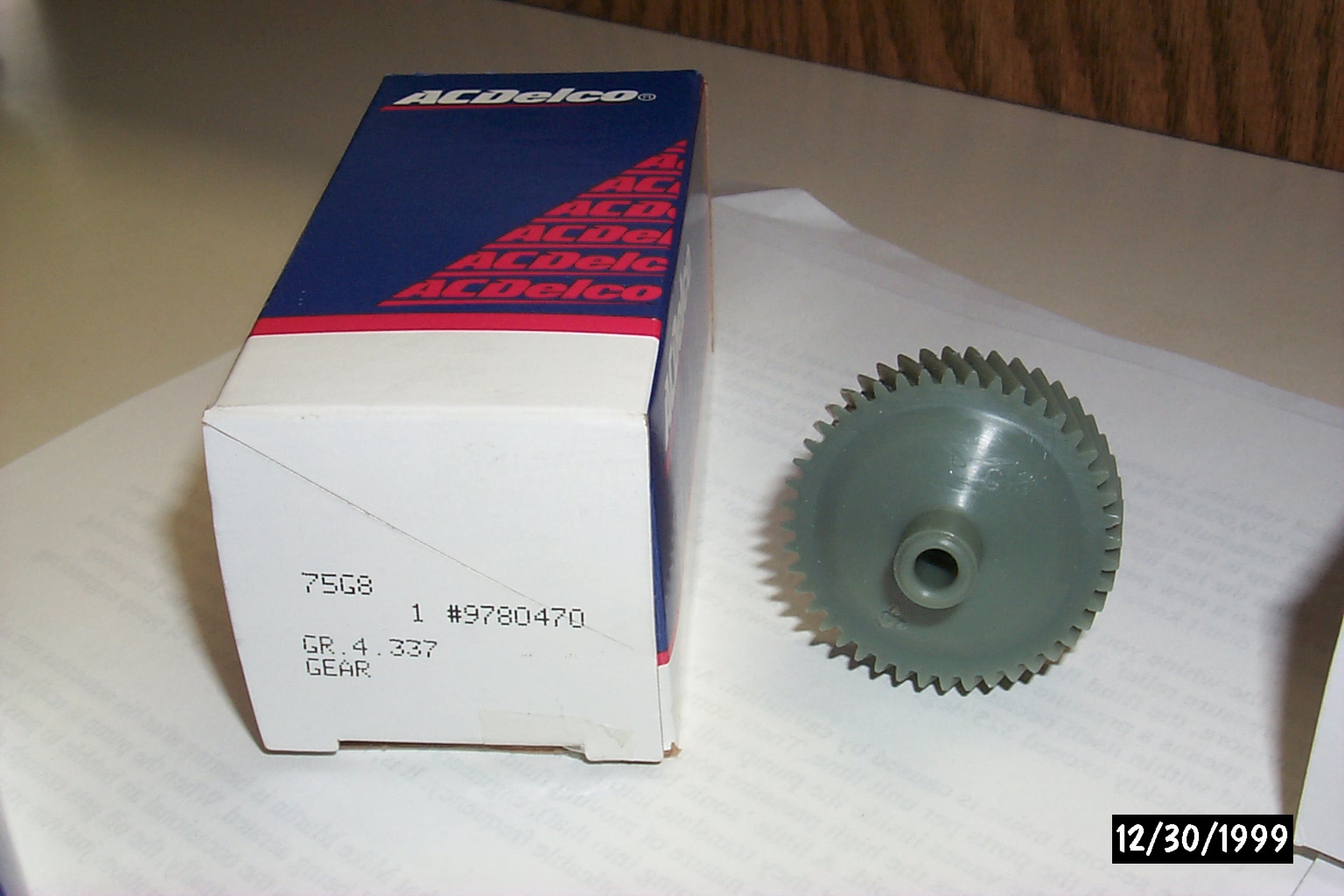

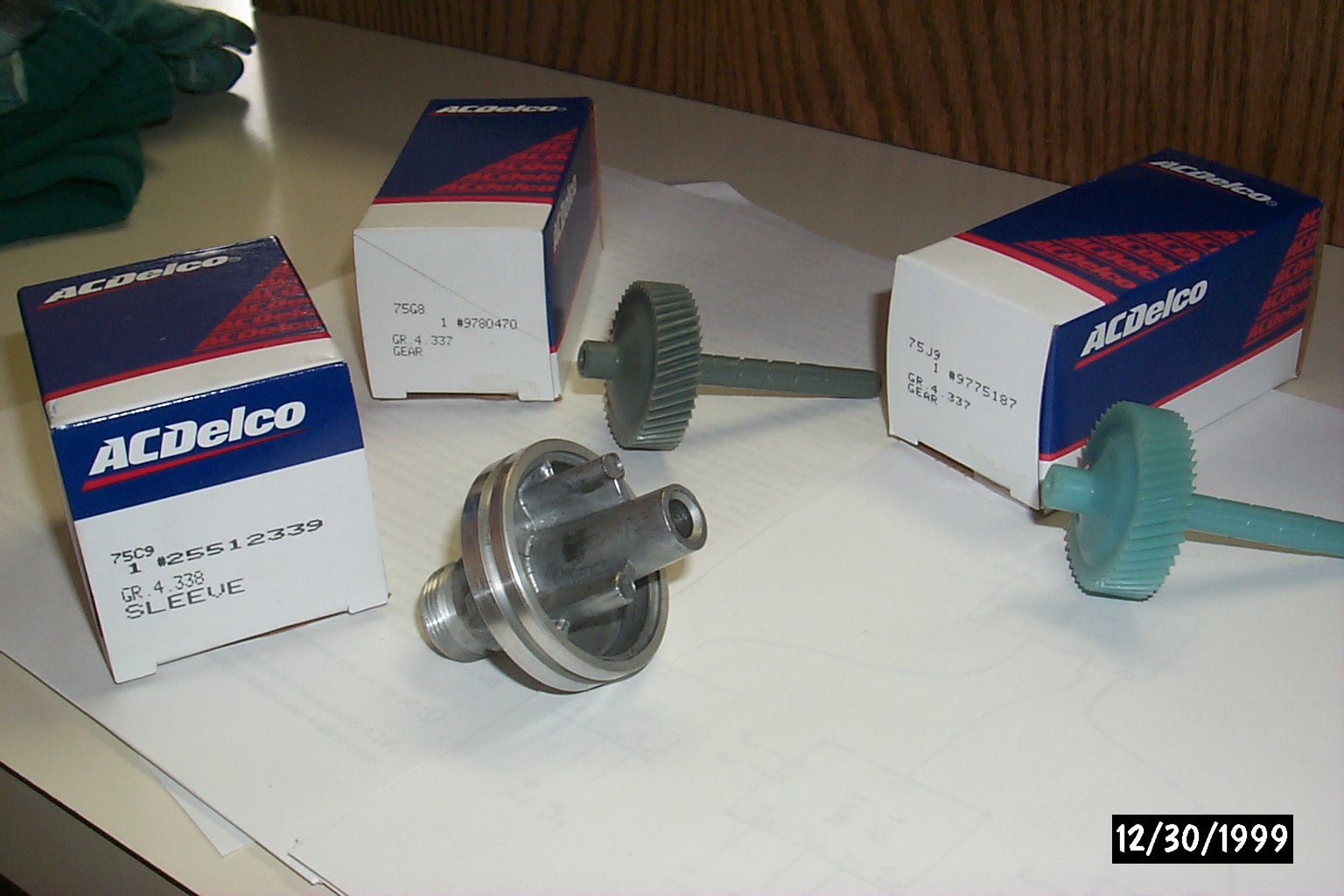

Correct parts. The sleeve is needed if going to a higher "range" (tooth count) of DRIVEN gears.

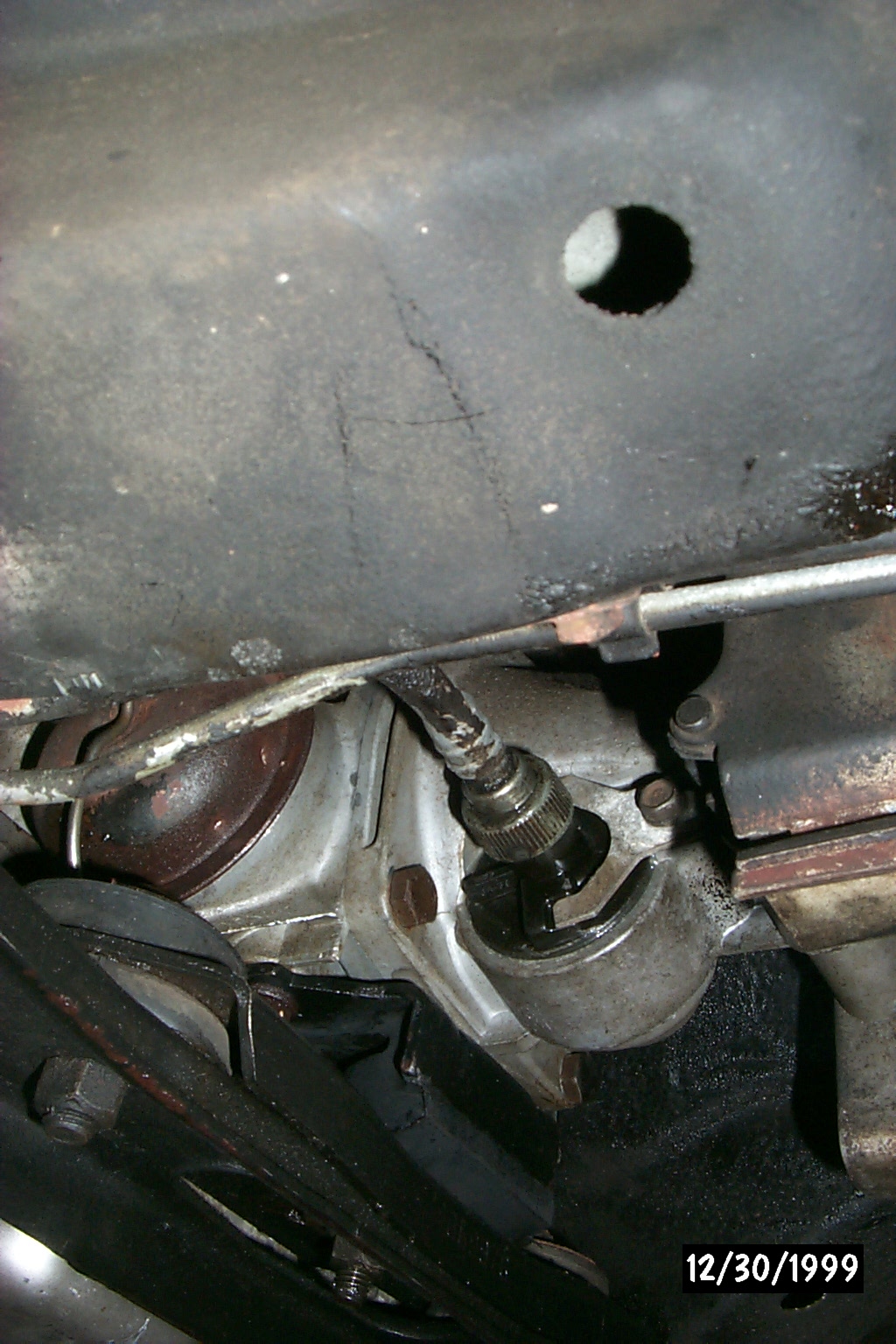

Speedo cable (non-electronic) hookup into trans

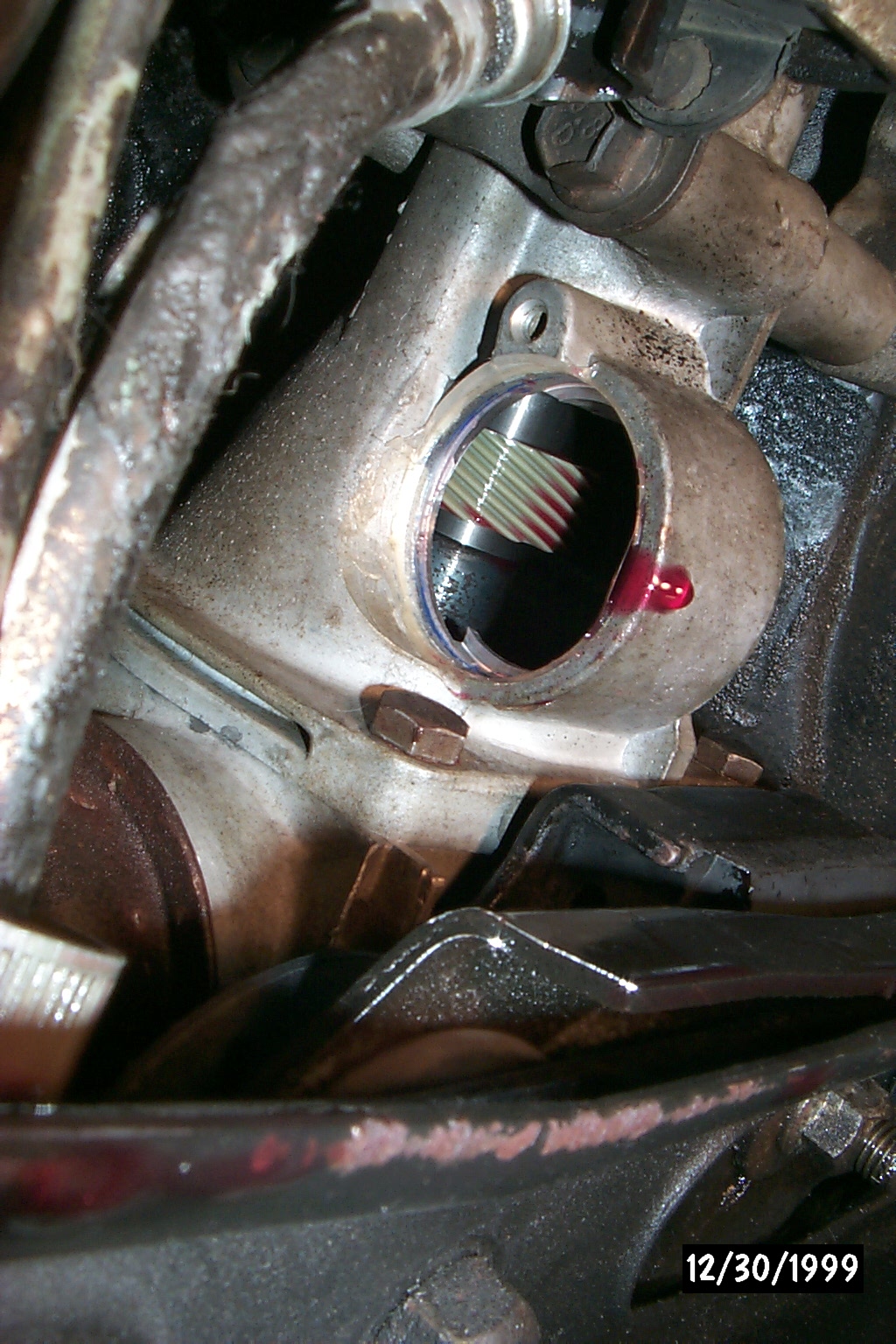

DRIVE gear inside of trans with DRIVEN gear&sleeve removed from trans.

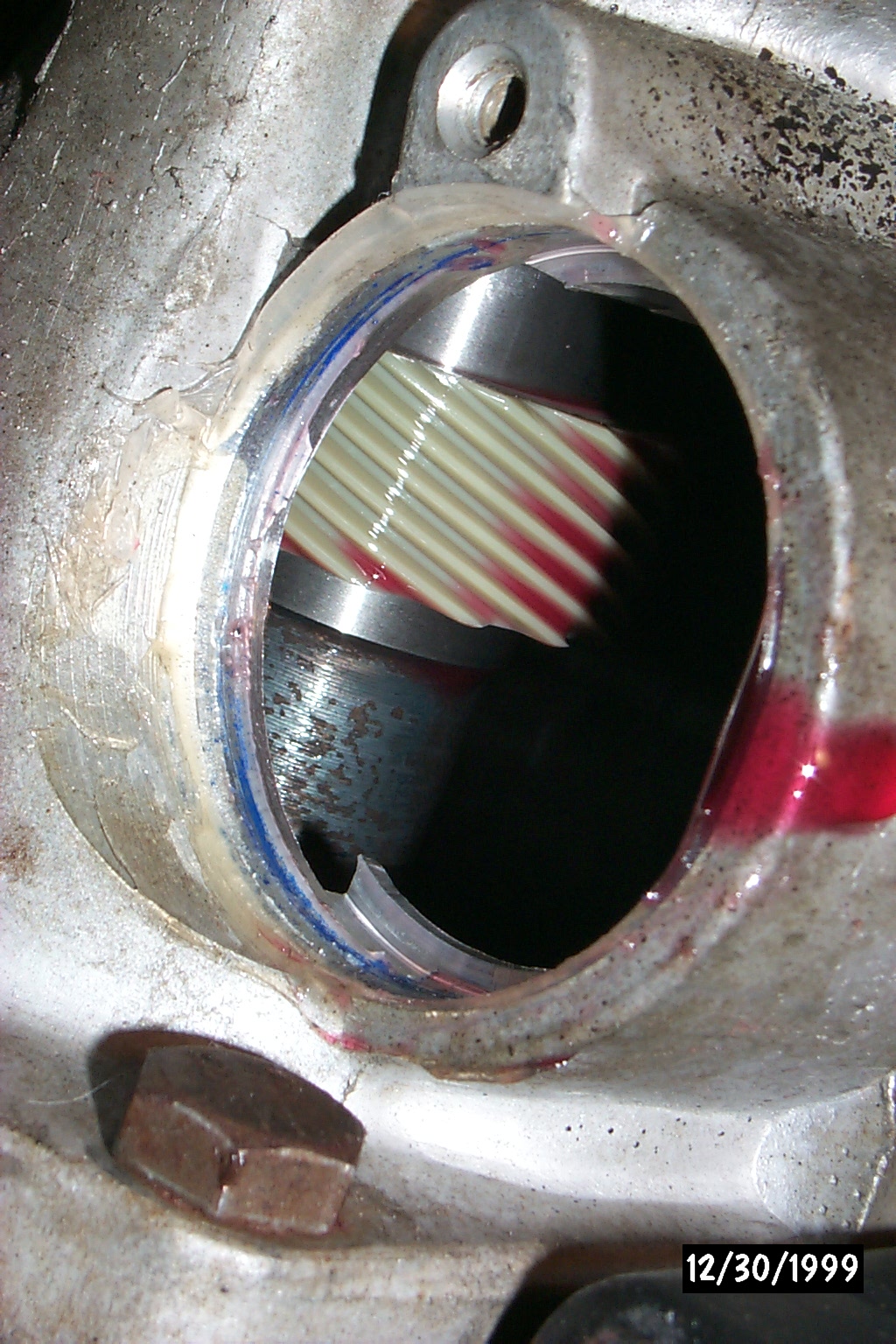

DRIVE gear inside of trans with DRIVEN gear&sleeve removed from trans.

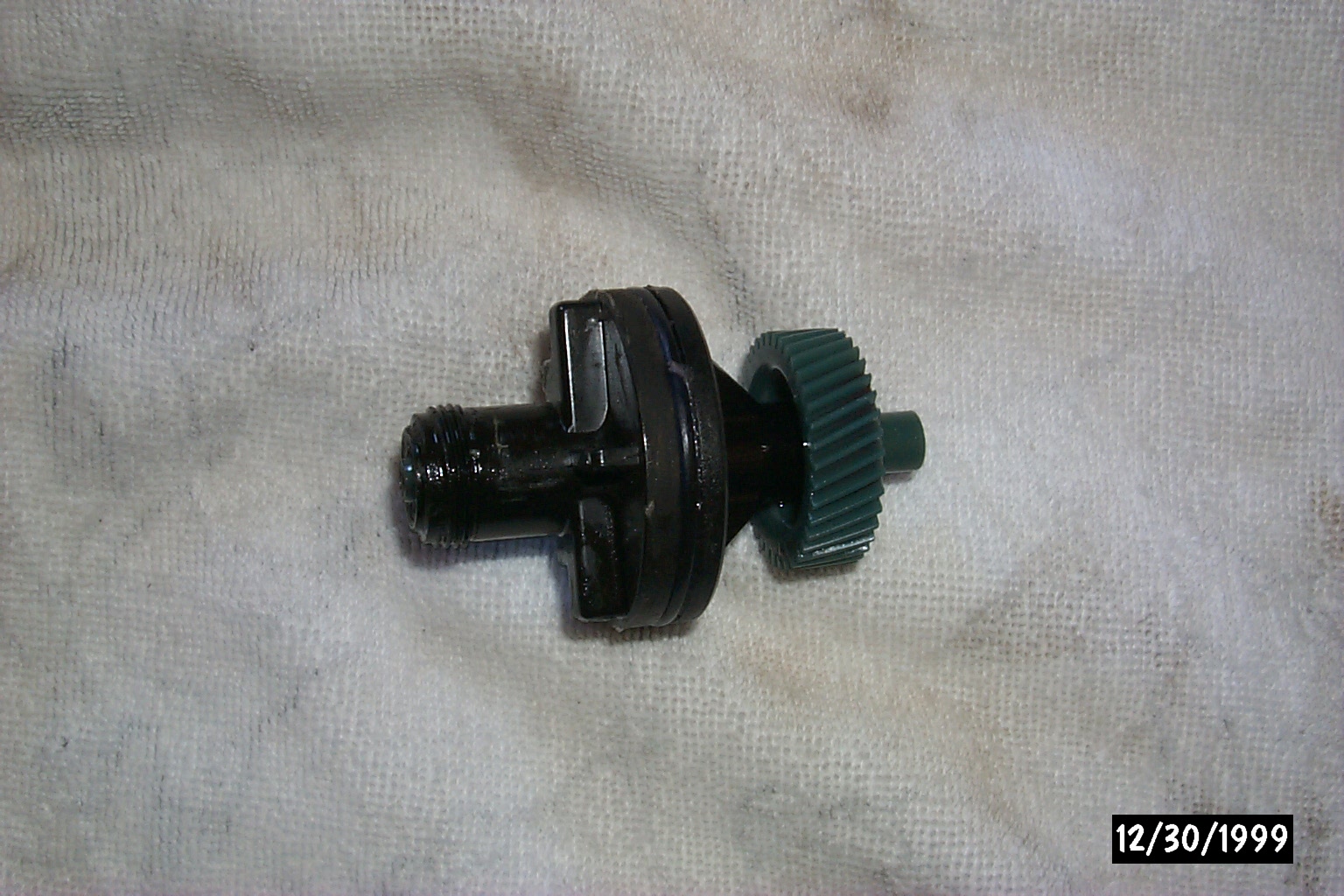

Stock Blue DRIVEN gear (38 tooth) &sleeve removed from trans. (3.23 rear)

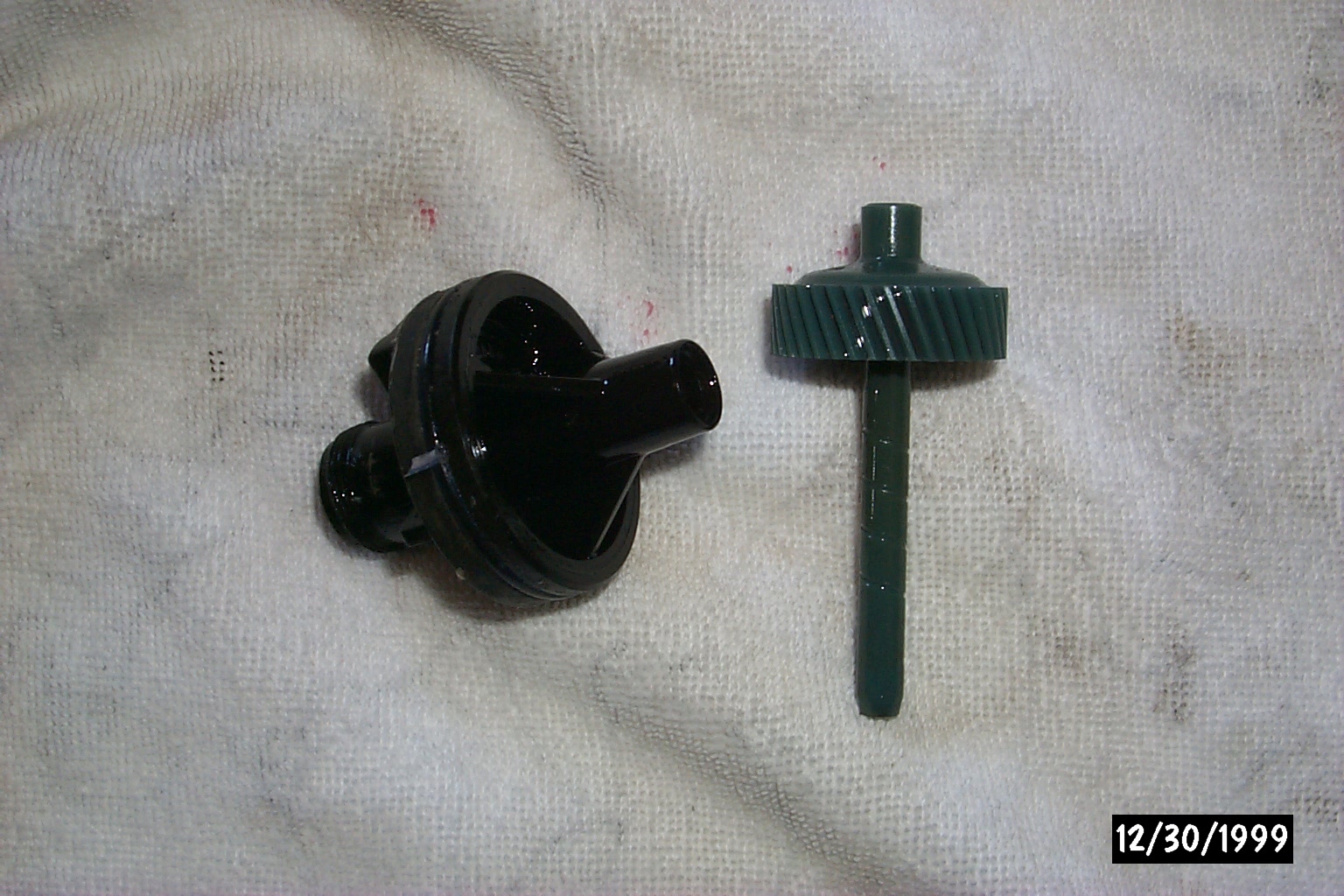

Stock Blue DRIVEN gear (38 tooth) &sleeve removed from trans. (seperated) (3.23 rear)
