For safety reasons (I shuttle kids around, I won't need it under NHRA rules.. 8-) I wanted to install a DSL. I had a Lakewood (custom camaro bolt-on) on order for 6 months. They claimed that since MrGasket bought out Lakewood, the DSLs were lost in bureaucracy. Anyway, thru some web searching I found a custom camaro DSL at http://www.performancesuspension.com/hpmdriveshaft.html

I held out for a bolt-on over a weld-on because of my (mis-informed) assumption that a bolt-on actually "bolts on" to existing holes or bolts on your car. I only found out after getting it that you still have to drill holes thru your car floor to bolt it on... As much or more destructive as a weld-on!!

Click on any image below for an enlargement (~500K) image.

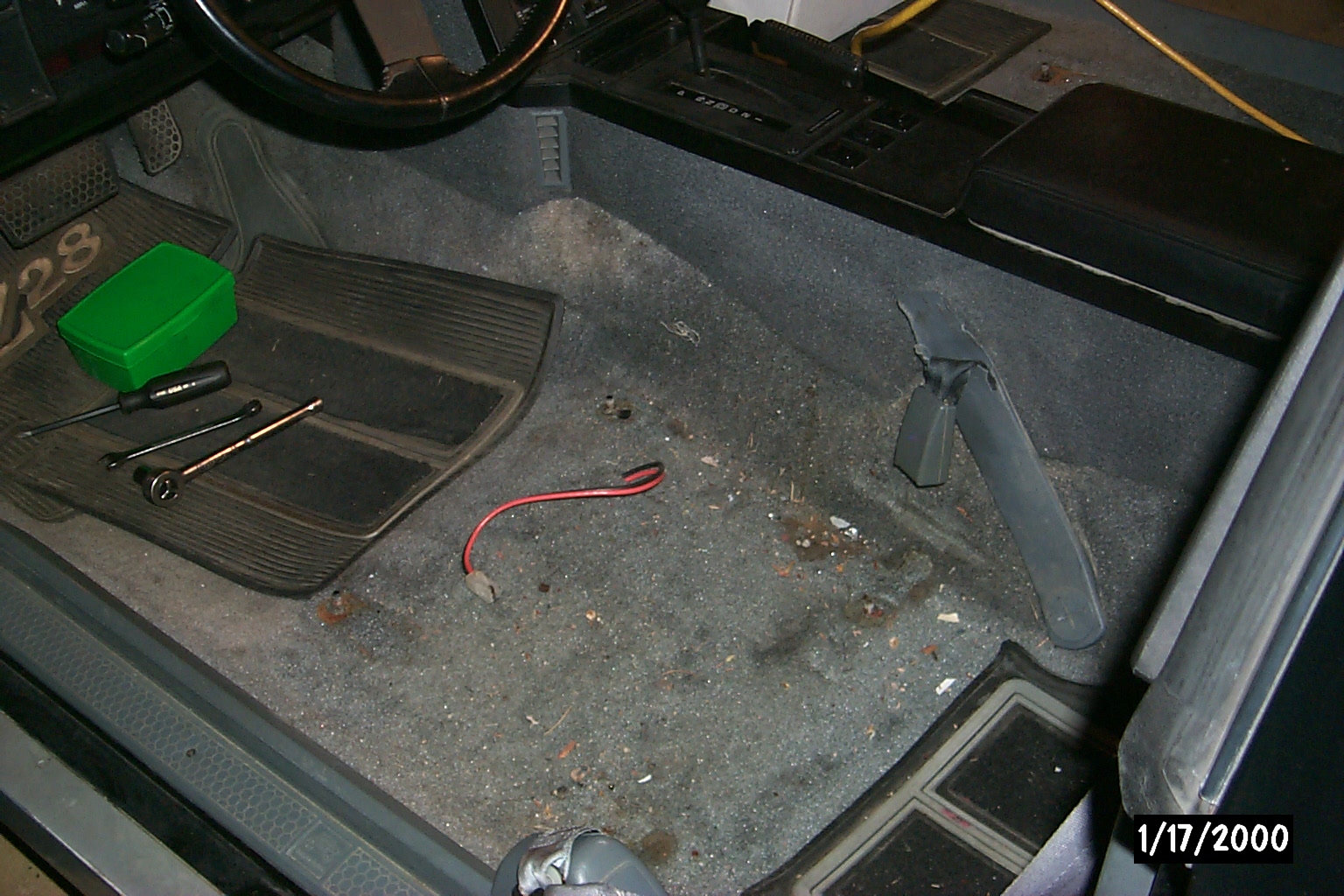

Drivers Side Front Seat removed


Passenger Side Front Seat removed

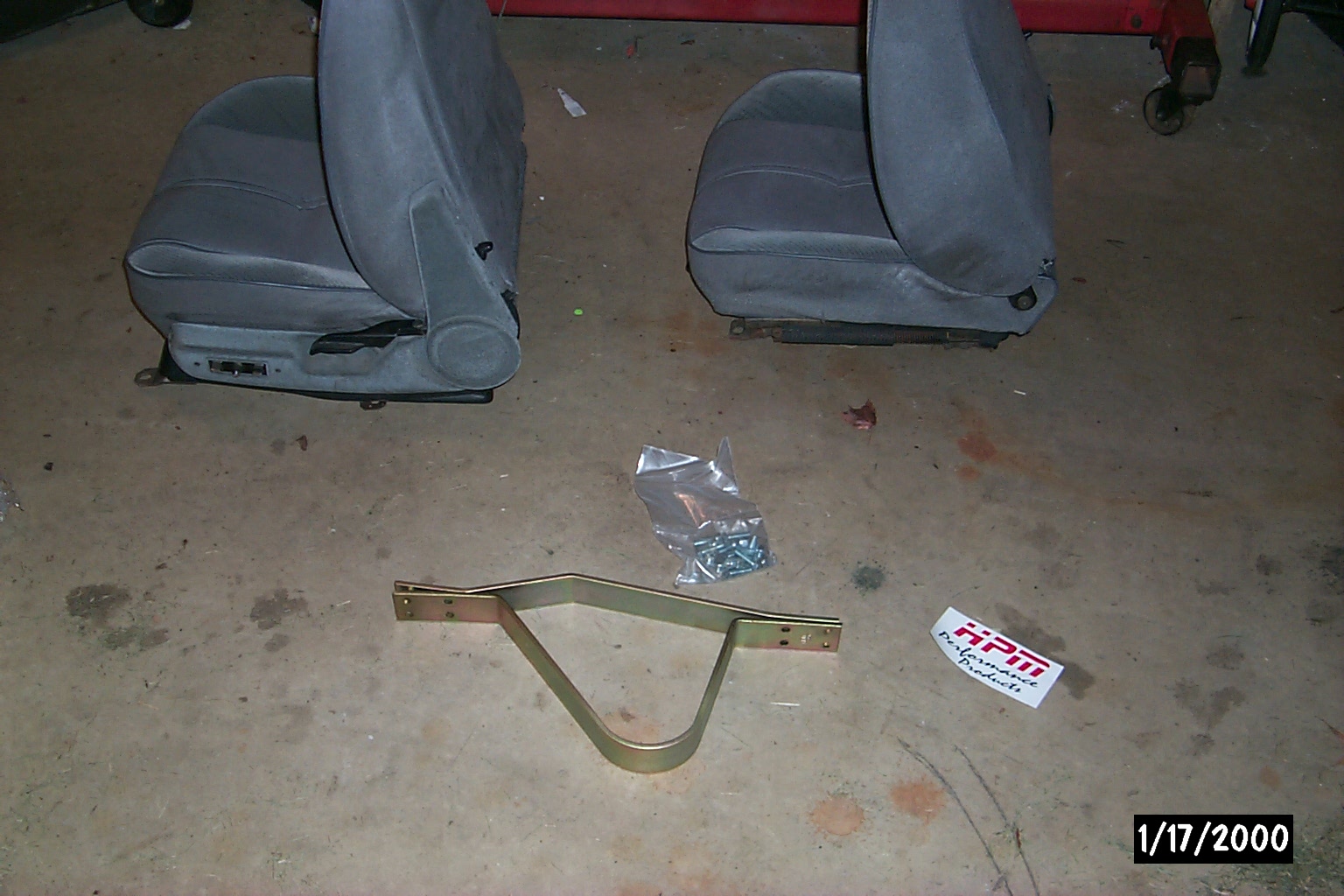

Seats out of car, shown with DSL fit together

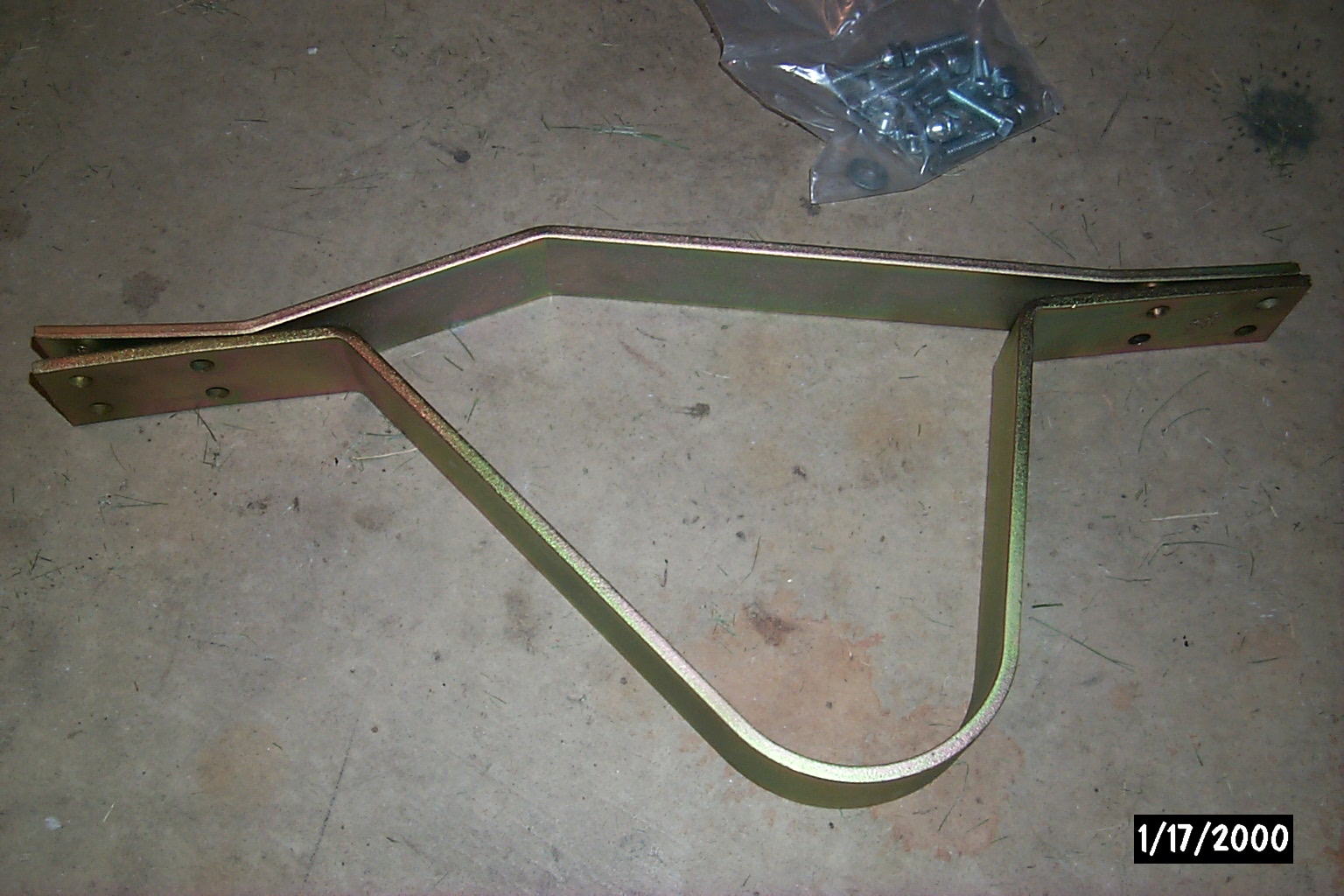

DSL assembled fit

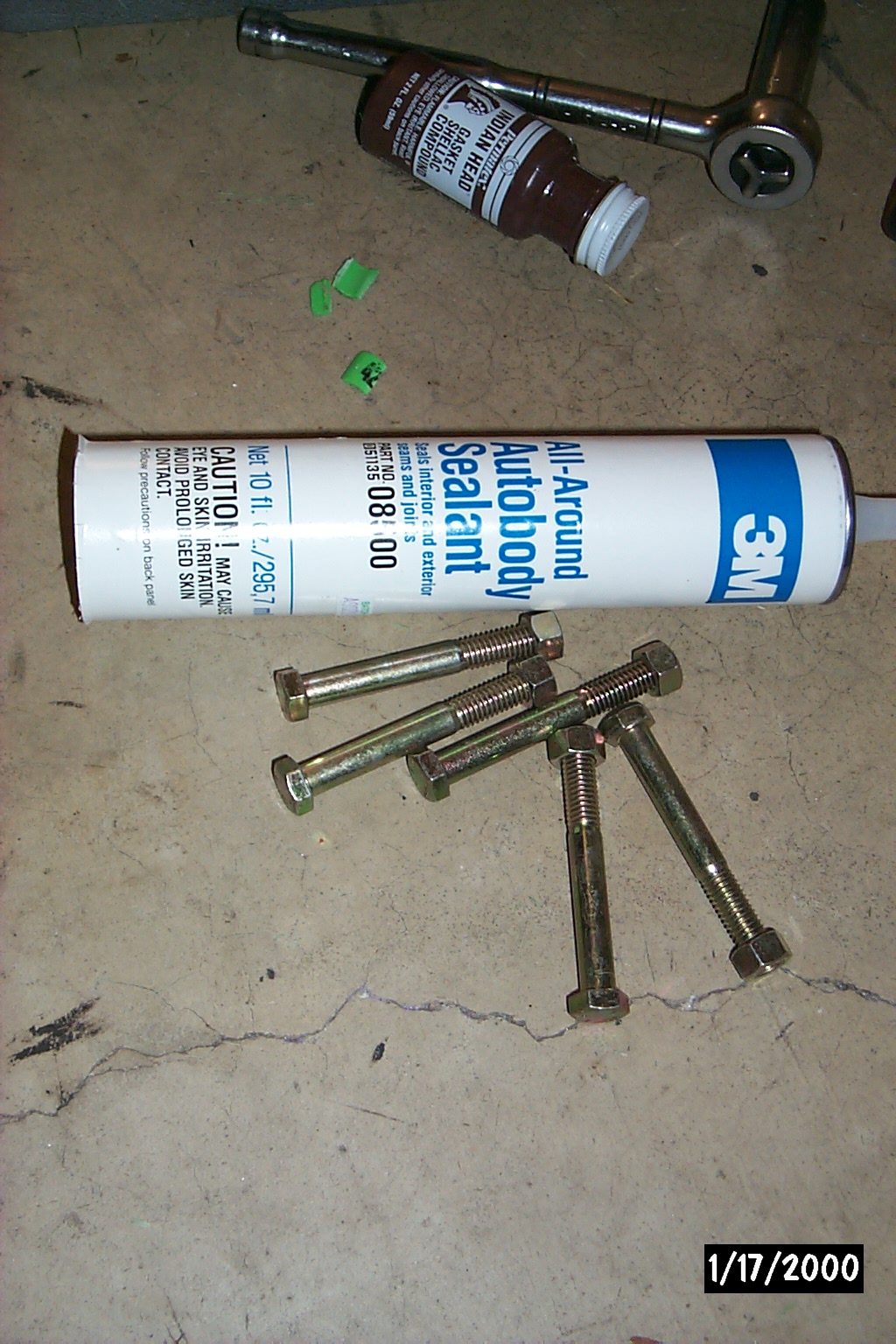

Body sealer and 3" grade8 bolts for install.
Kit came with 1.5" bolts?

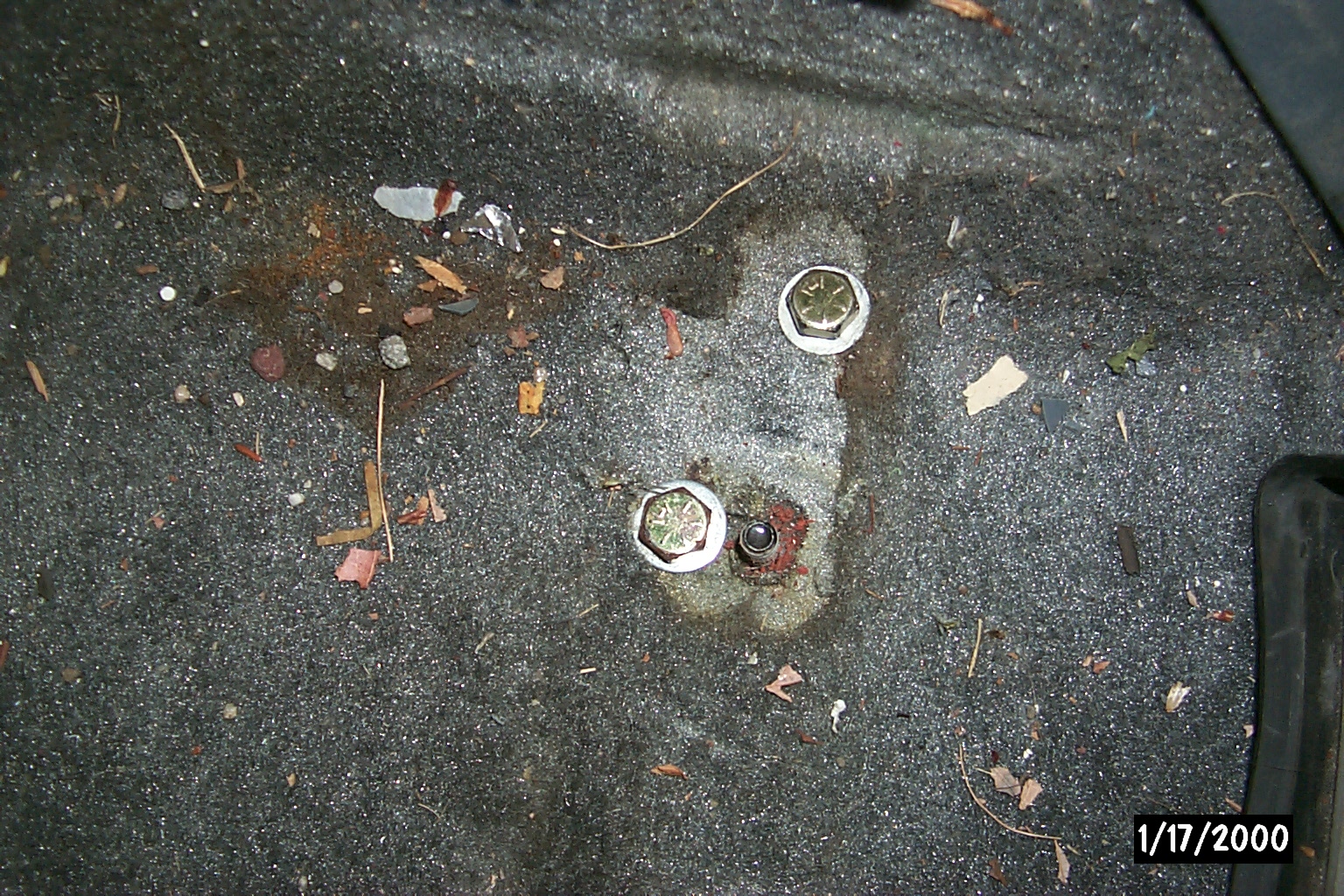

Bolts thru floor of Drivers Side

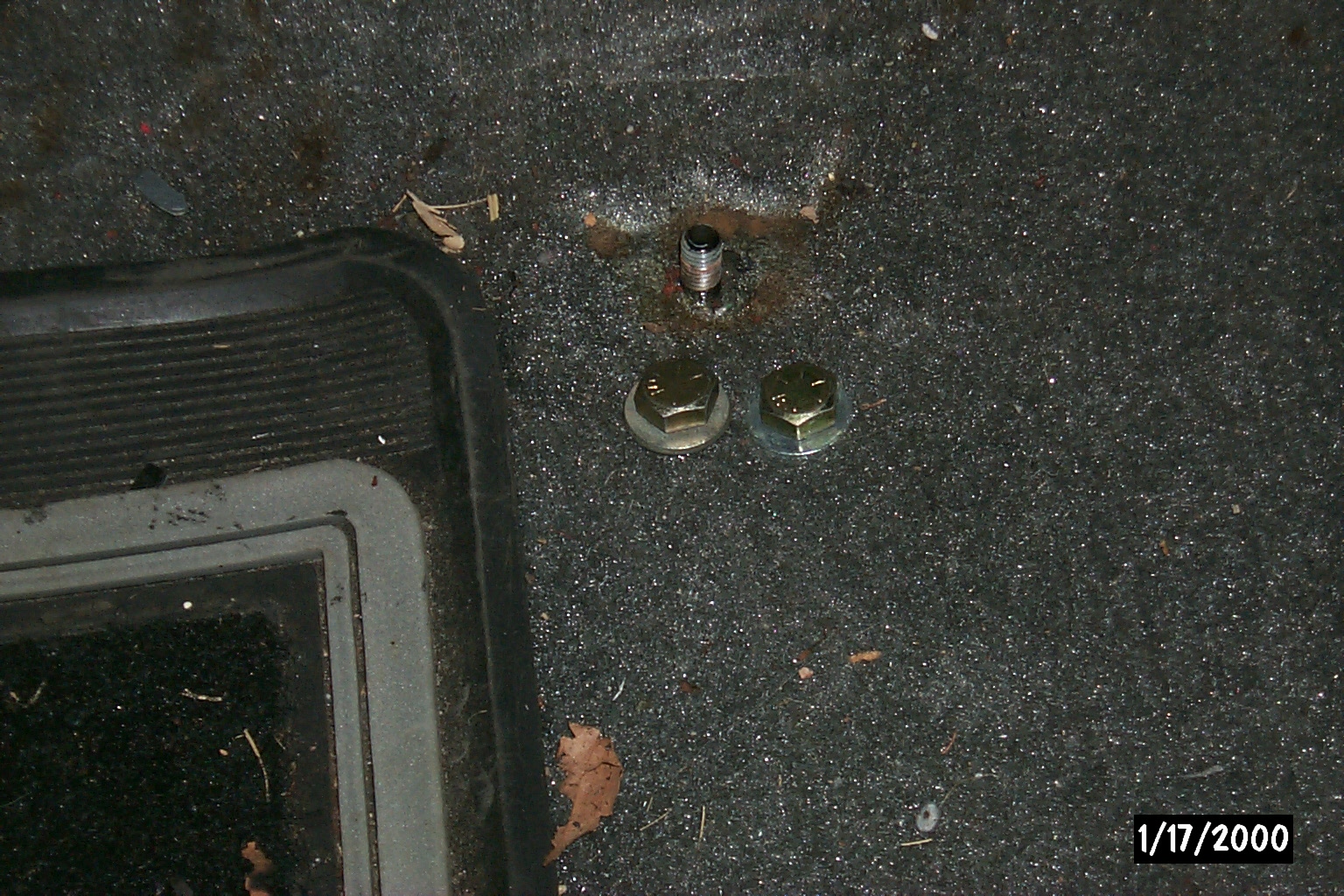

Bolts thru floor of Passenger Side


Assembled fitting of lower part of DSL


Assembled fitting of lower part of DSL


Assembled fitting of lower part of DSL

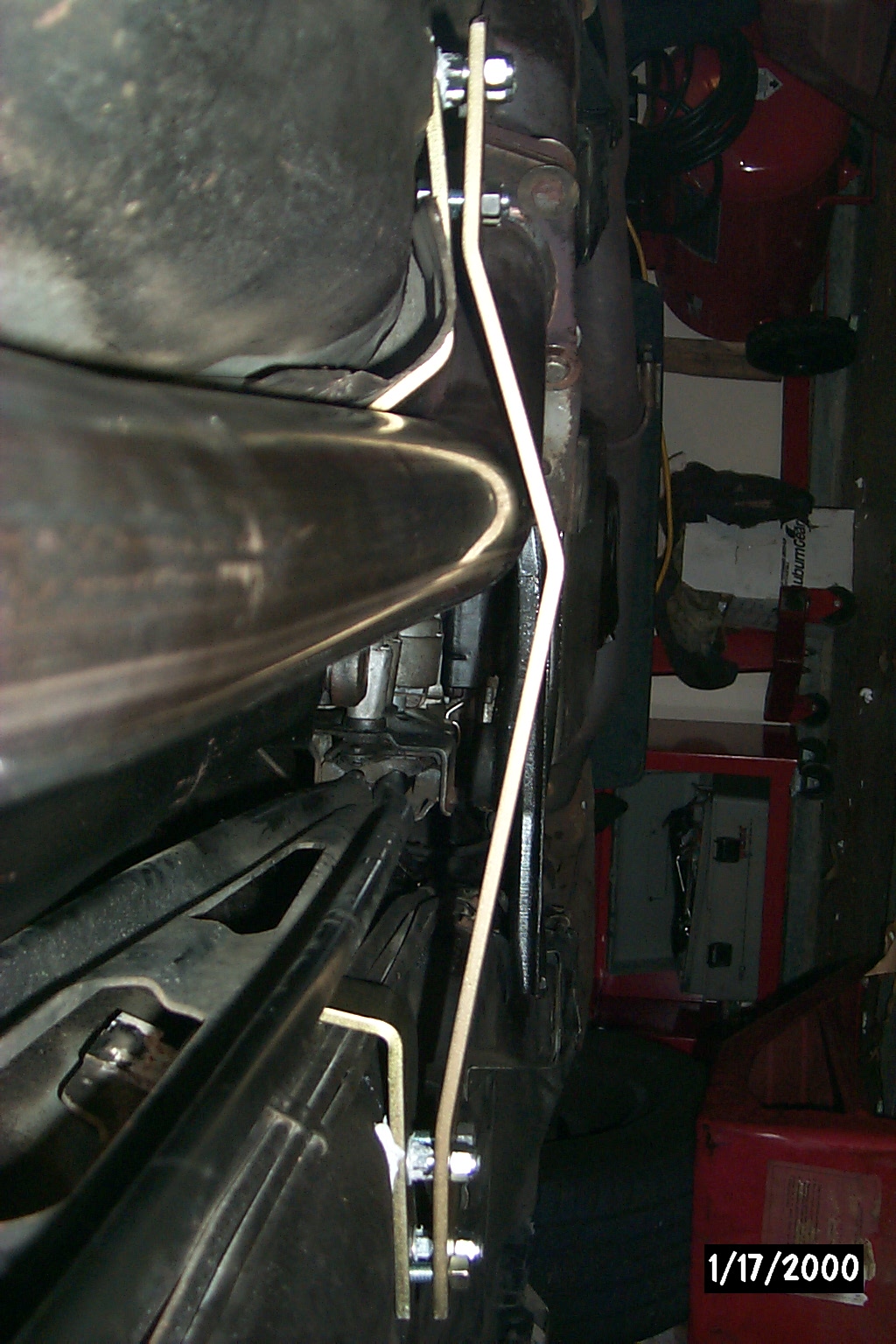

DSL completely installed (presses hard against SLP 3" cat-back)
