Click on any thumbnail picture to enlarge (640x480) OR click on the picture name for a full-size (1800x1200) image

This is a used 383 long-block with about 6000 miles on it. It's being torned down and refreshed with Federal-Mogul bearings on the Mains and Cam, and some refit Hastings Moly rings
My AFR190 heads are going on, along with my LT4 HOT cam which has been test-fitted and checked for clearance with the stroker rotating assembly

Short-block specs
Late model one piece seal, 2-bolt SBC 350 roller block prepped and 0.030 over
KB Hypereutectic pistons, #197, (12cc dish)
Eagle cast steel 3.75" stroke crank for one piece blocks
Reconditioned 5.7" rods
400 balancer
153 tooth flexplate (to fit 700-r4)
Summit double roller timing set
Melling +10% volume, Hi Pressure oil pump w/ 3/4" pickup. (p/n 10552)

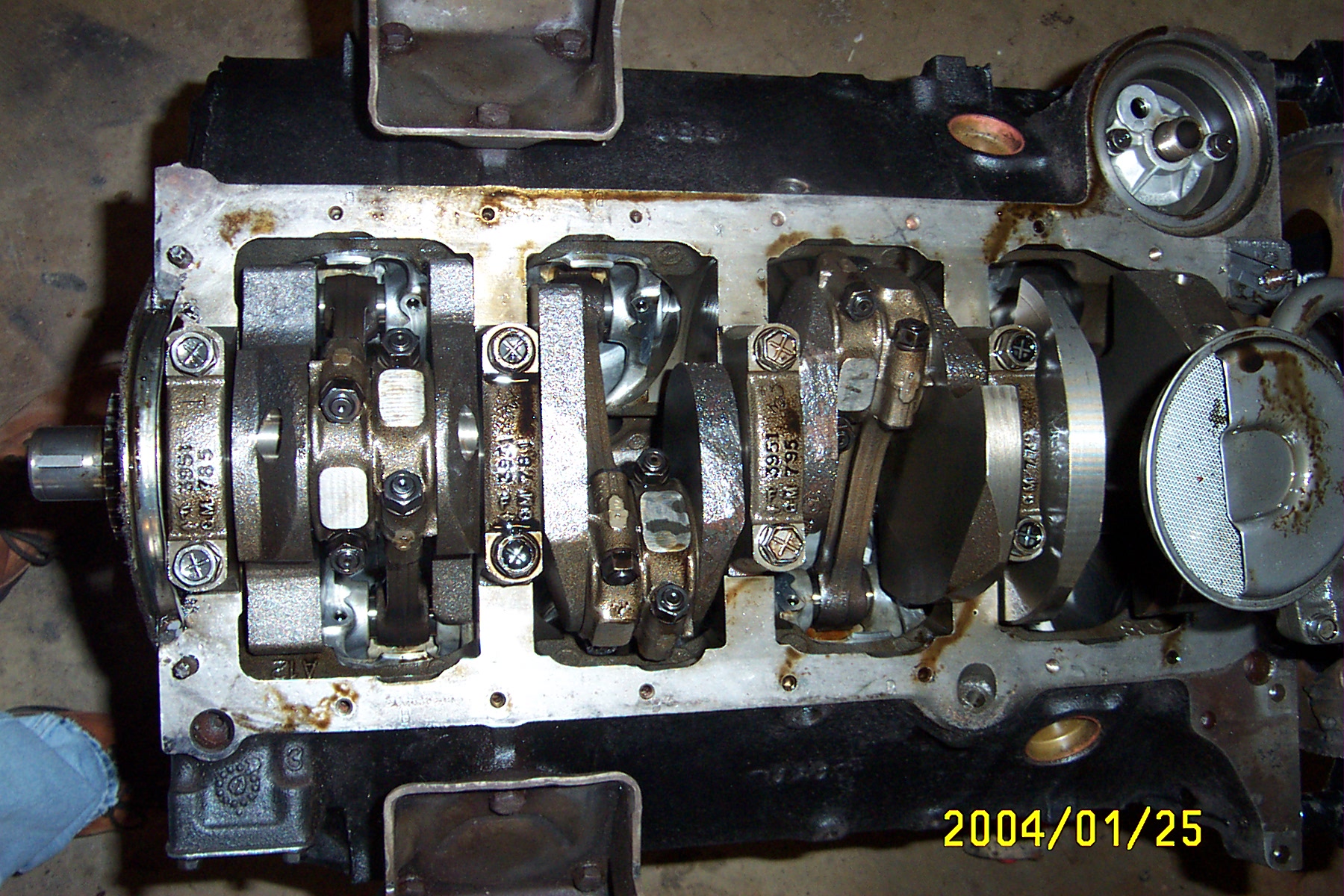

Bottom_block1

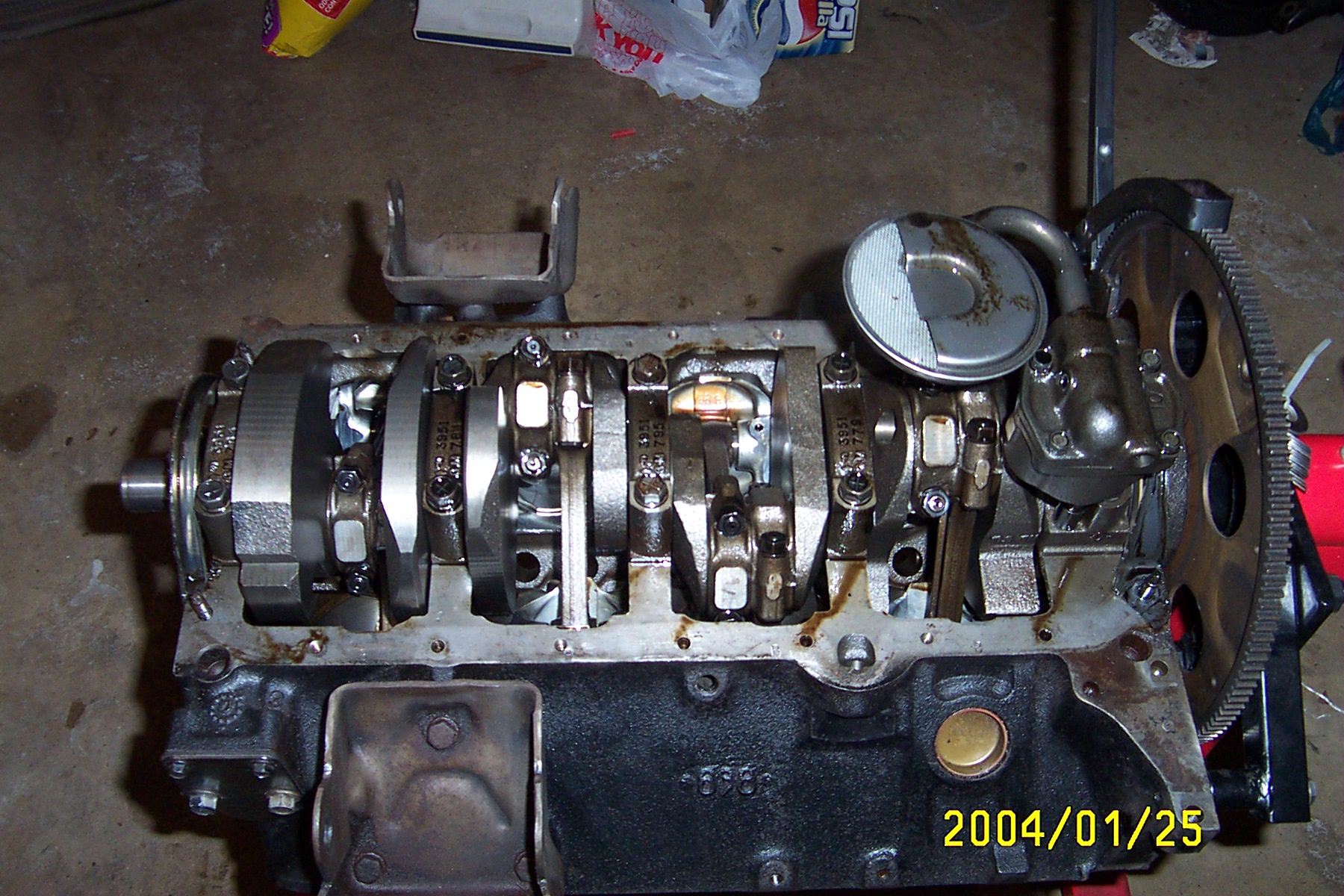

Bottom_block2

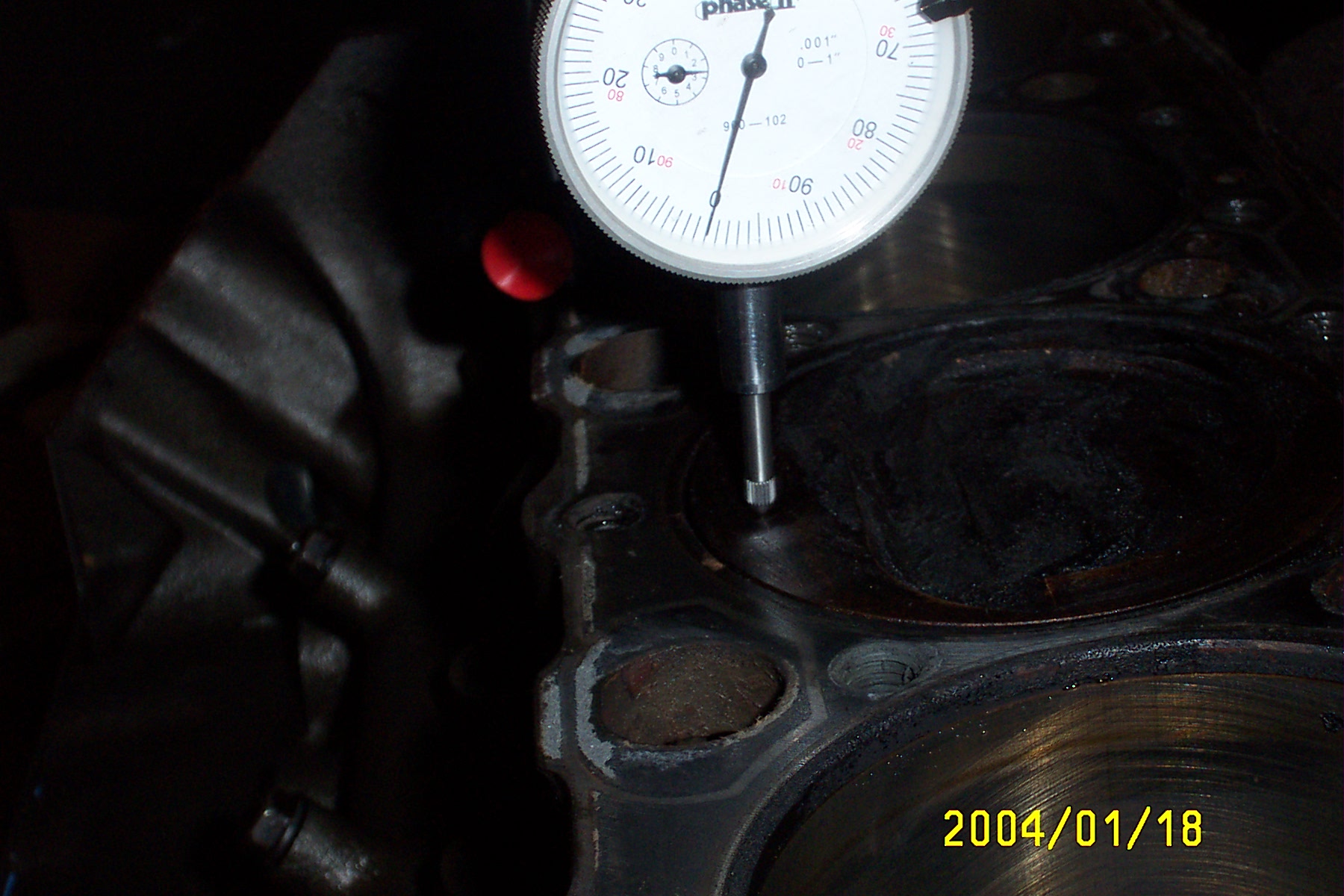

Deck_height1

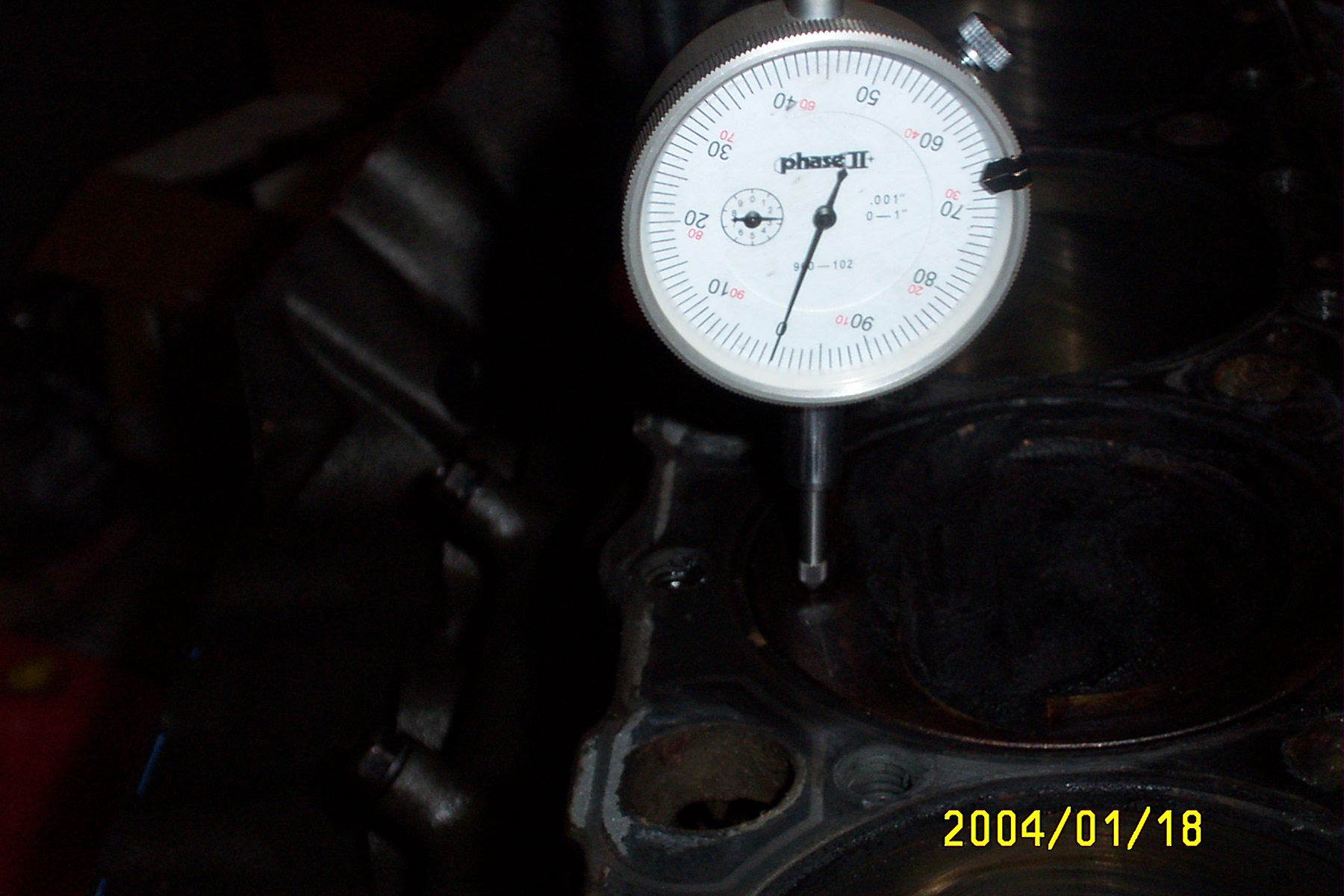

Deck_height2

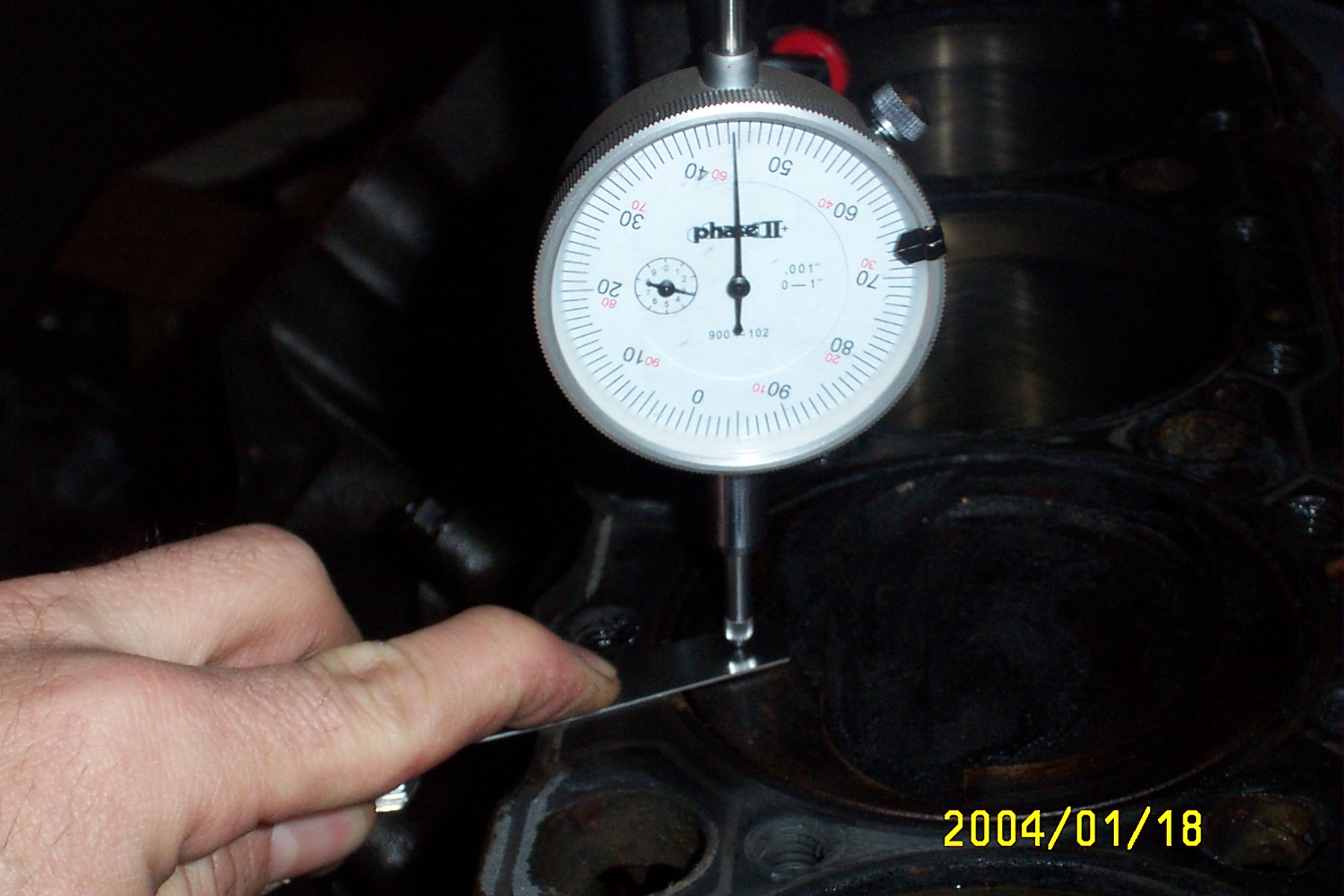

Deck_height3

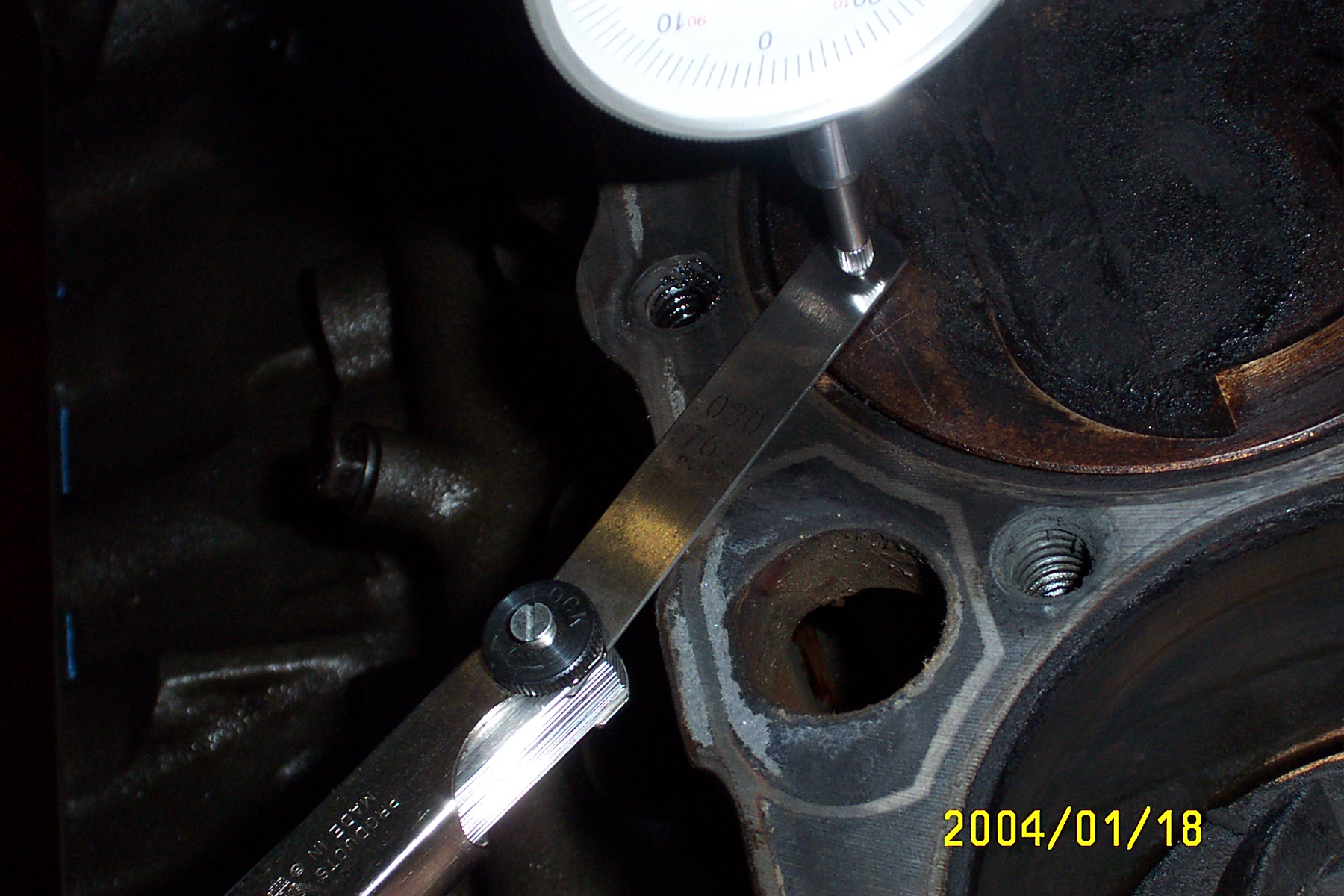

Deck_height4

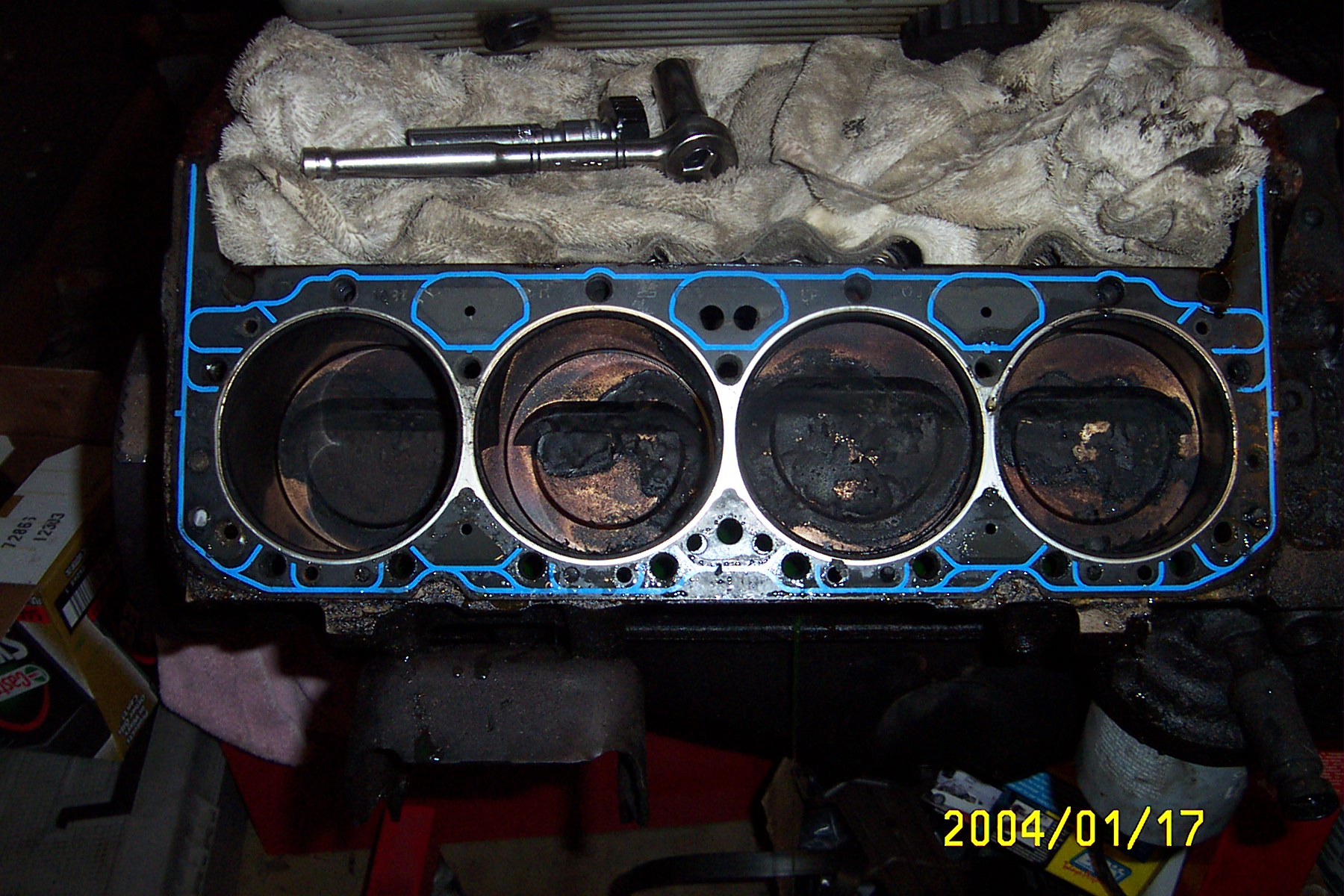

Dside_block1

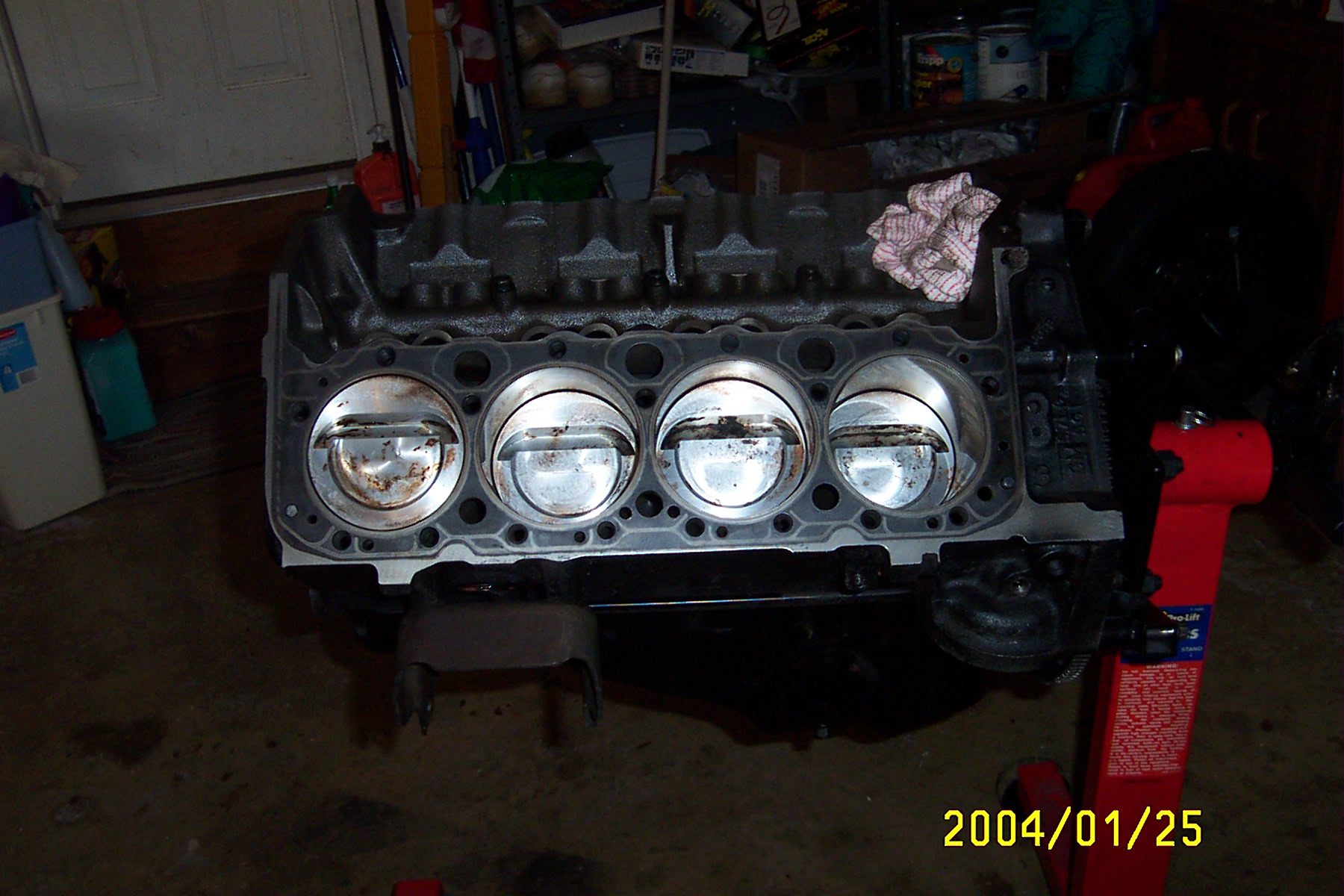

Dside_blockcleaned1

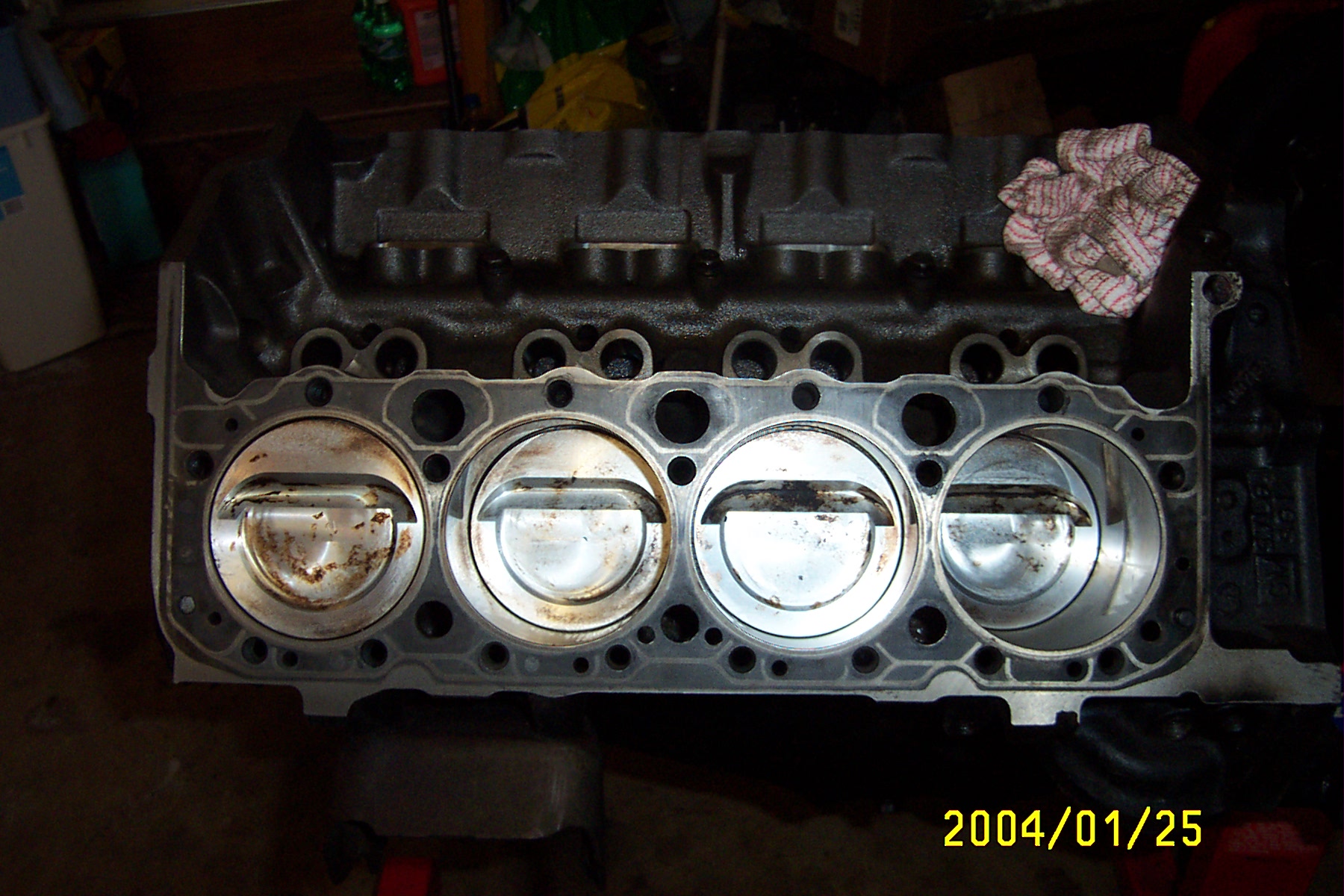

Dside_blockcleaned2

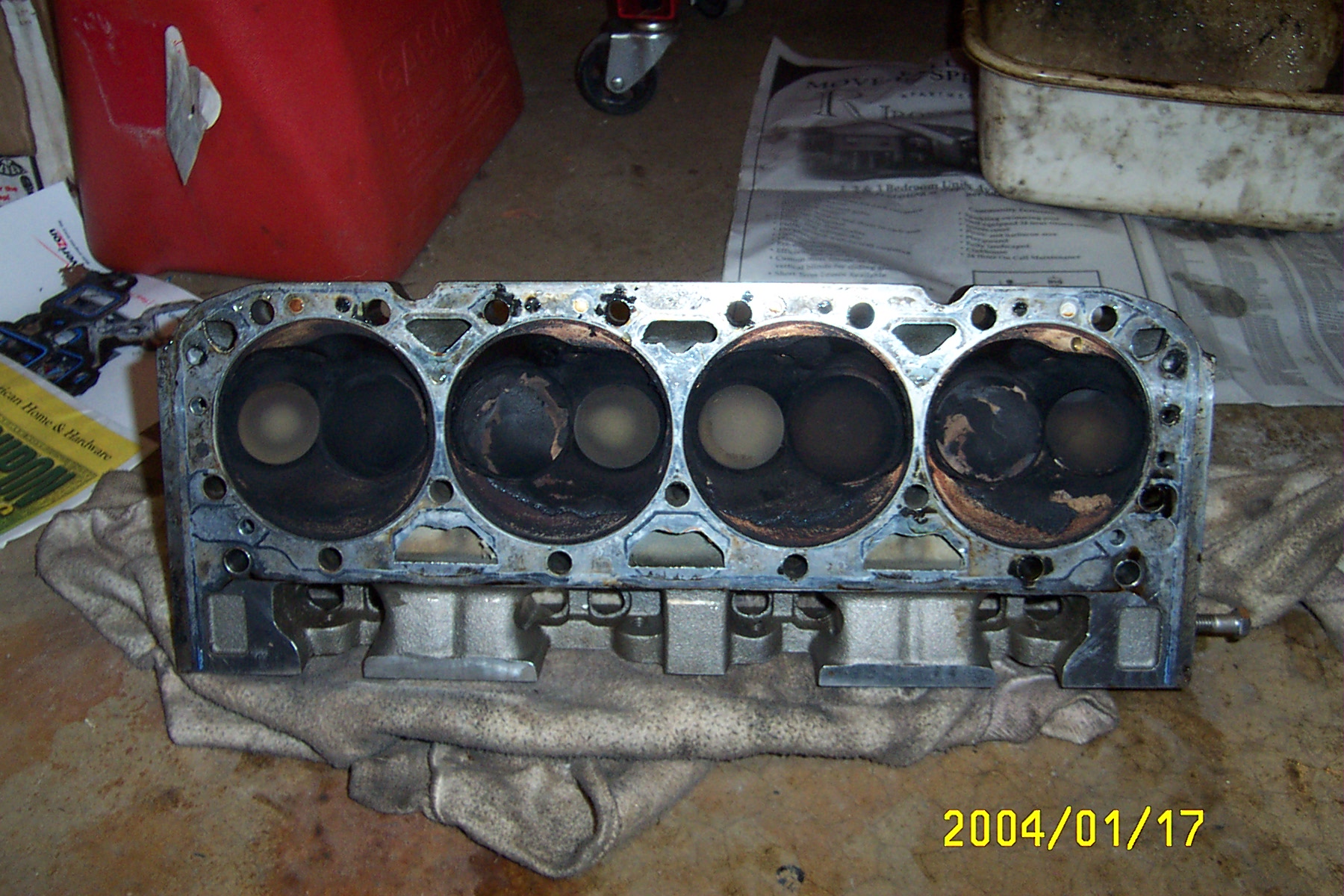

Dside_head1

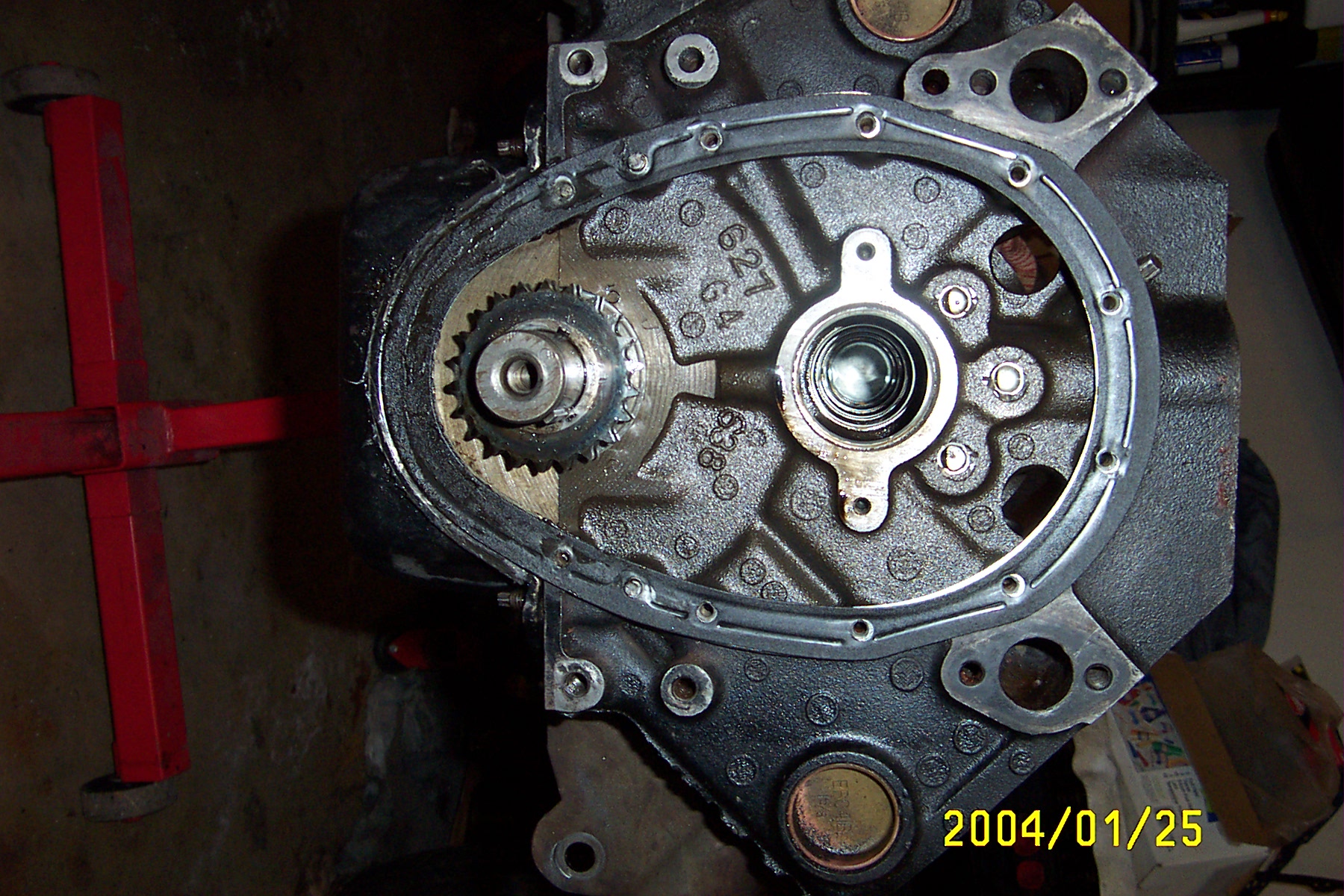

Front_block1

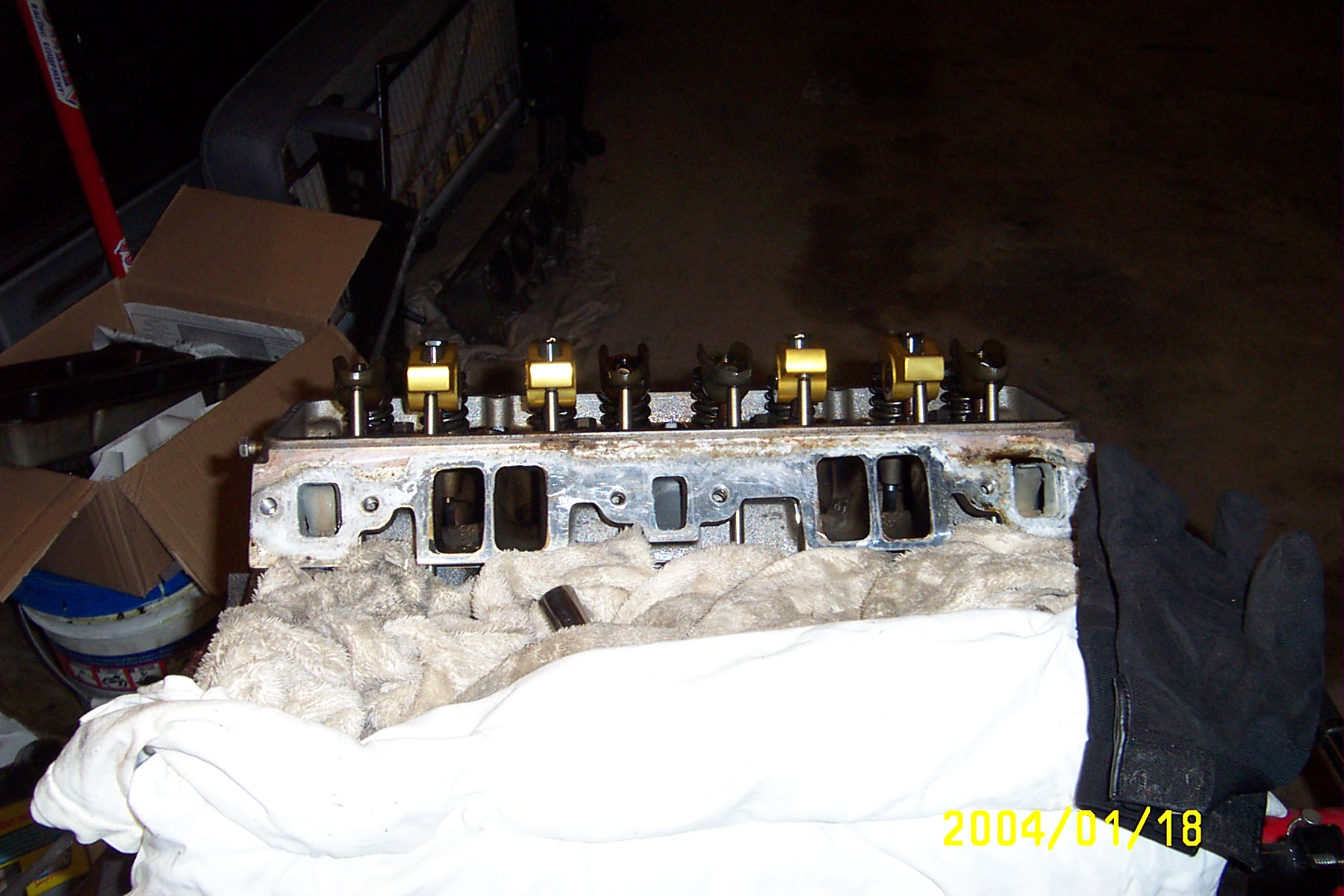

Intk_ports2468-1

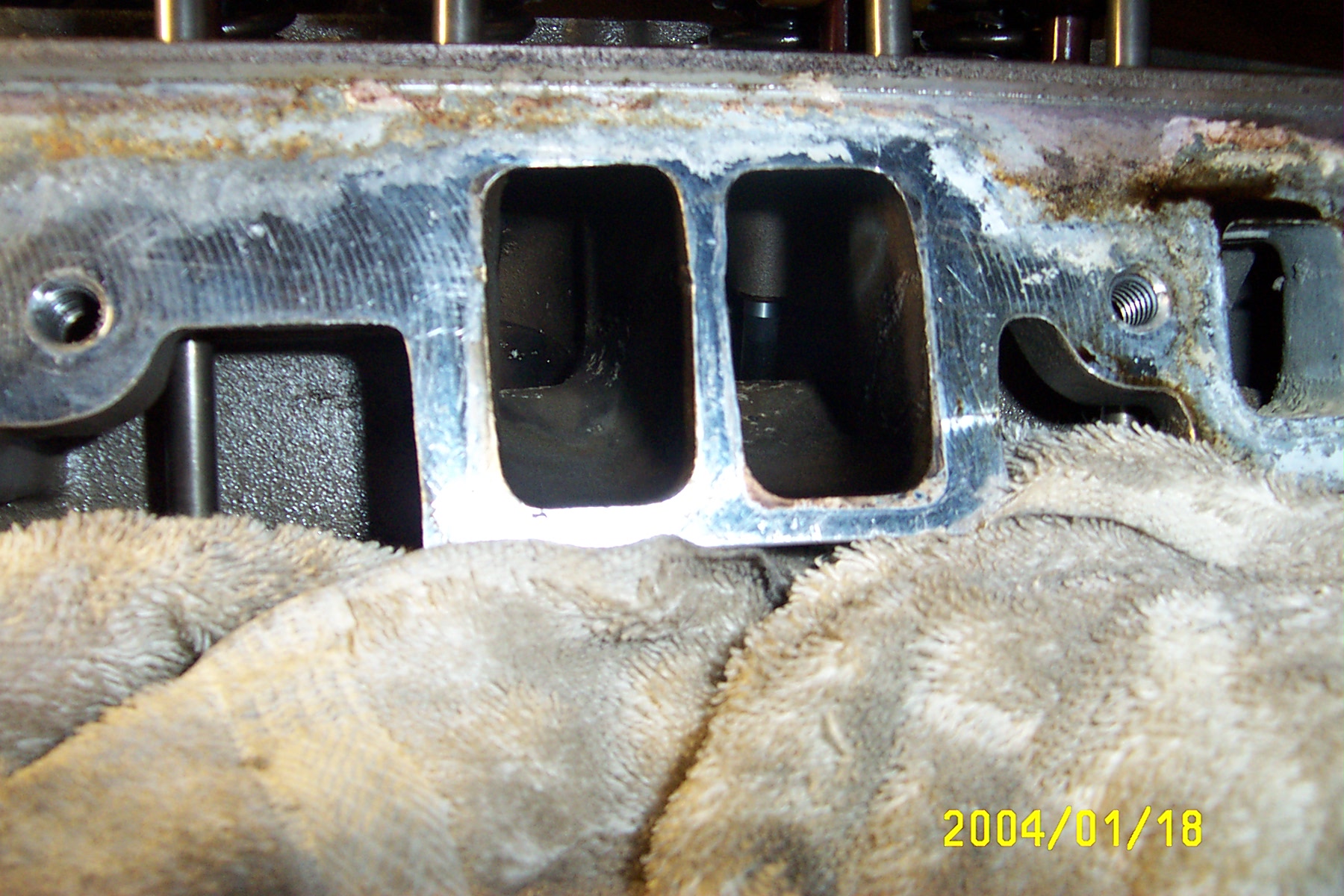

Intk_ports68-1

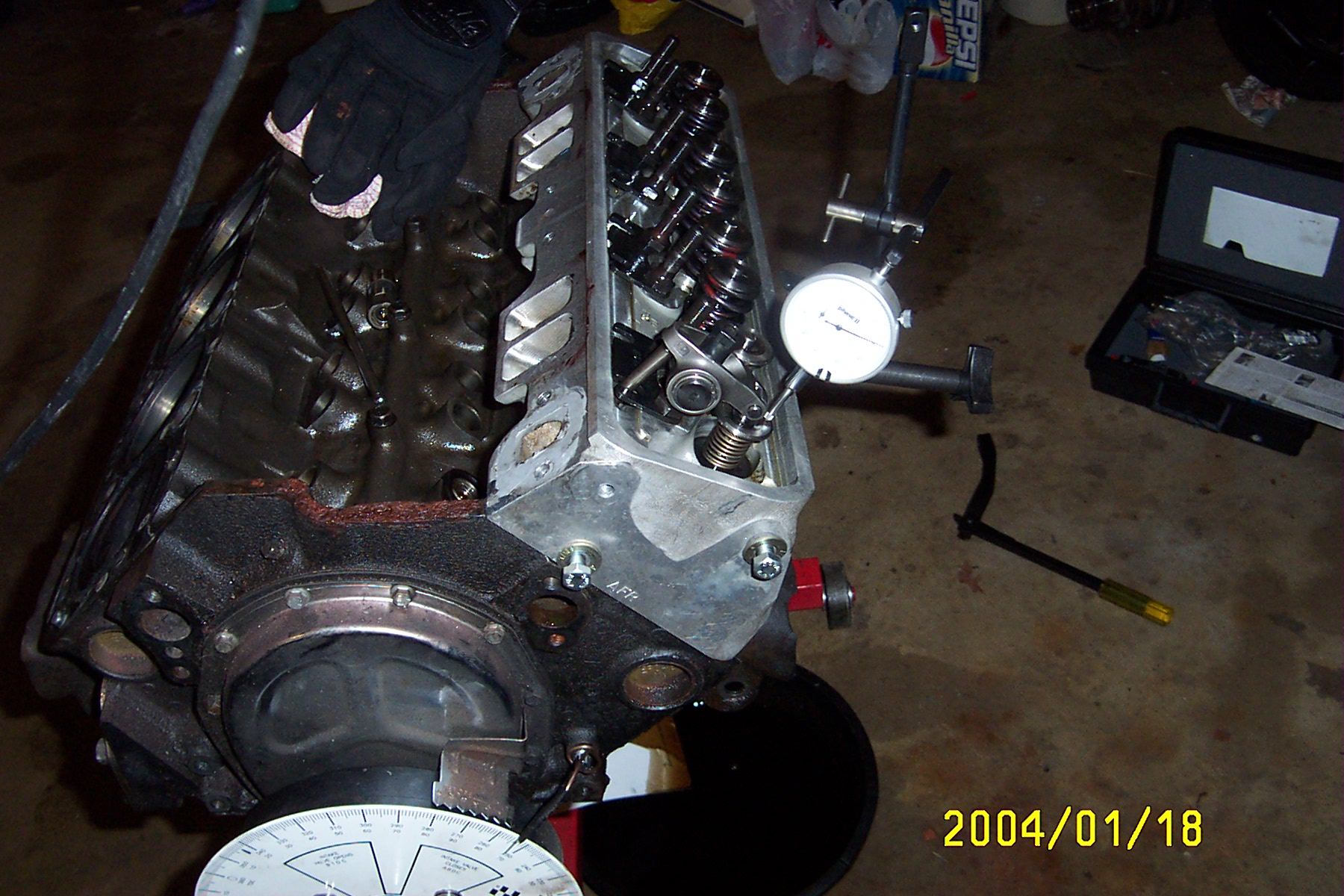

PV_clearance1

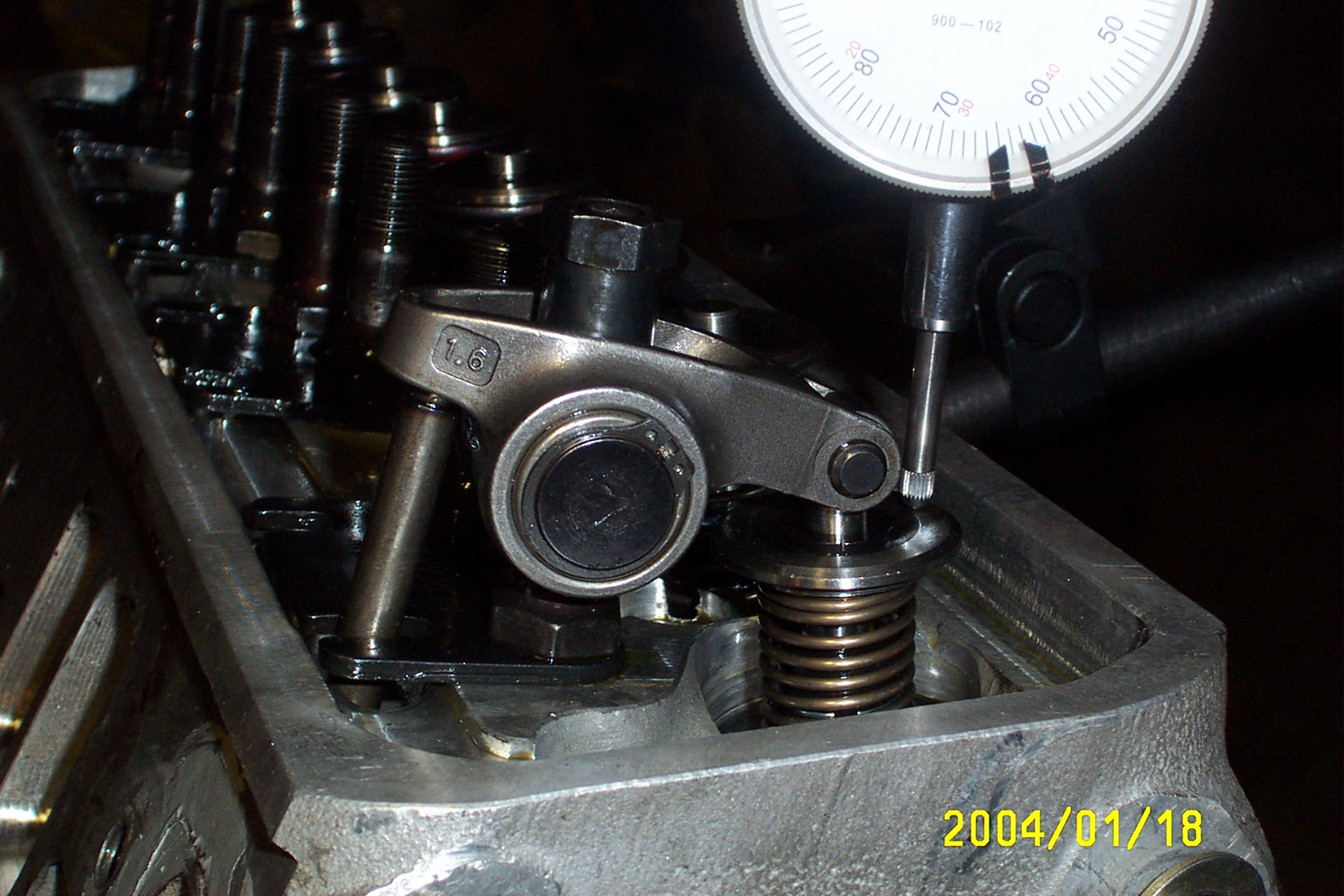

PV_clearance2

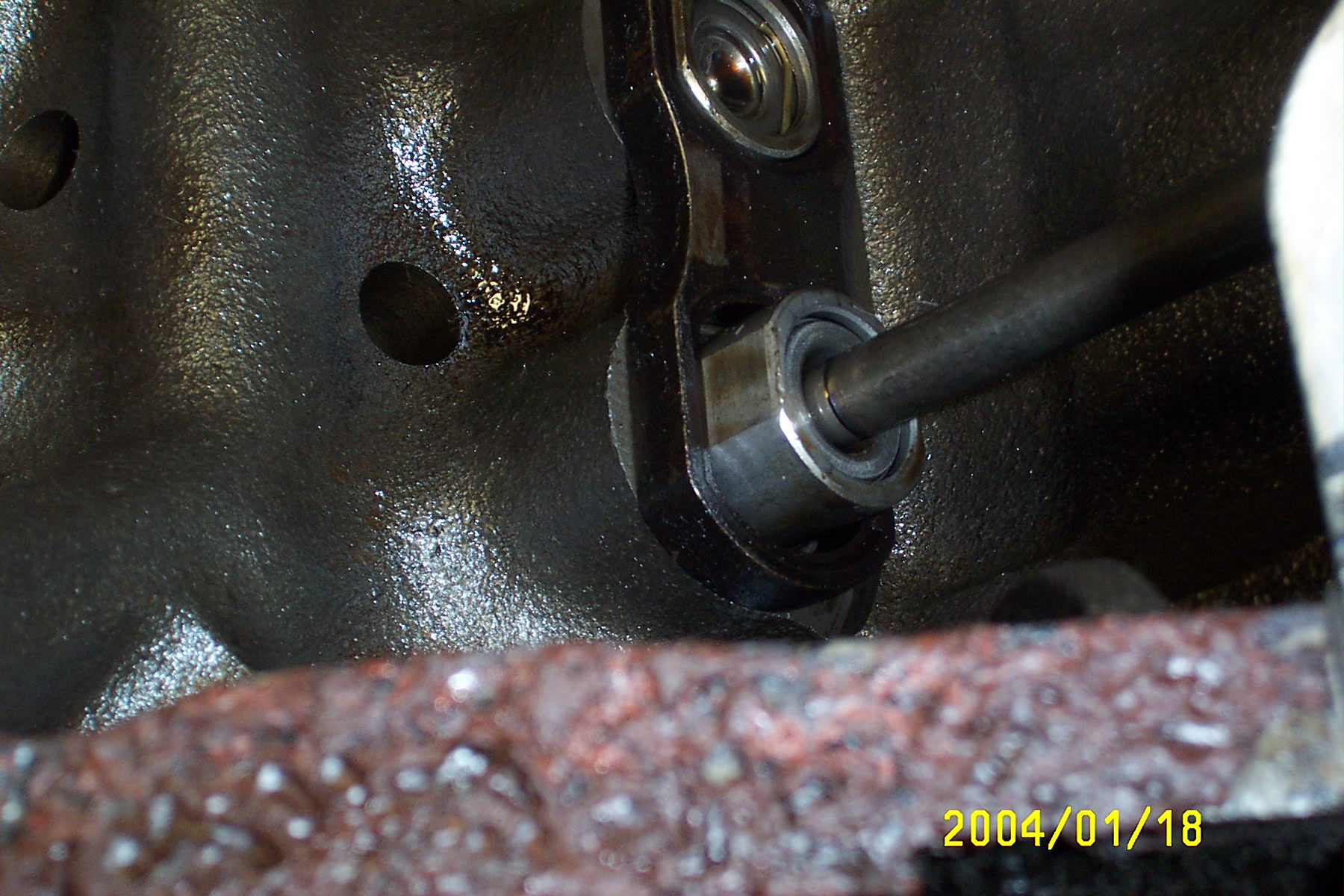

PV_clearance3

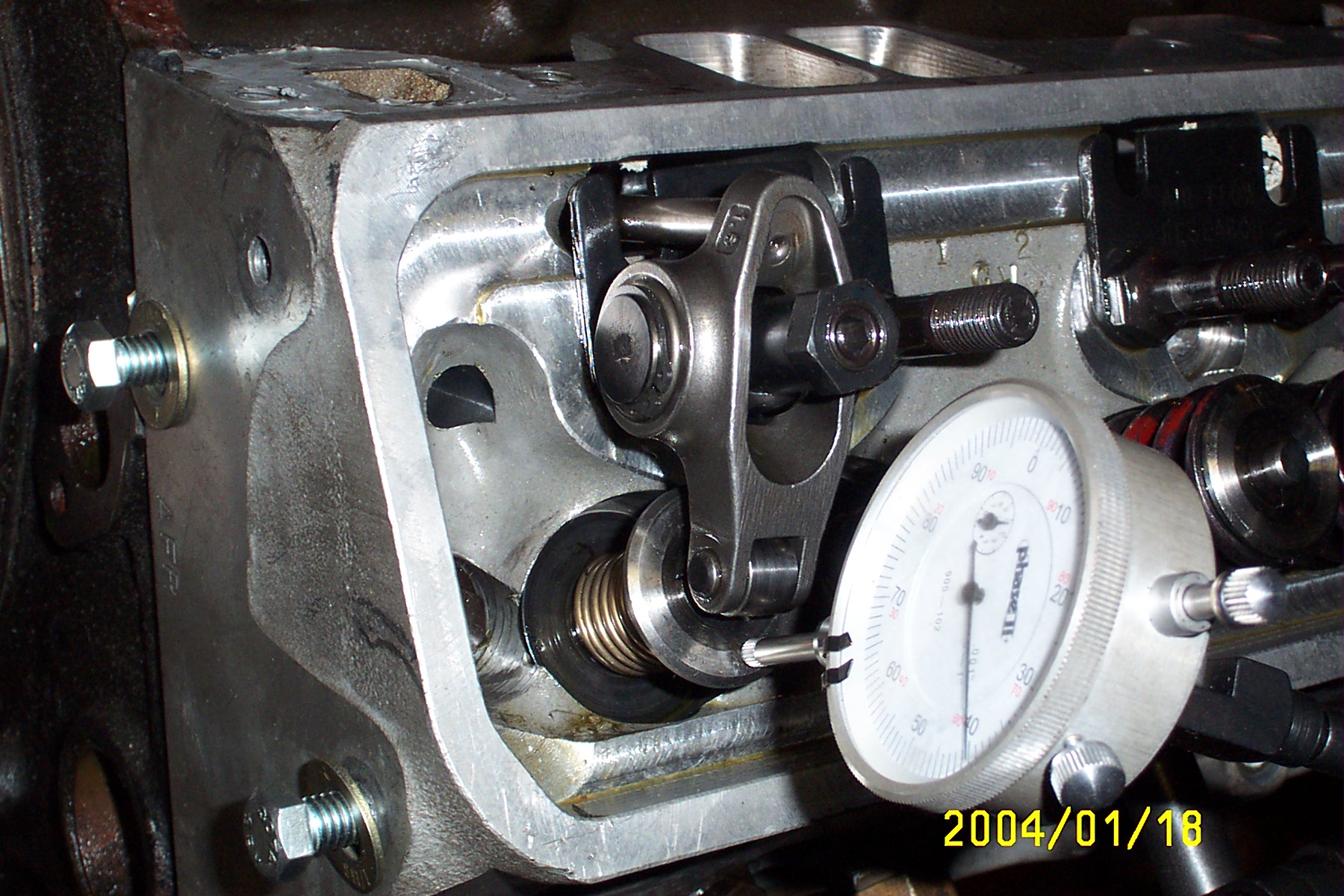

PV_clearance4

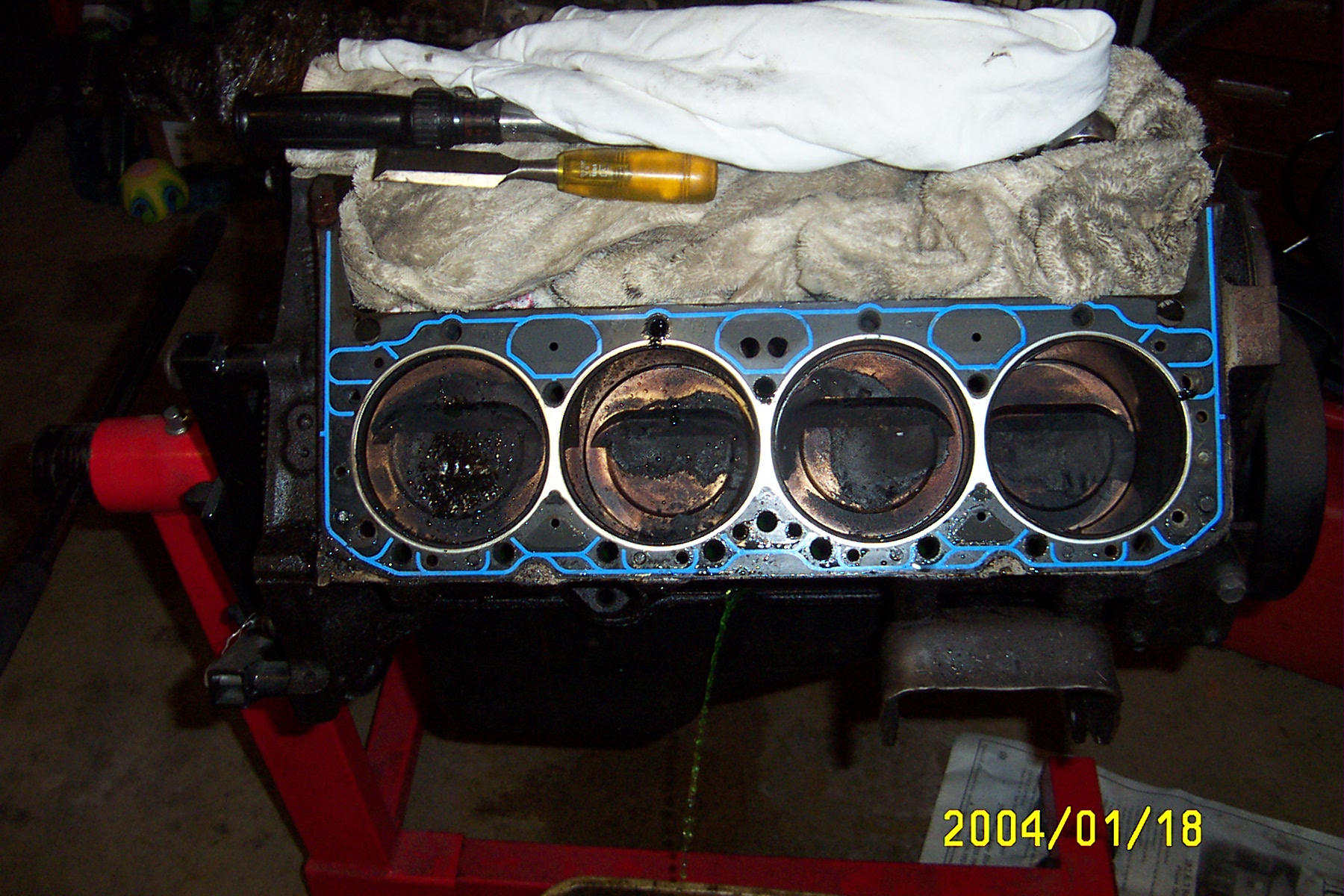

Pside_block1

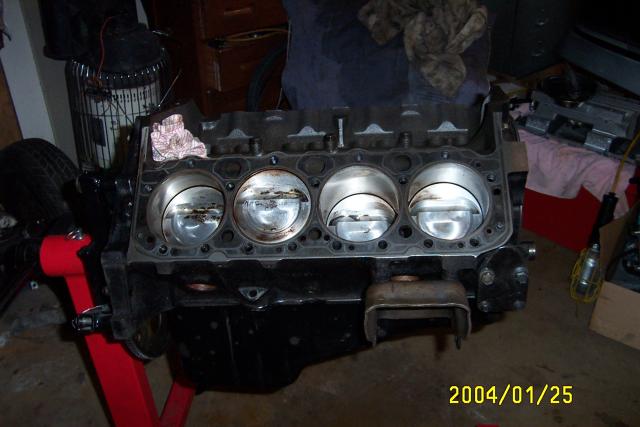

Pside_blockcleaned1

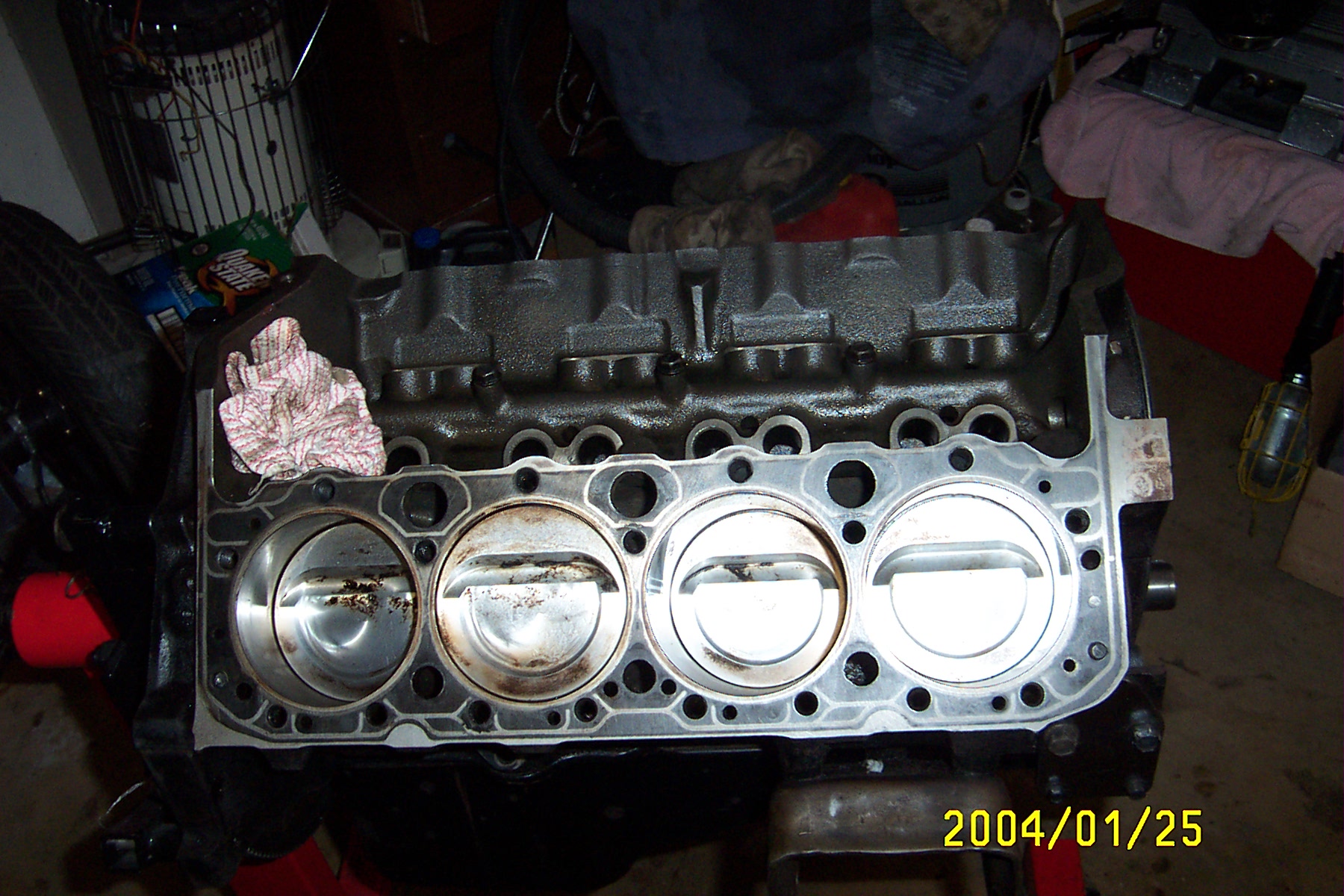

Pside_blockcleaned2

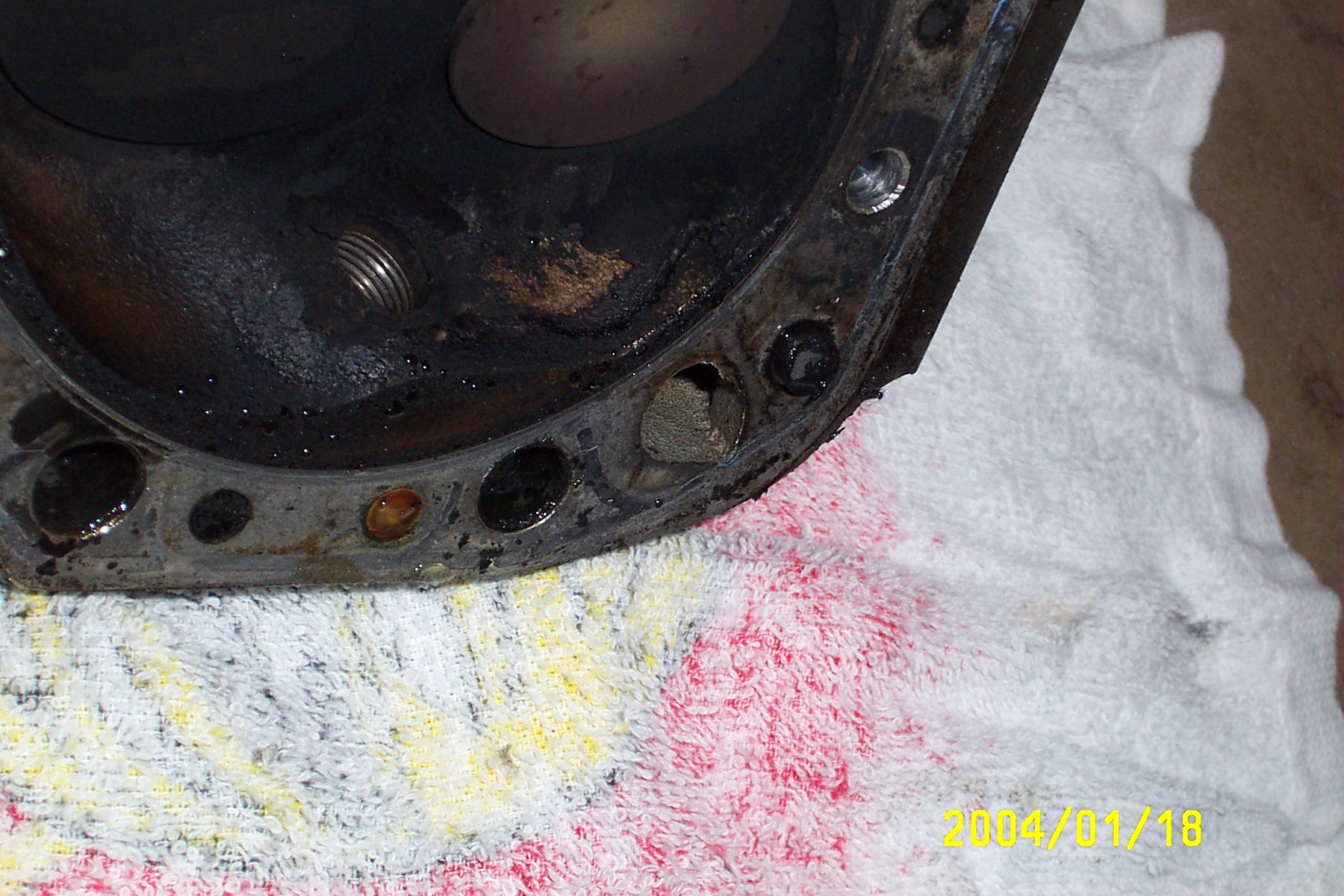

Pside_broken_pin1

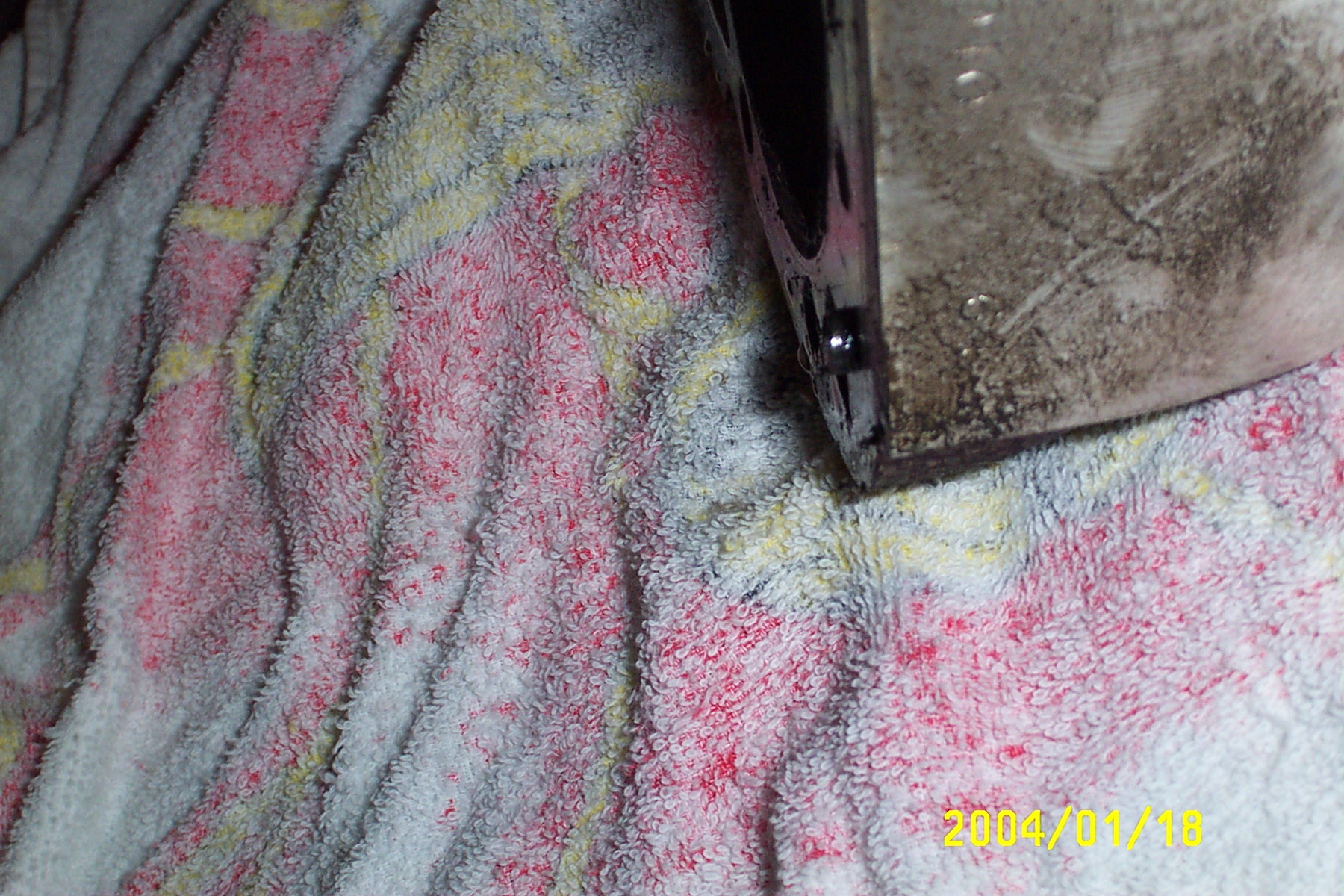

Pside_broken_pin2

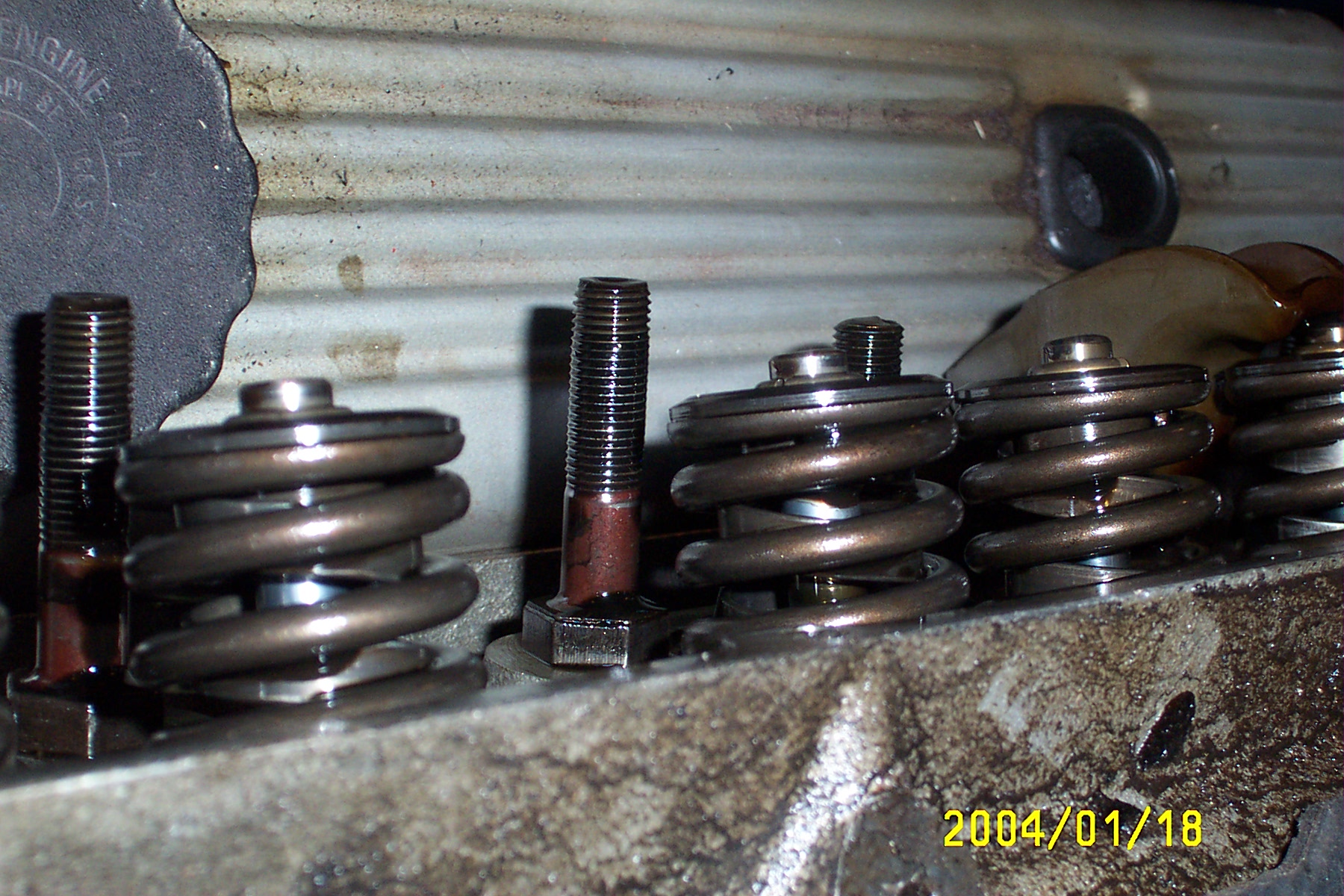

Pside_brokenstud1

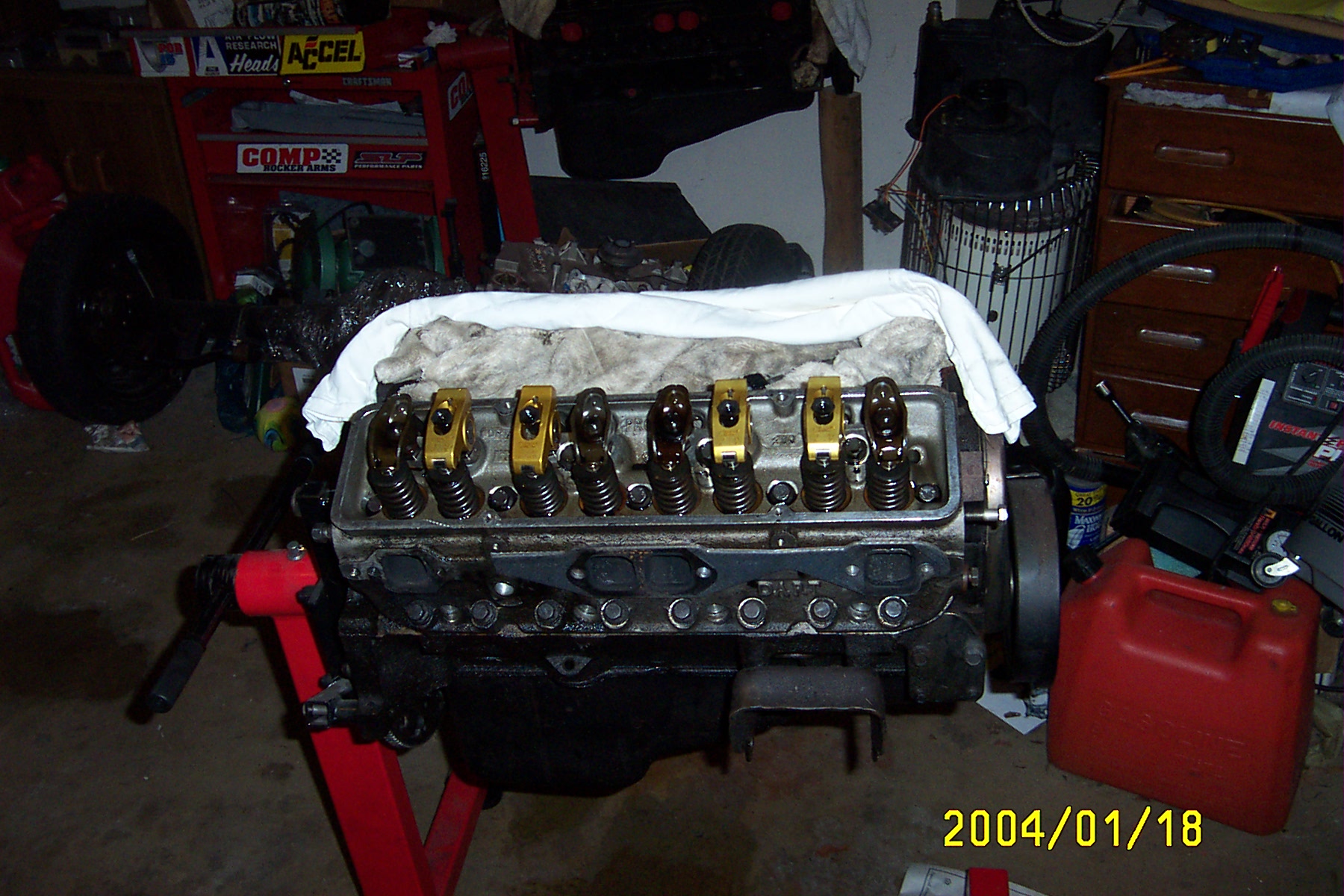

Pside_head1

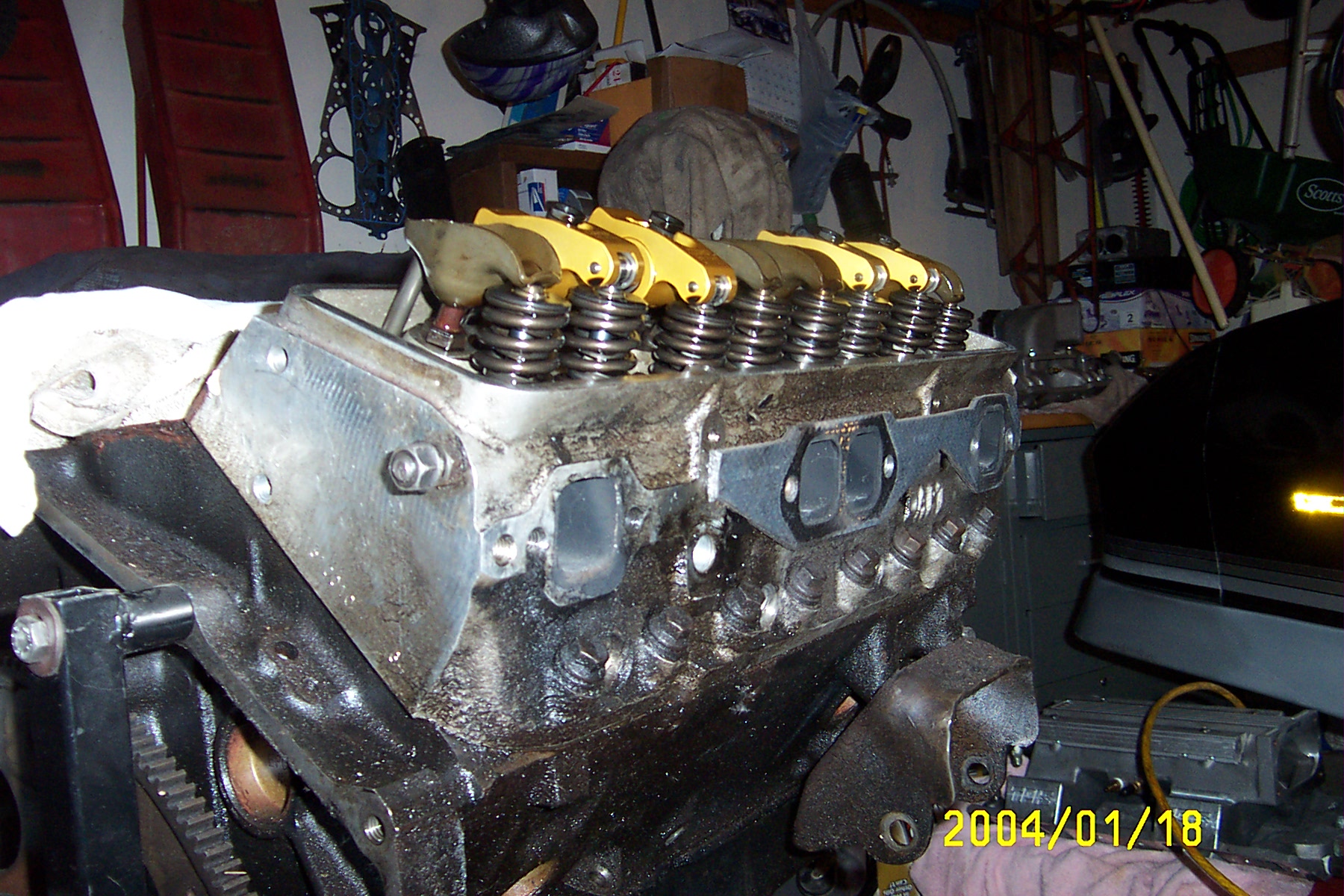

Pside_head2

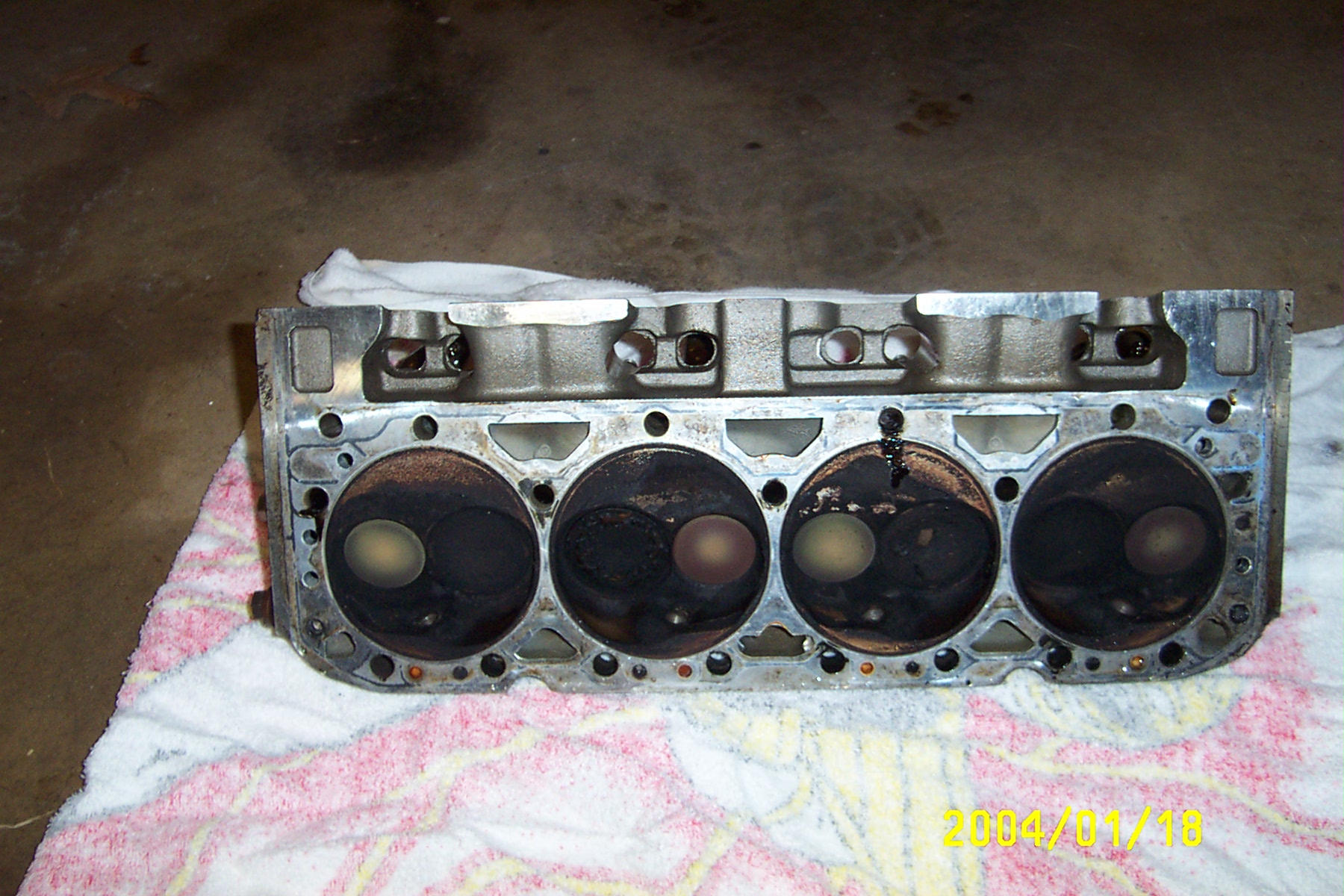

Pside_head3

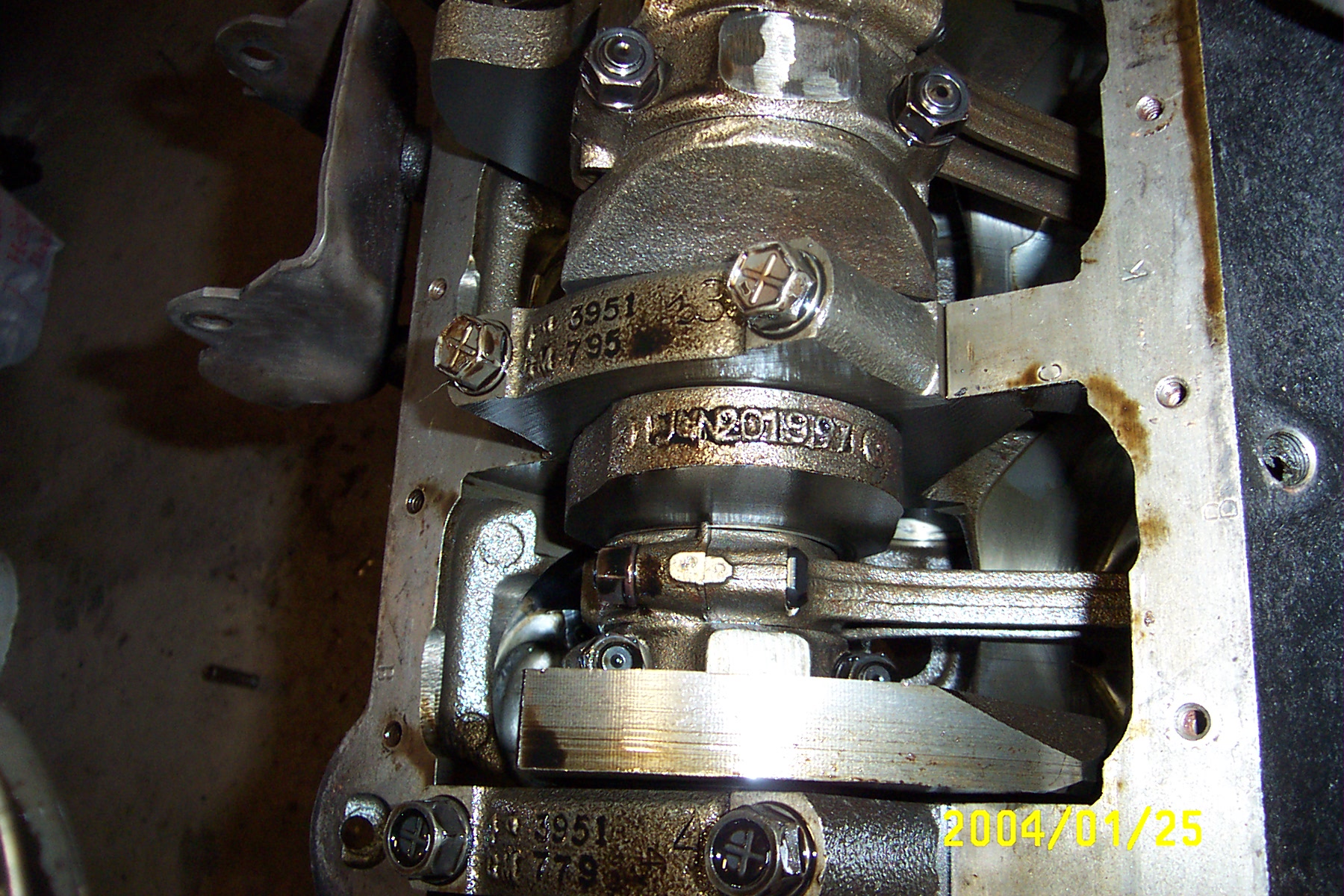

crank-castingdate

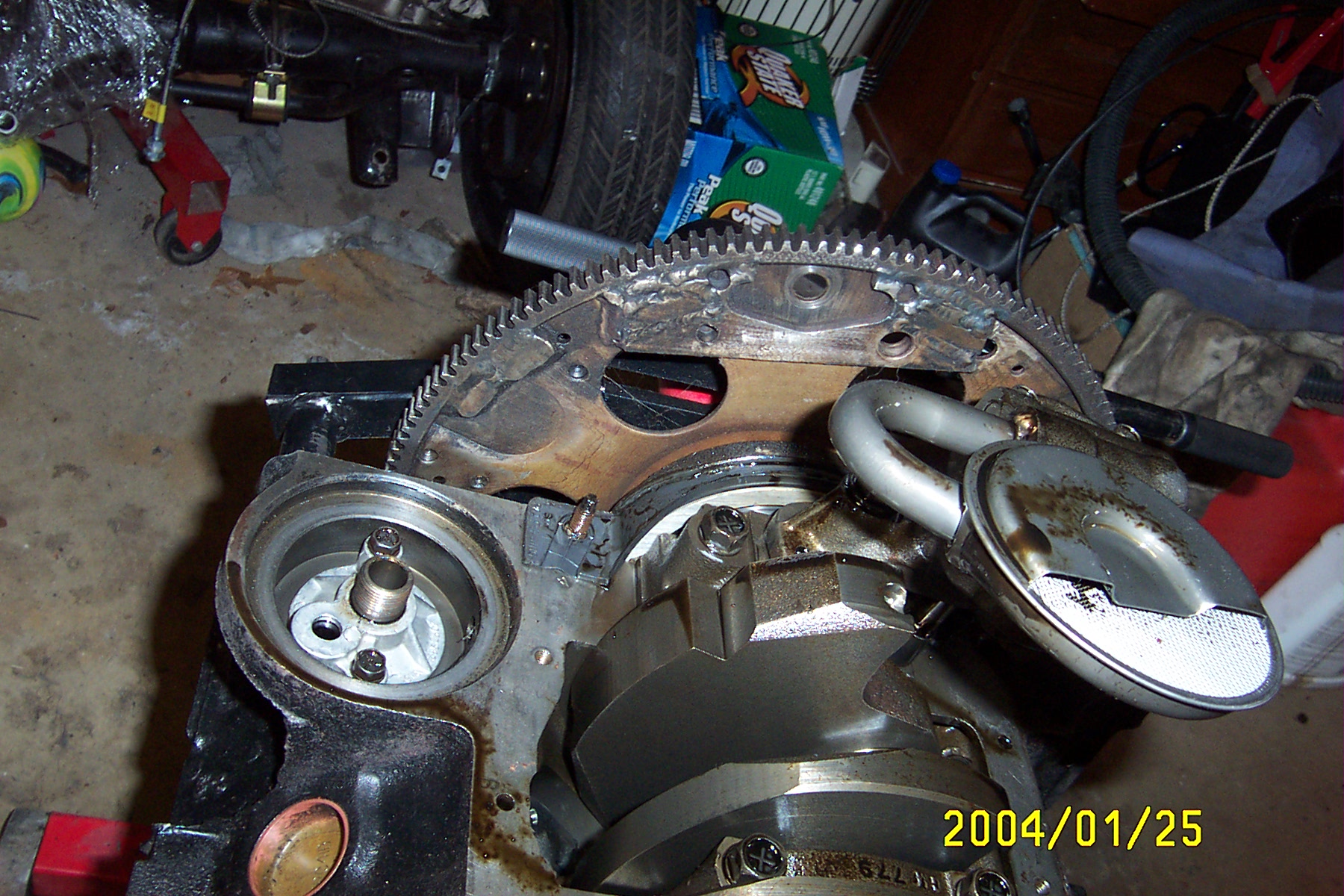

flexplate_weight

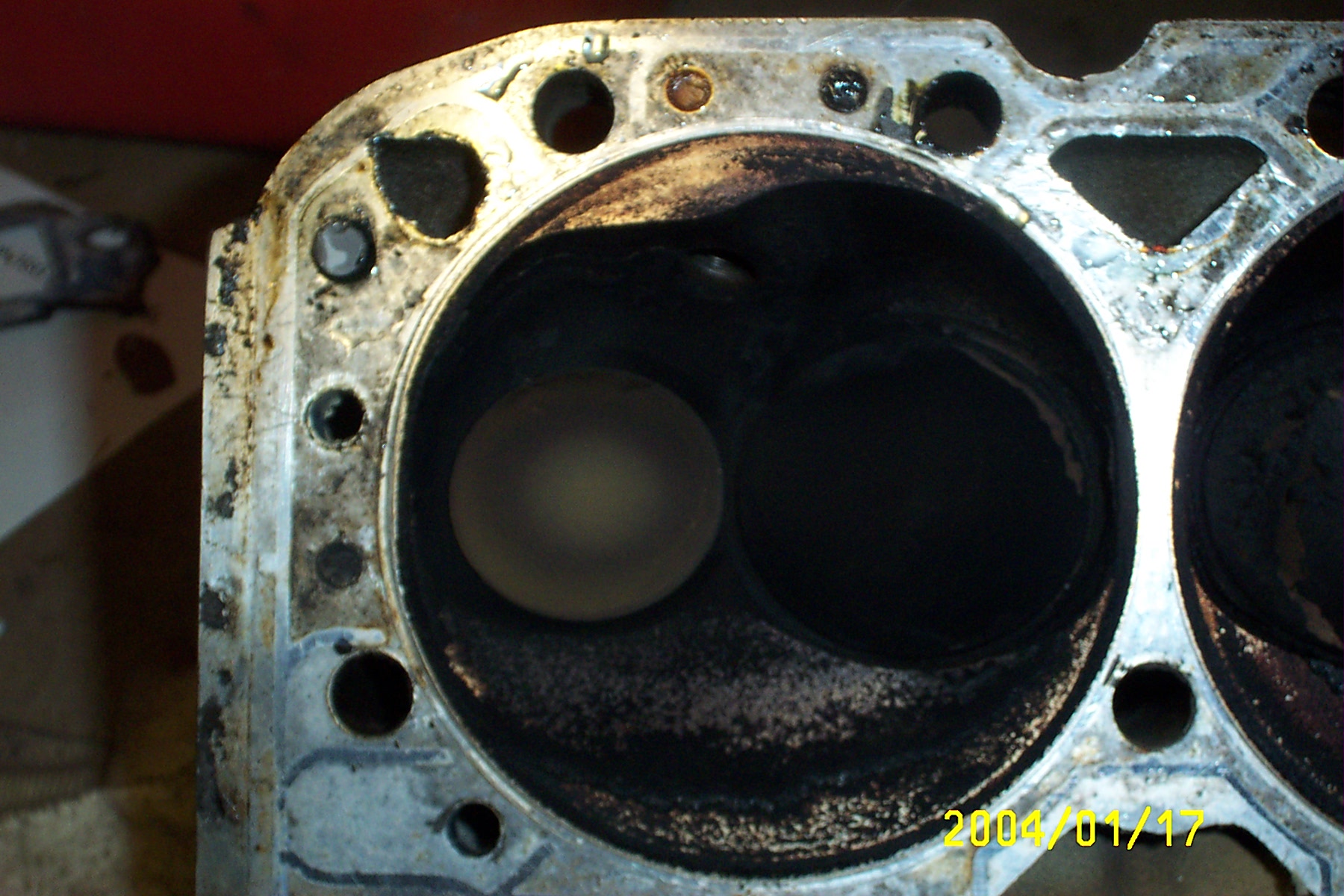

head_cyl1

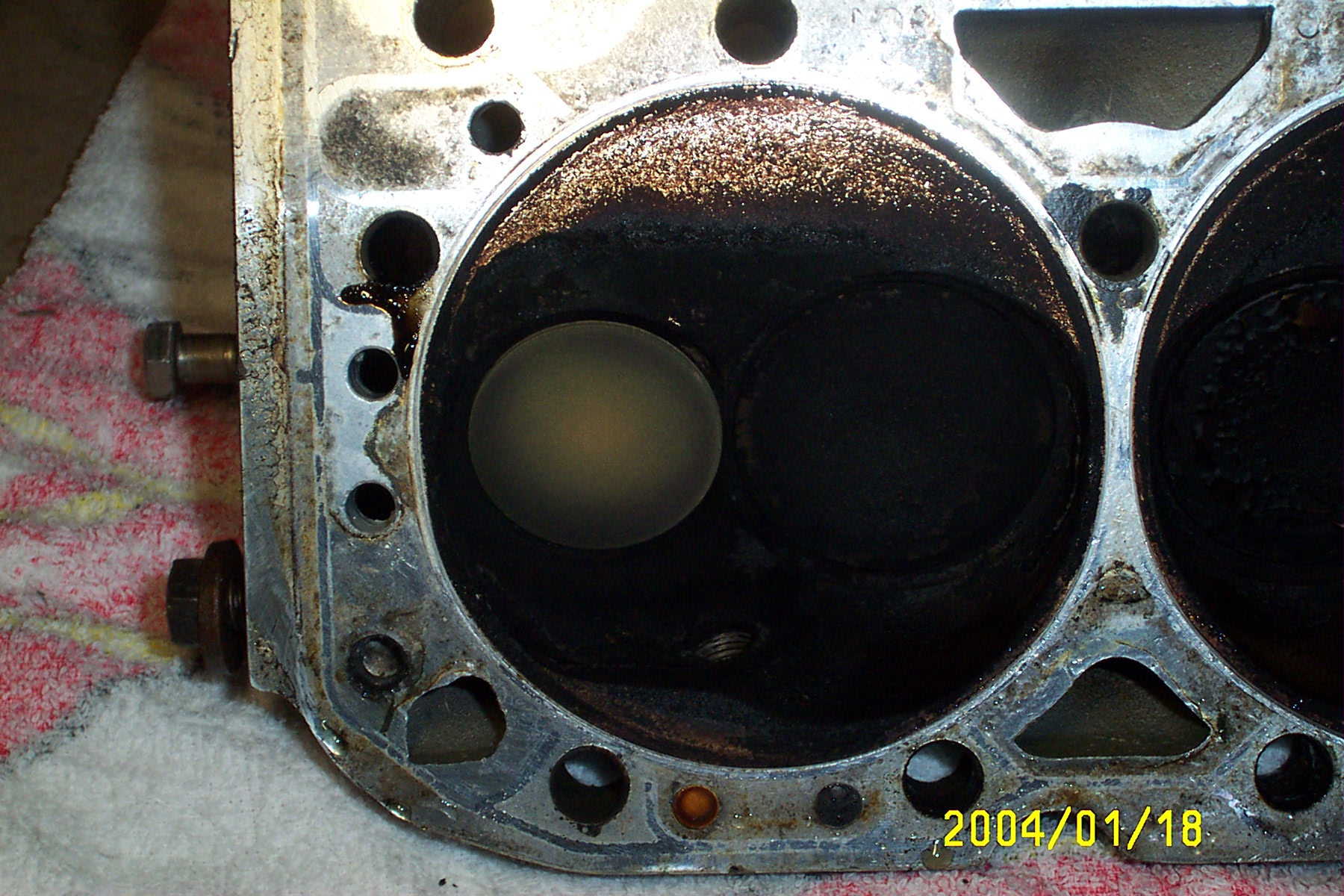

head_cyl2

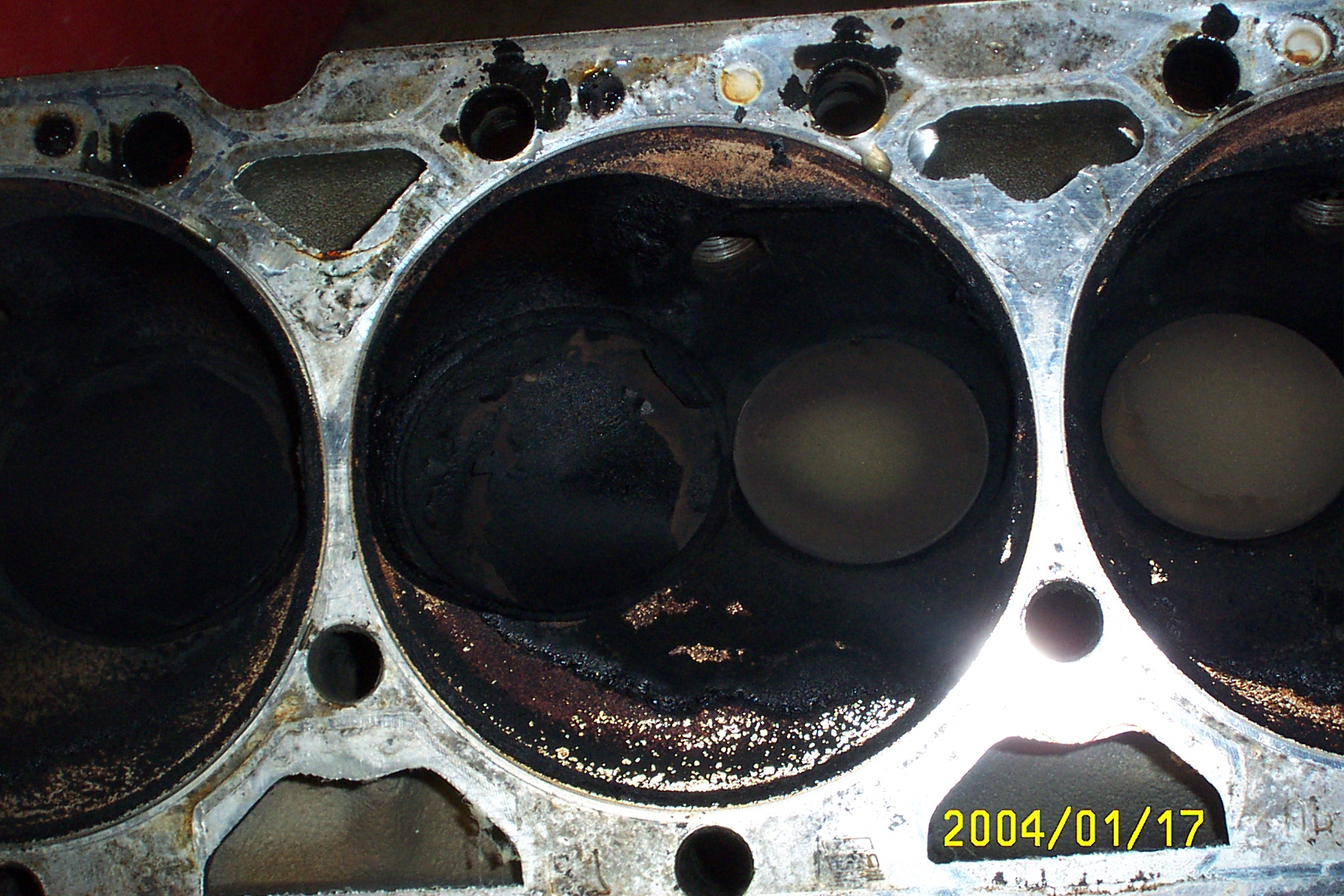

head_cyl3

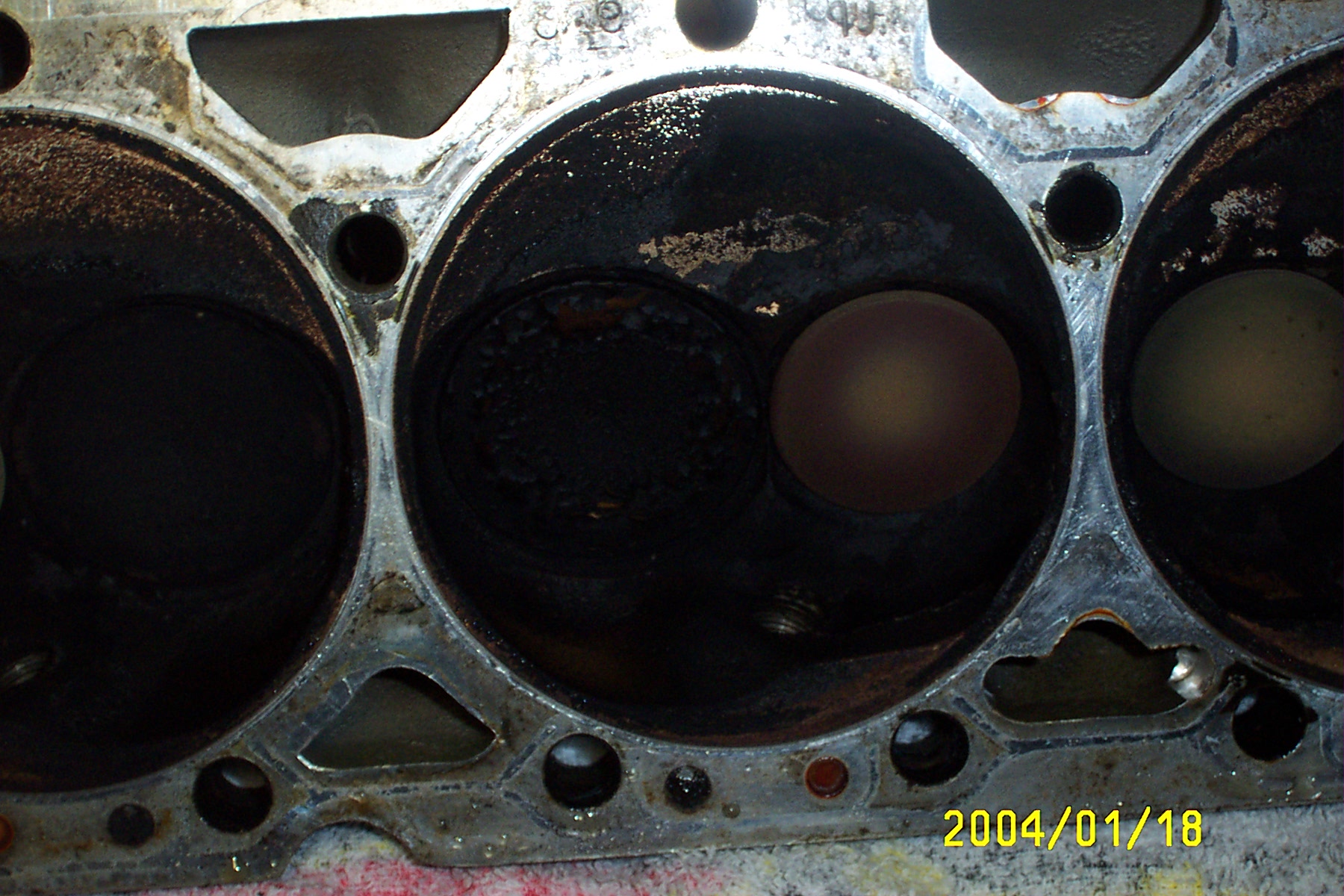

head_cyl4

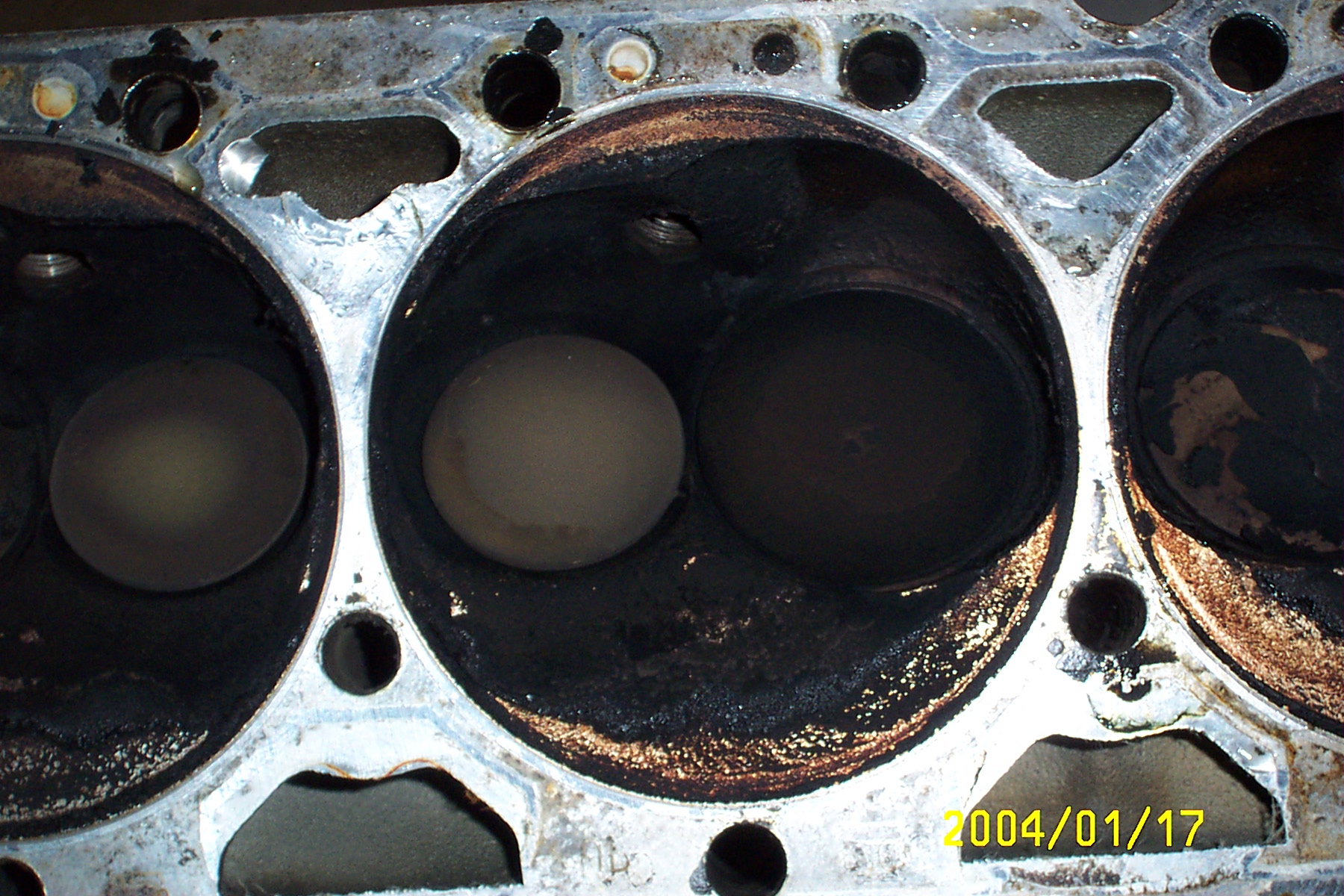

head_cyl5

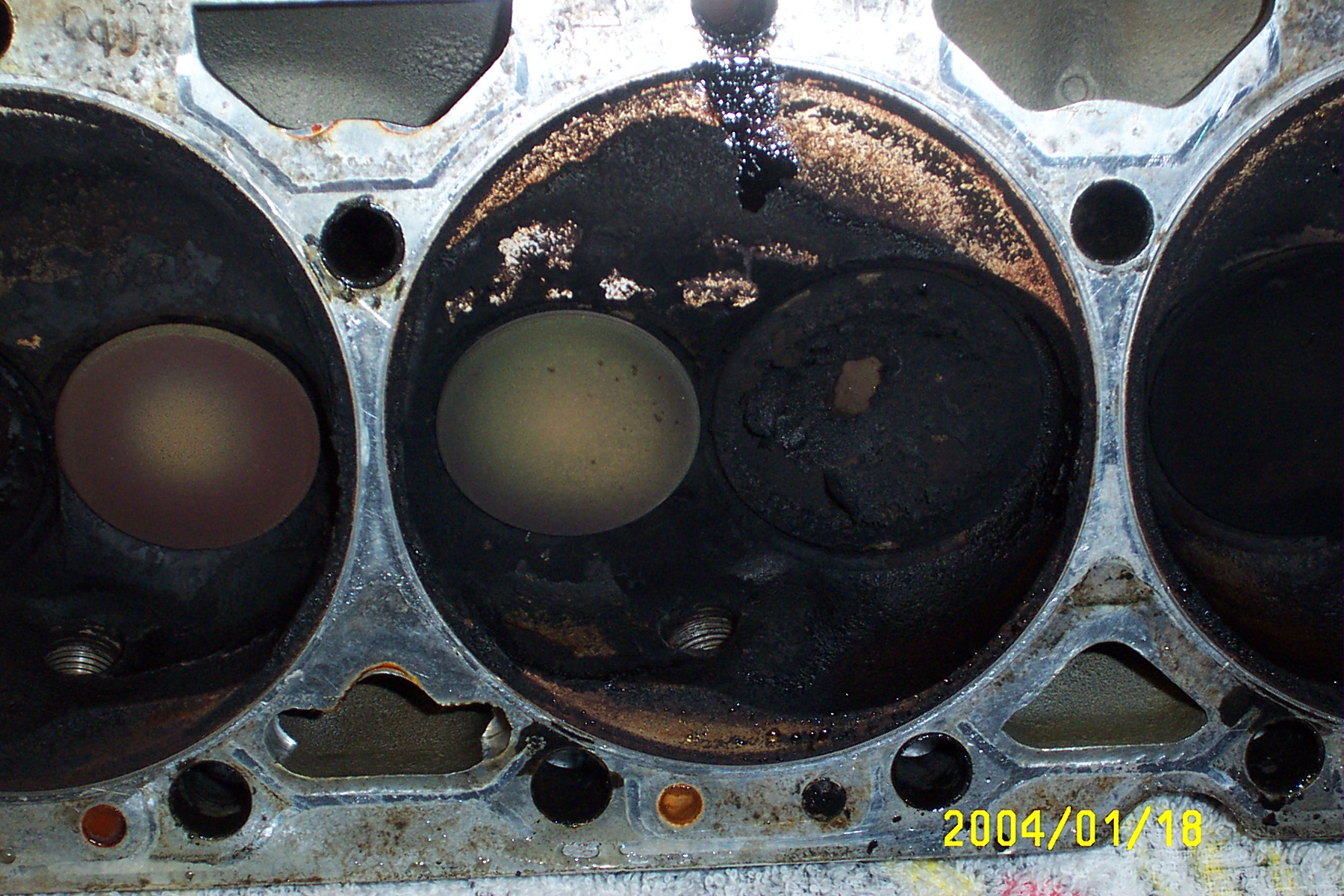

head_cyl6

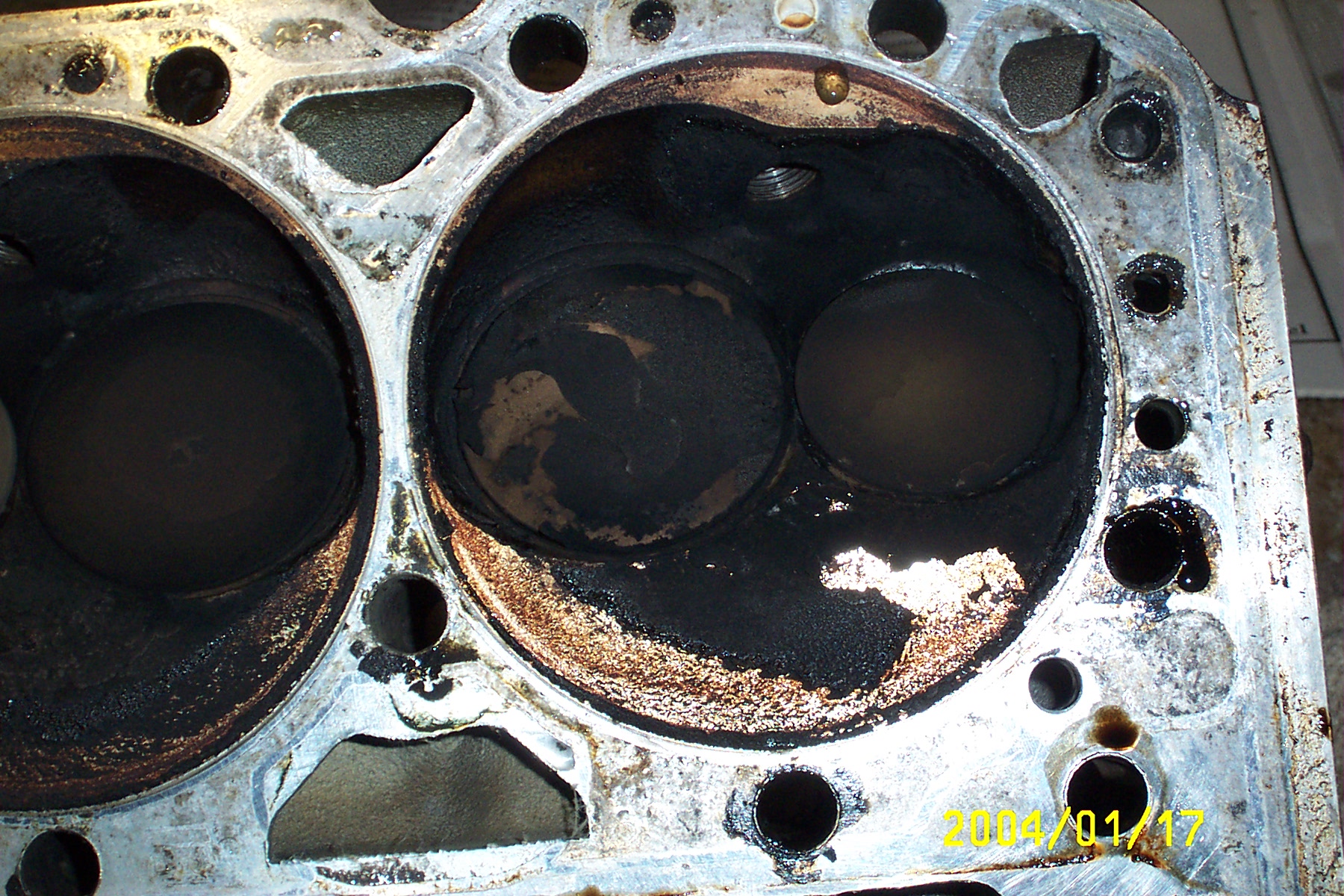

head_cyl7

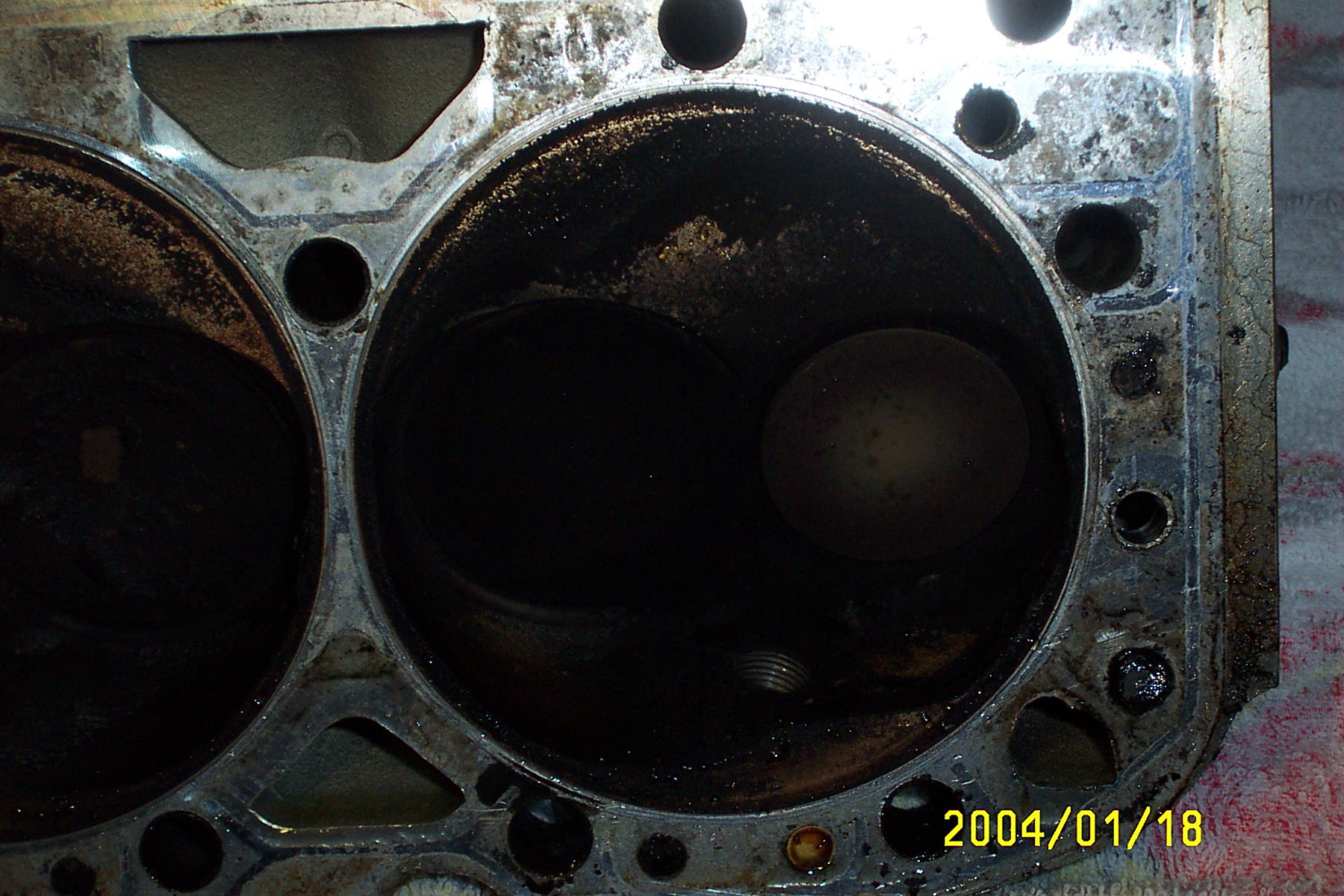

head_cyl8

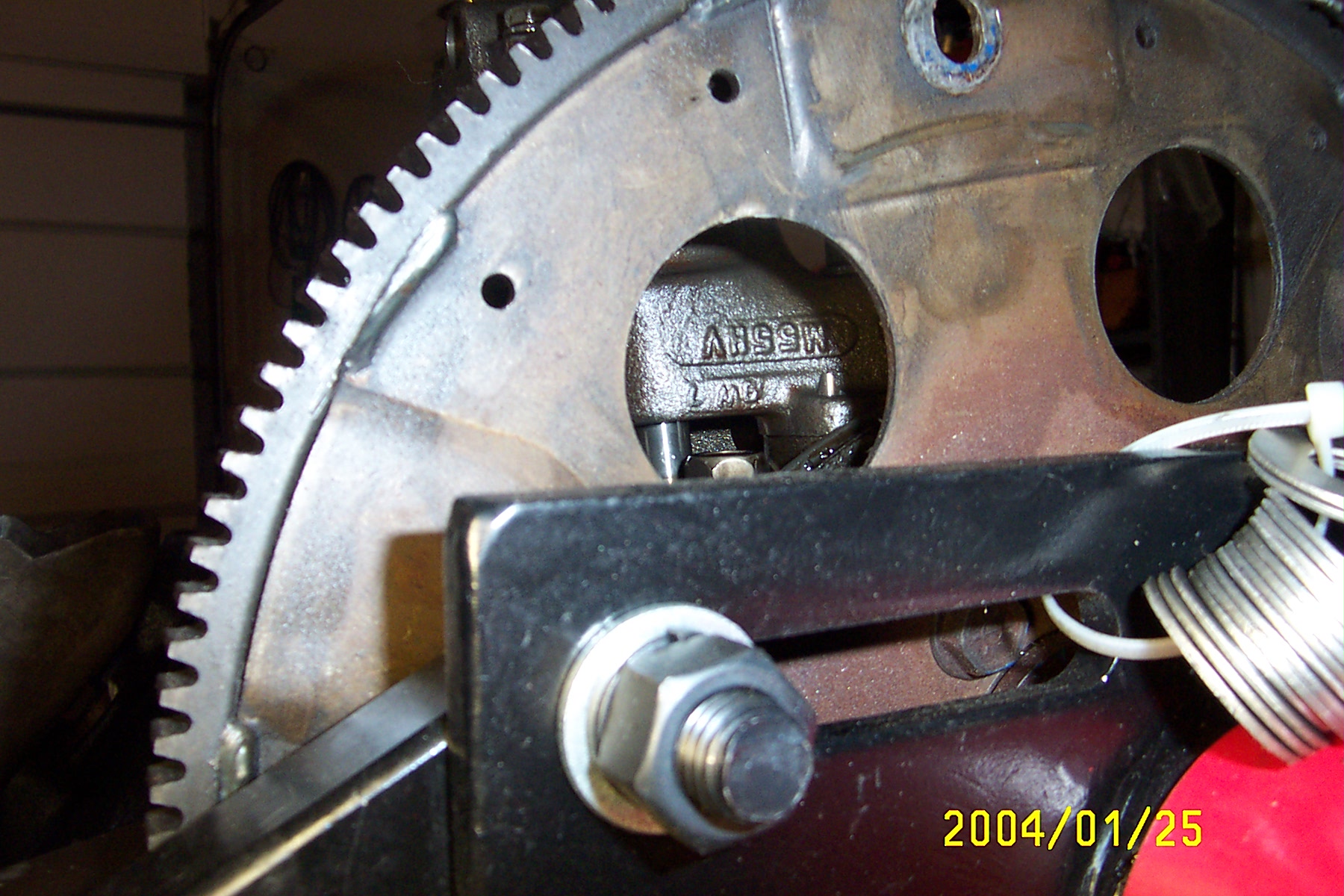

oilpump-partnum

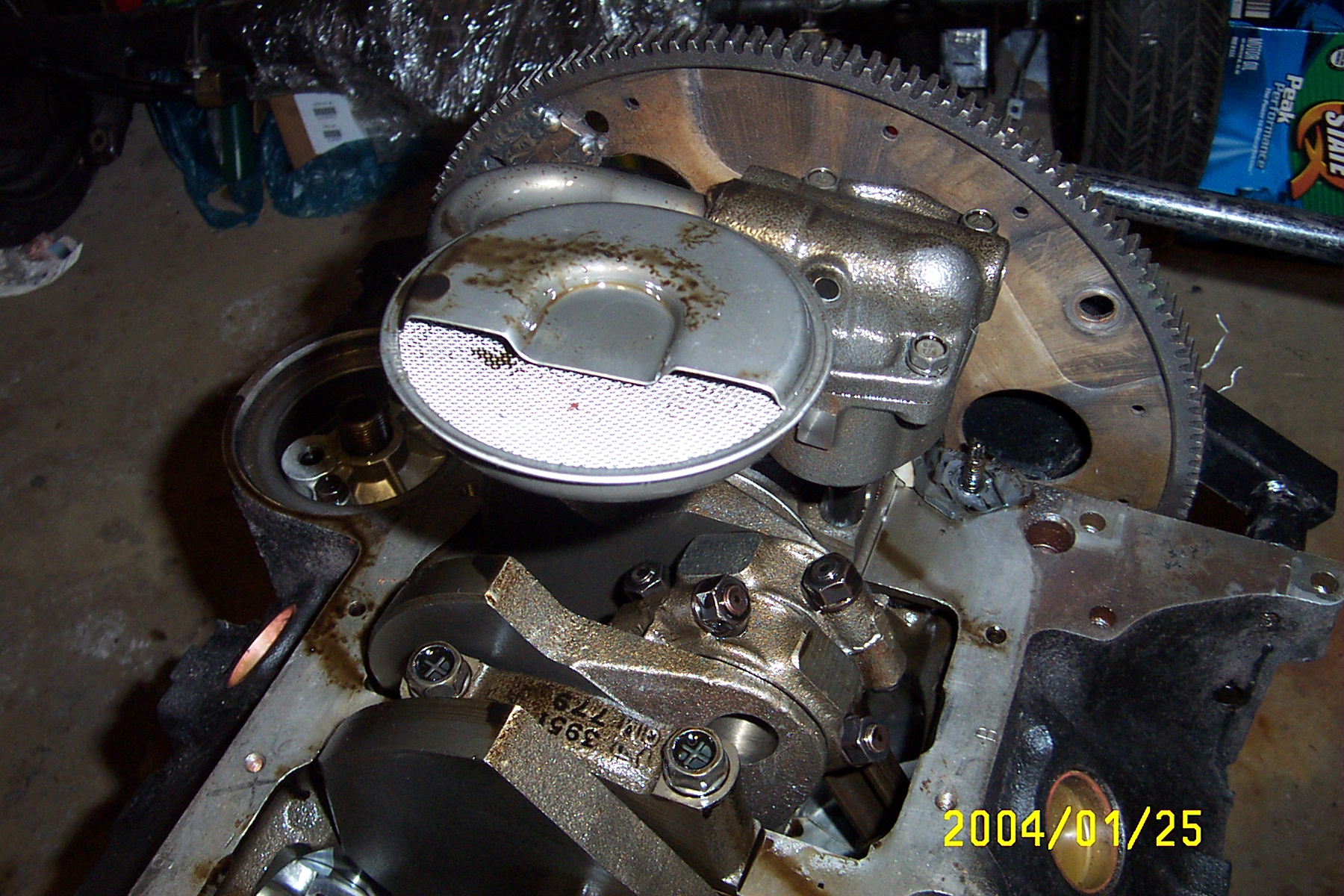

oilpump-screen1

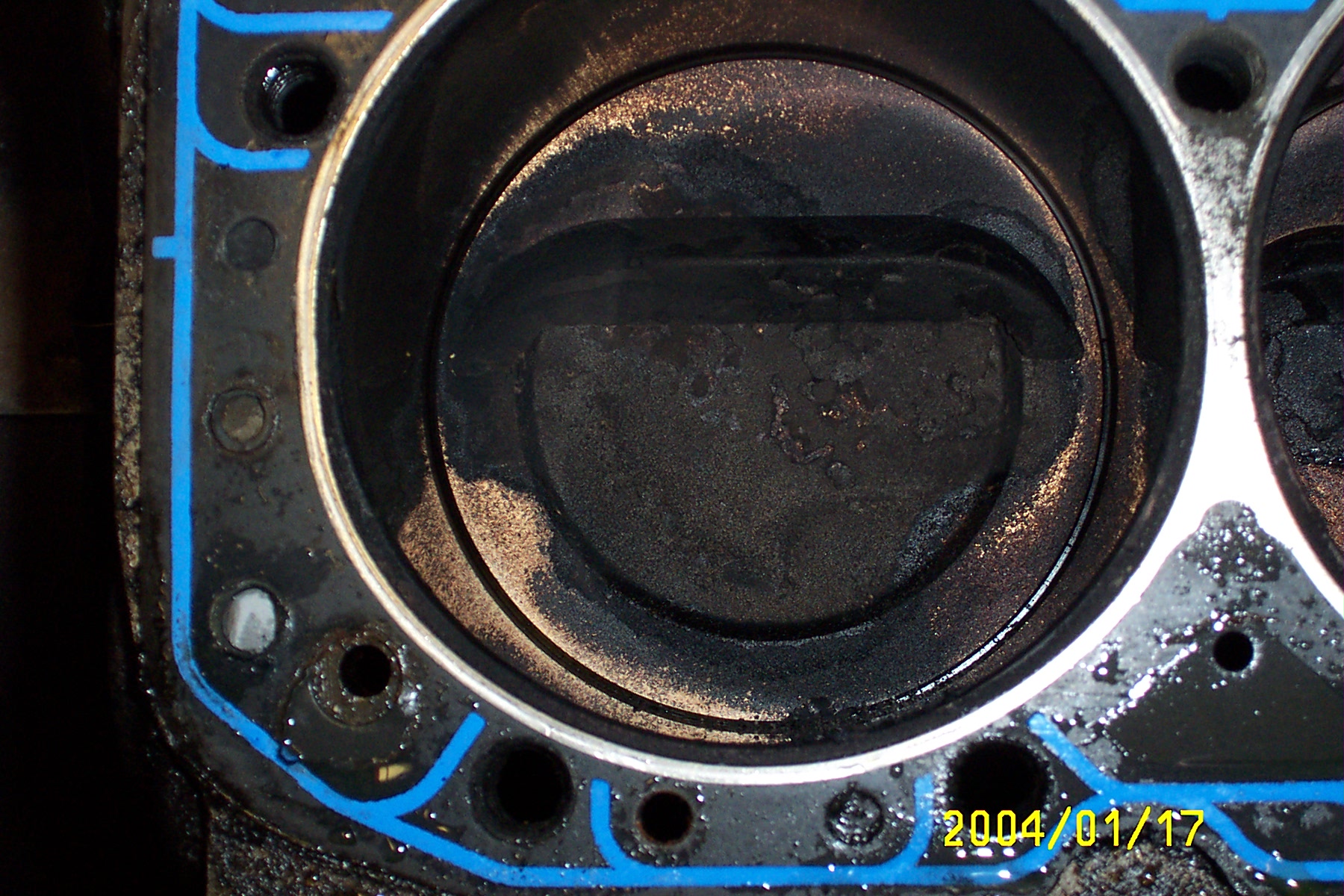

piston_cyl1

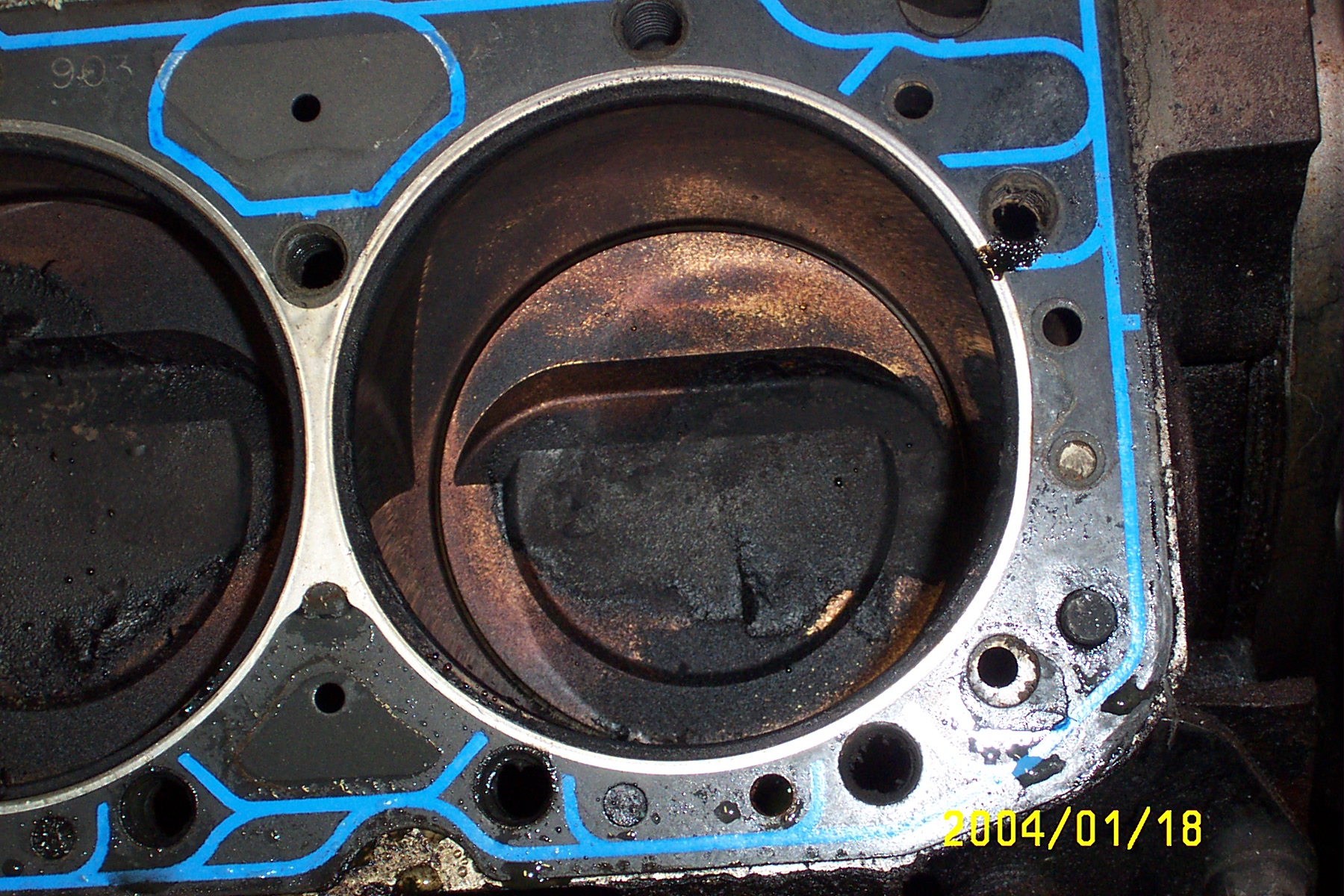

piston_cyl2

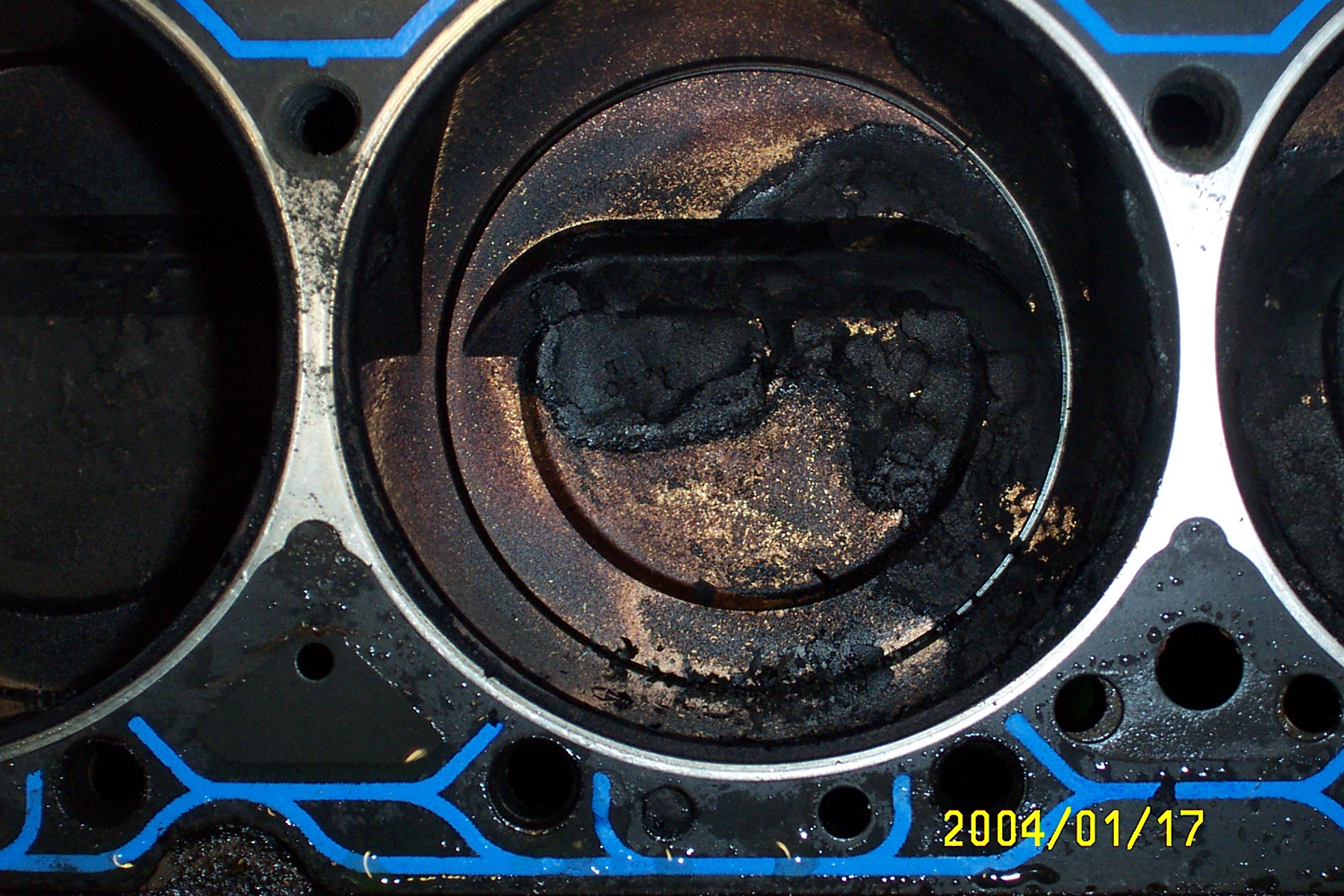

piston_cyl3

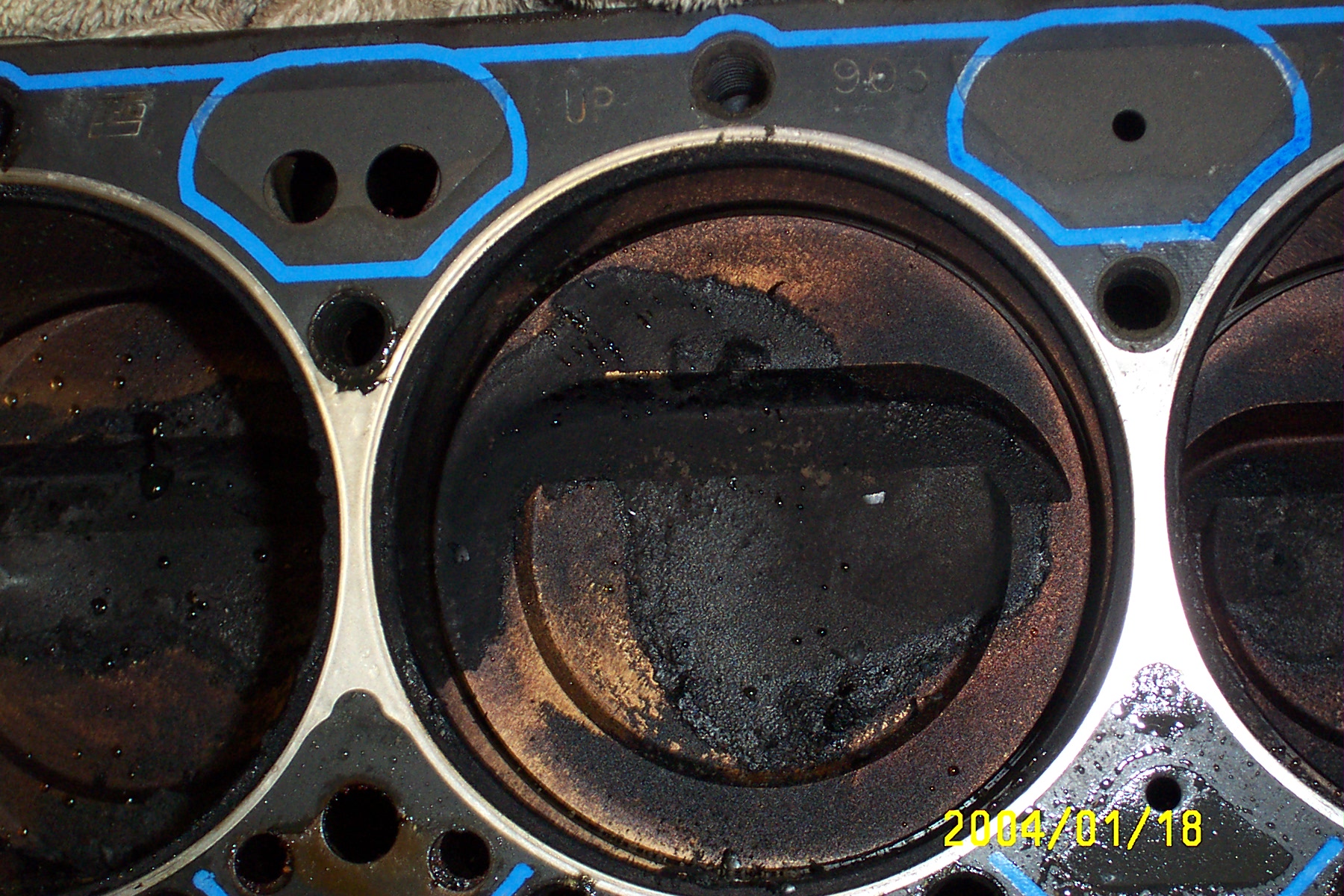

piston_cyl4

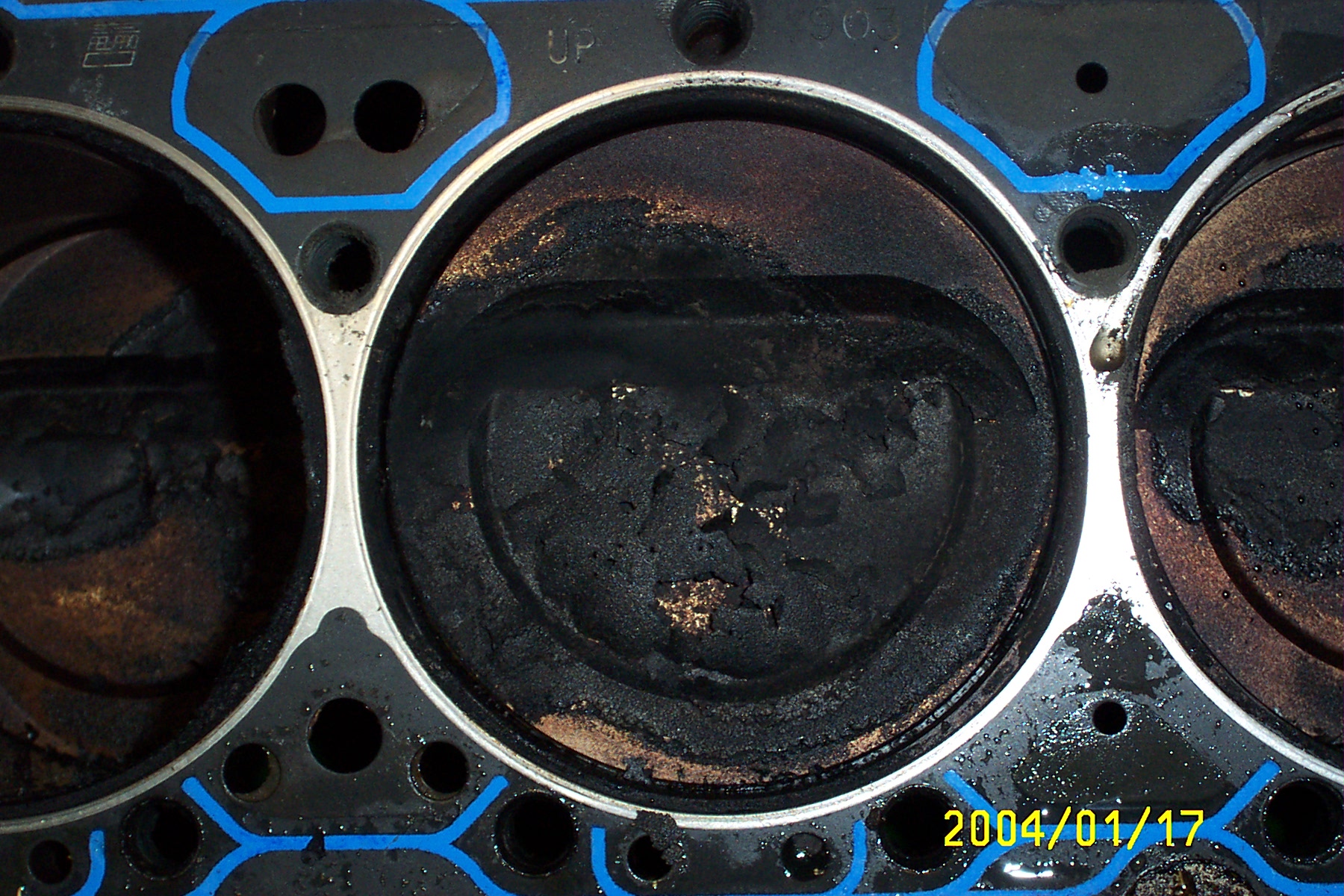

piston_cyl5

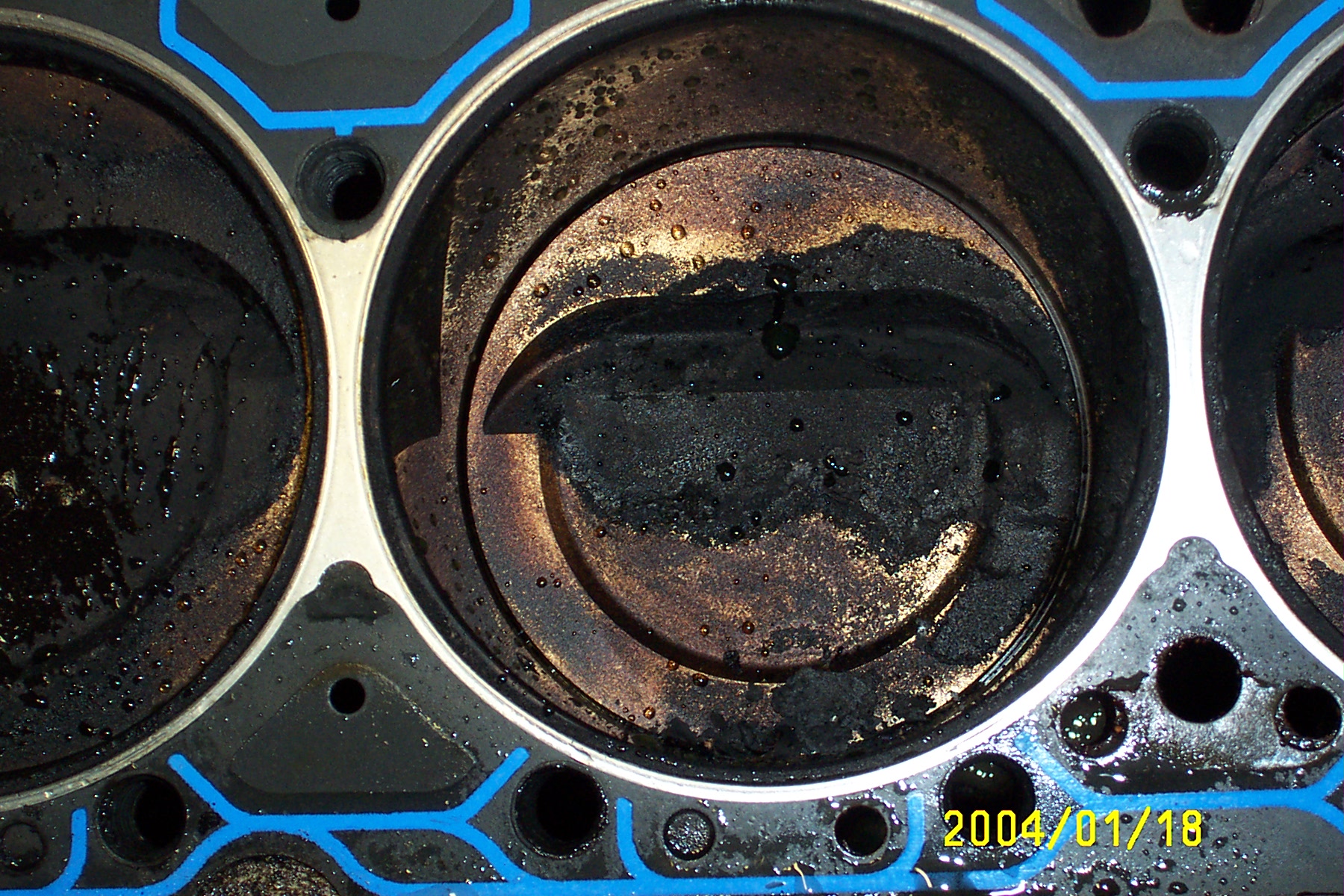

piston_cyl6

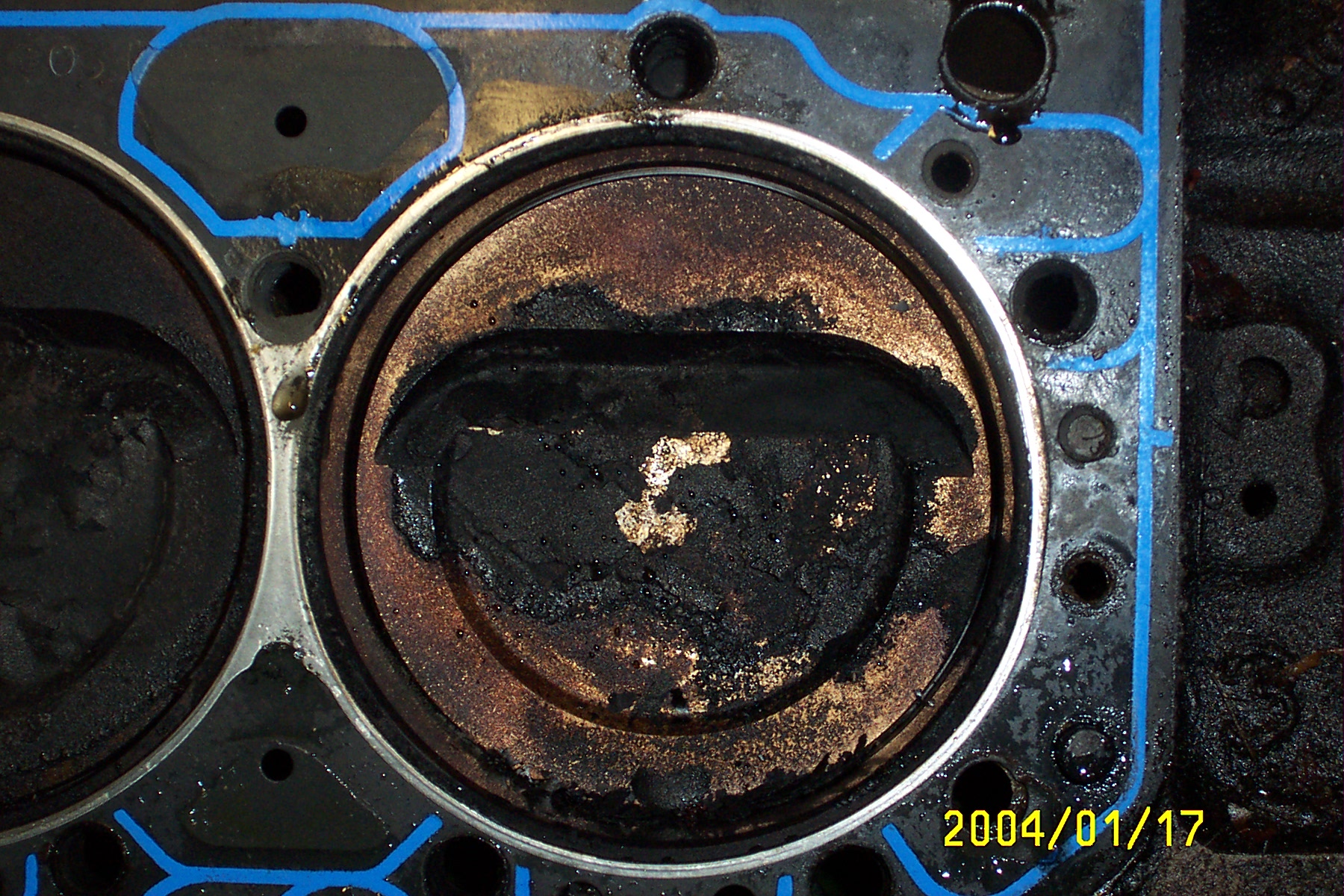

piston_cyl7

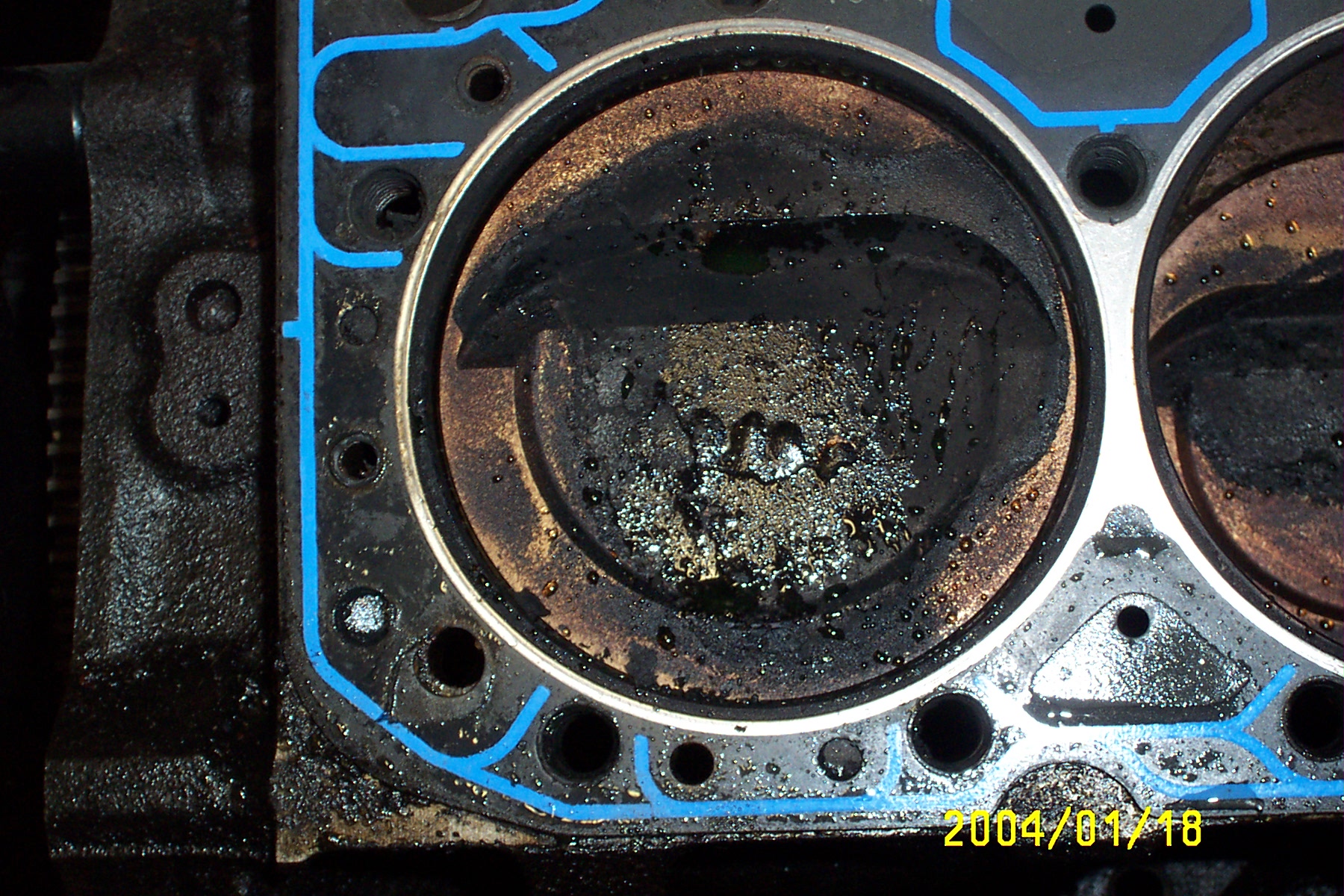

piston_cyl8

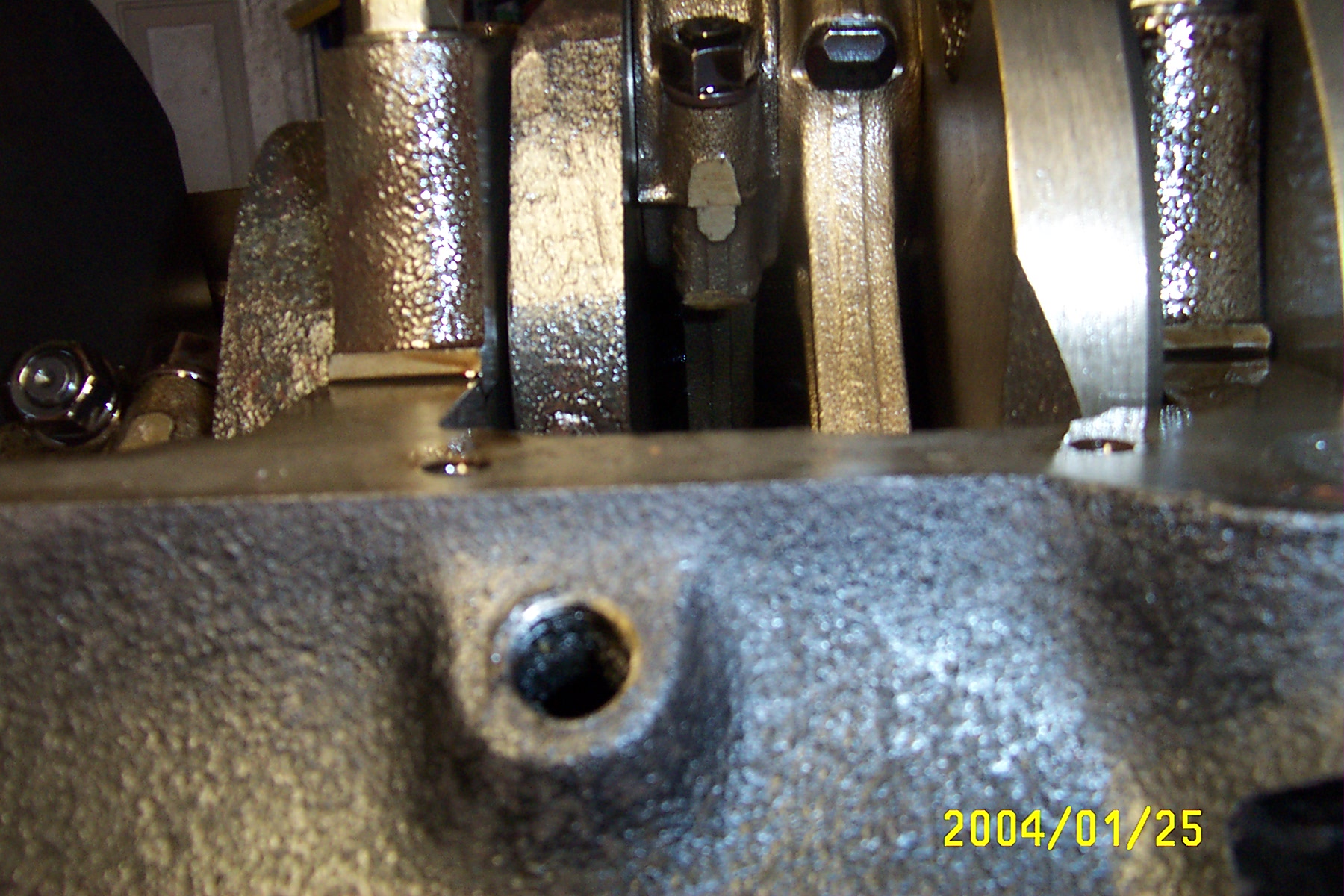

rodbolt_clearanced1

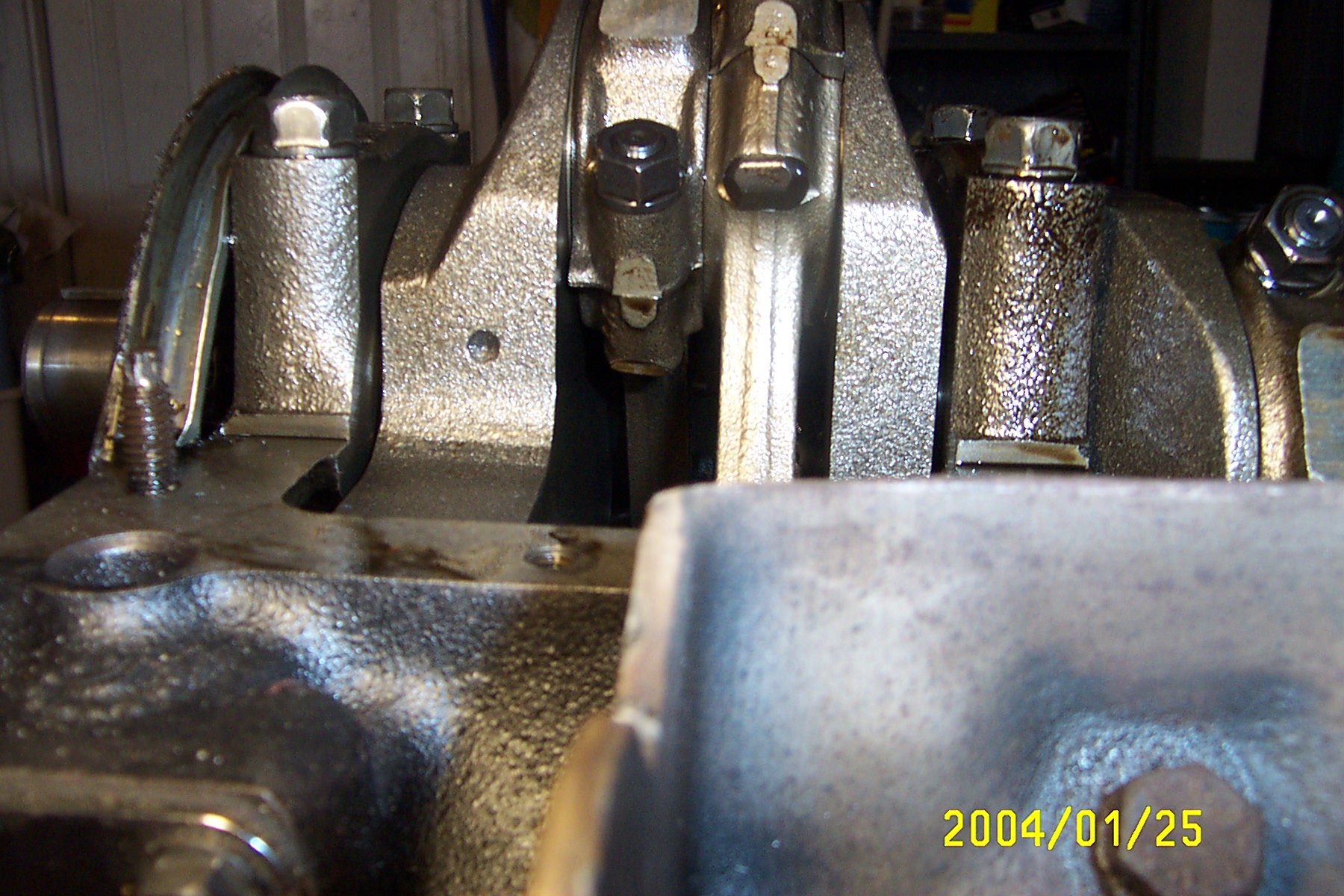

rodbolt_clearanced2

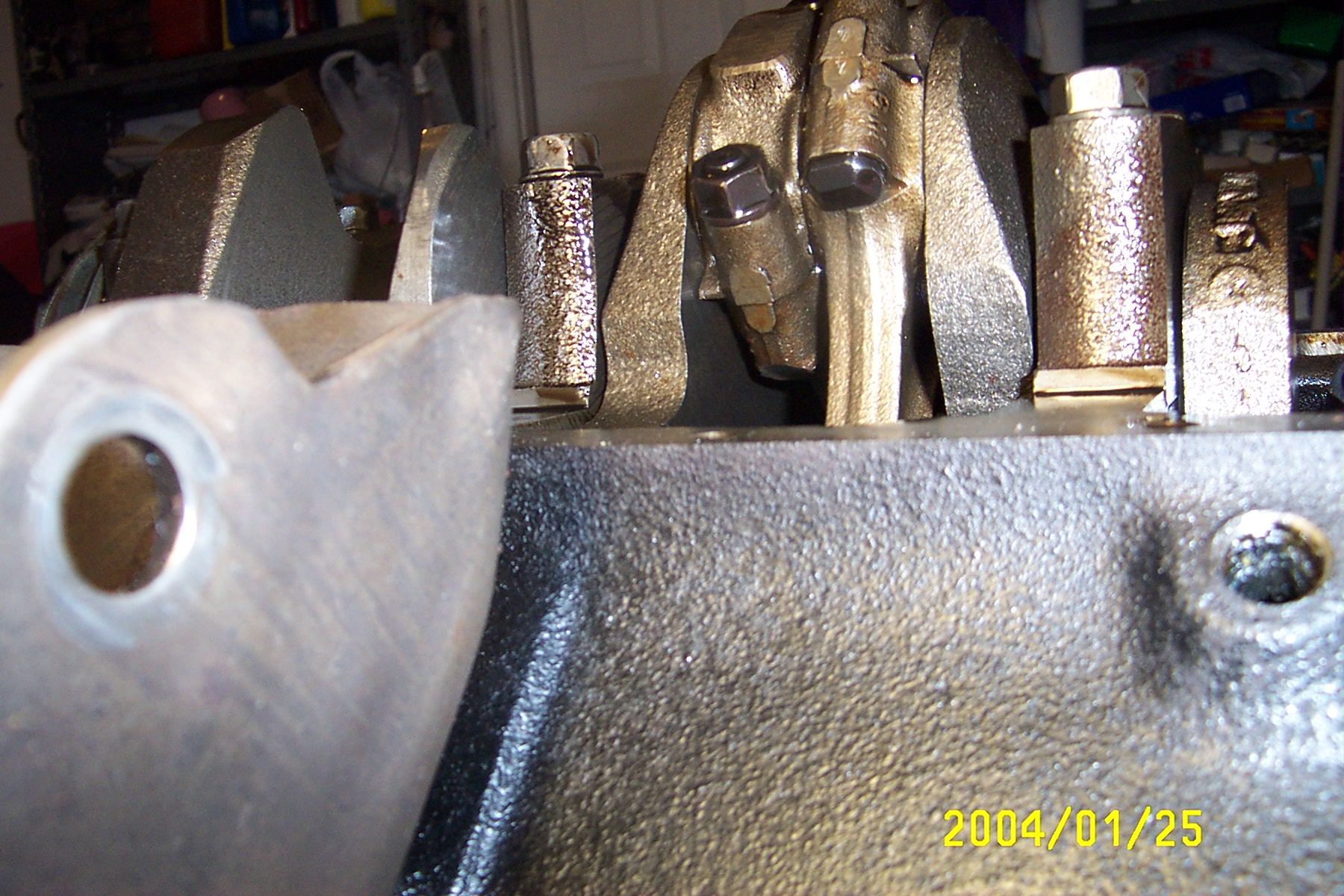

rodbolt_clearanced3
